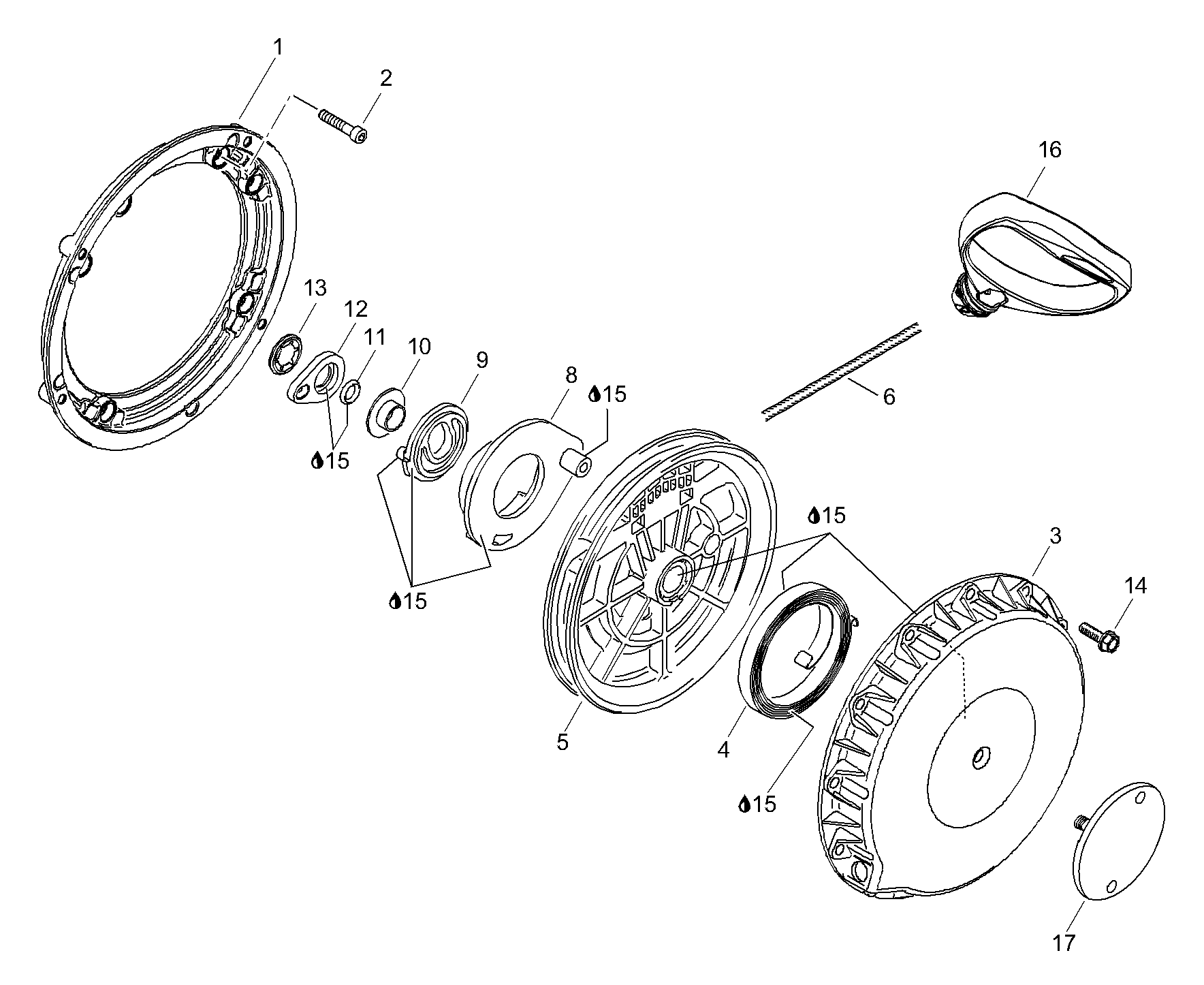

04- Rewind Starter для BRP Lynx Ranger LCE - 2003
-
№АртикулНазвание
-
1420810865 Connecting flangeConnecting flange
-
2420241236 Allen screw M6x16Allen screw M6x16
-
3420889762 Rewind starter assy. Includes items 3 thru 13Rewind starter assy. Includes items 3 thru 13
-
3420811401 Starter housing assyStarter housing assy
-
4420939115 Spring assySpring assy
-
5420852286 Rope sheaveRope sheave
-
6420852492 Starter rope (2.2 m)Starter rope (2.2 m)
-
6412500100 Starter rope (30 m)Starter rope (30 m)
-
8420852297 PawlPawl
-
9420852305 Pawl lockPawl lock
-
10420847925 SleeveSleeve
-
11420250400 O-ringO-ring
-
12420852520 Lock leverLock lever
-
13420845560 Locking elementLocking element
-
14420941256 Screw M6x20Screw M6x20
-
15420897061 Silicon compoundSilicon compound
-
16572084400 HandleHandle
