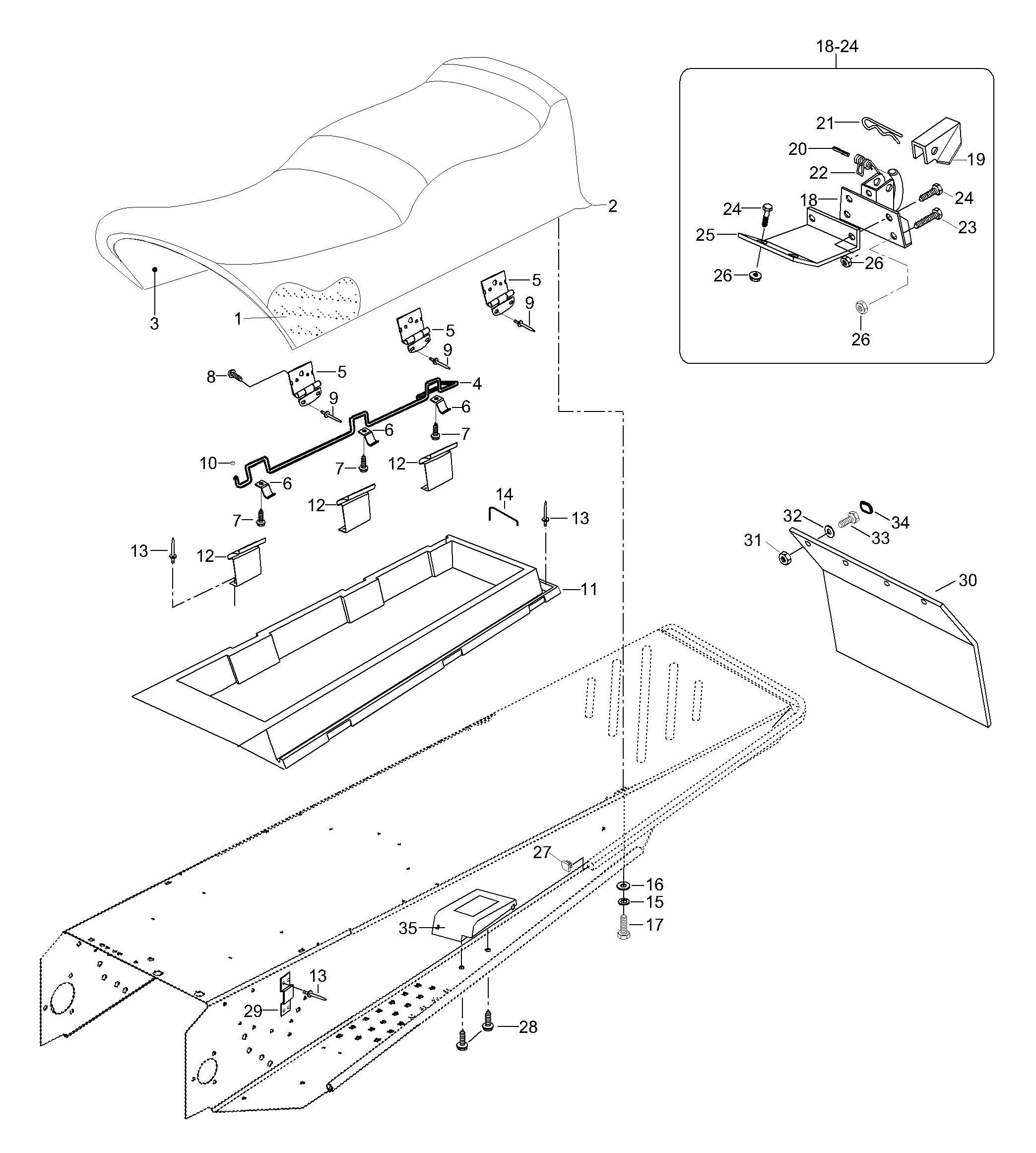

09- Body для BRP Lynx Ranger LCE - 2003
-
№АртикулНазвание
-
15145106 Seat foamSeat foam
-
2605148620 Seat coverSeat cover
-
35144962 Seat baseSeat base
-
45245337 Locking shaftLocking shaft
-
55346518 HingeHinge
-
65446102 Locking plateLocking plate
-
740888 Screw 4,2x19Screw 4,2x19
-
840887 Screw 4,2x9,5Screw 4,2x9,5
-
936083 RivetRivet
-
1028019 PlugPlug
-
115144963 Seat housingSeat housing
-
125345195 Locking deviceLocking device
-
1336489 RivetRivet
-
145441849 Stopper HookStopper Hook
-
1520014 Spring washerSpring washer
-
1620010 WasherWasher
-
1740015 Screw M8x30Screw M8x30
-
185344156 Hitch asst. Includes items 18 thru 24Hitch asst. Includes items 18 thru 24
-
185344208 HitchHitch
-
195440767 LockLock
-
2041012 Spring PinSpring Pin
-
2141029 Needle PinNeedle Pin
-
22545693 SpringSpring
-
2340008 Screw M8x45Screw M8x45
-
2440037 Screw M8x25Screw M8x25
-
25605349063 Support plateSupport plate
-
2633201 Nut elastic M8Nut elastic M8
-
2728232 PlugPlug
-
2840870 ScrewScrew
-
295447908 BracketBracket
-
305246860 Snow guardSnow guard
-
3133200 Elastic flanged nut M6Elastic flanged nut M6
-
3220009 WasherWasher
-
3340078 Screw M6x22Screw M6x22
-
34415073300 CapCap
-
35572088700 R.H. foot restR.H. foot rest
-
35572088800 L.H. foot restL.H. foot rest
