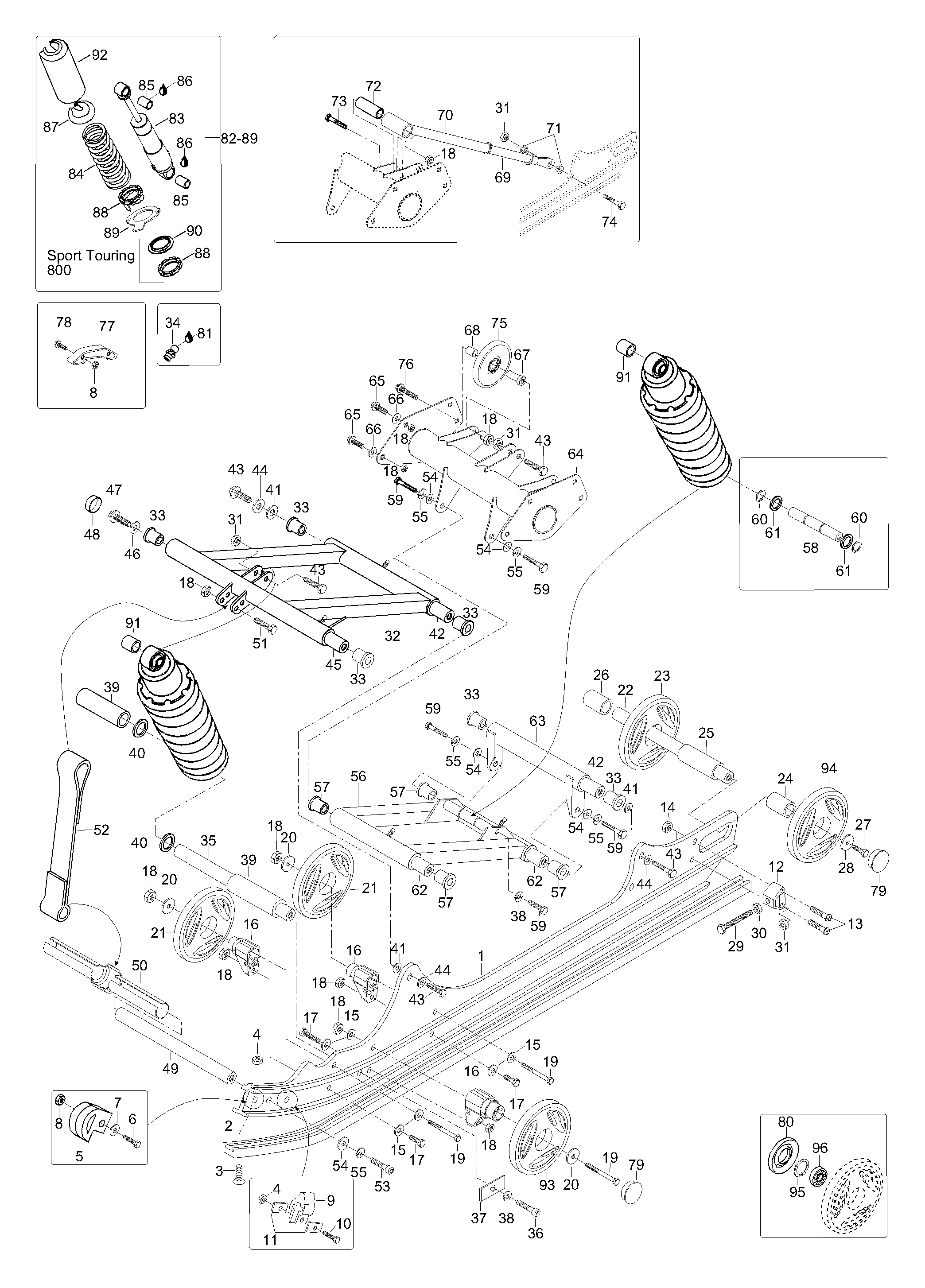

08- Rear Suspension для BRP Lynx Sport Touring 600 - 2003
-
№АртикулНазвание
-
15246388 RunnerRunner
-
25347724 Runner shoeRunner shoe
-
340059 Allen screw M6x60Allen screw M6x60
-
433010 Nut elastic M6Nut elastic M6
-
5534578 Runner protectorRunner protector
-
640031 Screw M6x25Screw M6x25
-
720003 WasherWasher
-
833200 Nut M6Nut M6
-
95442328 Rubber StopperRubber Stopper
-
1040032 Screw M6x30Screw M6x30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340392 Screw M8x45Screw M8x45
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
1520104 Washer, hardenedWasher, hardened
-
165447079 SupportSupport
-
1740037 Screw M8x25Screw M8x25
-
1833011 Nut elastic M8Nut elastic M8
-
1940089 Screw M8x75Screw M8x75
-
20503183100 Washer, hardenedWasher, hardened
-
21503188997 Wheel blackWheel black
-
225341511 Rear shaftRear shaft
-
23503189478 Wheel blackWheel black
-
245441512 SleeveSleeve
-
255441513 SleeveSleeve
-
265444099 SleeveSleeve
-
27250000019 Screw M10x35Screw M10x35
-
28503183300 Washer, hardenedWasher, hardened
-
2940239 Screw M10x100Screw M10x100
-
3033004 Nut M10Nut M10
-
3133012 Nut elastic M10Nut elastic M10
-
325145588 Welded front armWelded front arm
-
3331083 CushionCushion
-
3434011 Crease nippleCrease nipple
-
355347633 Shaft, shockShaft, shock
-
3640536 Allen screw M10x45Allen screw M10x45
-
375447940 Support plateSupport plate
-
3820068 Lock washerLock washer
-
395346649 SpacerSpacer
-
4031013 ShimShim
-
4120116 WasherWasher
-
425346900 ShaftShaft
-
4340016 Screw M10x45Screw M10x45
-
44512056700 Lock washerLock washer
-
455346135 ShaftShaft
-
4620090 Lock washerLock washer
-
4740243 Screw M12x60Screw M12x60
-
485448025 CapCap
-
495343471 ShaftShaft
-
50605349381 Retainer for stopper strapRetainer for stopper strap
-
5140008 Screw M8x45Screw M8x45
-
52605449385 Stopper strapStopper strap
-
5340134 Allen screw M10x45Allen screw M10x45
-
5420105 Washer, hardenedWasher, hardened
-
5520047 Spring washerSpring washer
-
56605349313 Rear Arm WeldRear Arm Weld
-
5731068 CushionCushion
-
58605449317 ShaftShaft
-
5940014 Screw M10x40Screw M10x40
-
6031007 CirclipCirclip
-
6131091 ShimShim
-
625346865 ShaftShaft
-
635345535 Rear armRear arm
-
64605249274 Upper armUpper arm
-
6540058 Locking screw M8x20Locking screw M8x20
-
6620005 WasherWasher
-
675447945 SleeveSleeve
-
685447946 SleeveSleeve
-
695347852 ShaftShaft
-
705347851 PipePipe
-
715447853 BearingBearing
-
725447848 Bearing sleeveBearing sleeve
-
7340011 Screw M8x60Screw M8x60
-
7440042 Screw M10x35Screw M10x35
-
7546027 Idler Wheel blackIdler Wheel black
-
7640150 Locking screw M8x90Locking screw M8x90
-
775343191 Slide partSlide part
-
7840064 Screw M6x40Screw M6x40
-
79570063600 CapCap
-
80572089000 Labyrinth sealLabyrinth seal
-
81413711500 Synthetic greaseSynthetic grease
-
82605348956 Shock assy, center. Includes items 82 thru 88Shock assy, center. Includes items 82 thru 88
-
82605348957 Shock assy, rear. Includes items 82 thru 89Shock assy, rear. Includes items 82 thru 89
-
8323142 Shock, centerShock, center
-
8323143 Shock, rearShock, rear
-
8531094 Slide bearingSlide bearing
-
86320006 Loctite 641Loctite 641
-
87503140600 Spring stopperSpring stopper
-
88503183700 CamCam
-
89605348748 Adjusting arm assyAdjusting arm assy
-
915446652 SleeveSleeve
-
925346754 ProtectorProtector
-
93503190214 Wheel 135/Full moonWheel 135/Full moon
-
94503189374 Wheel 165/Full moonWheel 165/Full moon
-
95371901700 CirclipCirclip
-
96405404500 Ball bearingBall bearing
