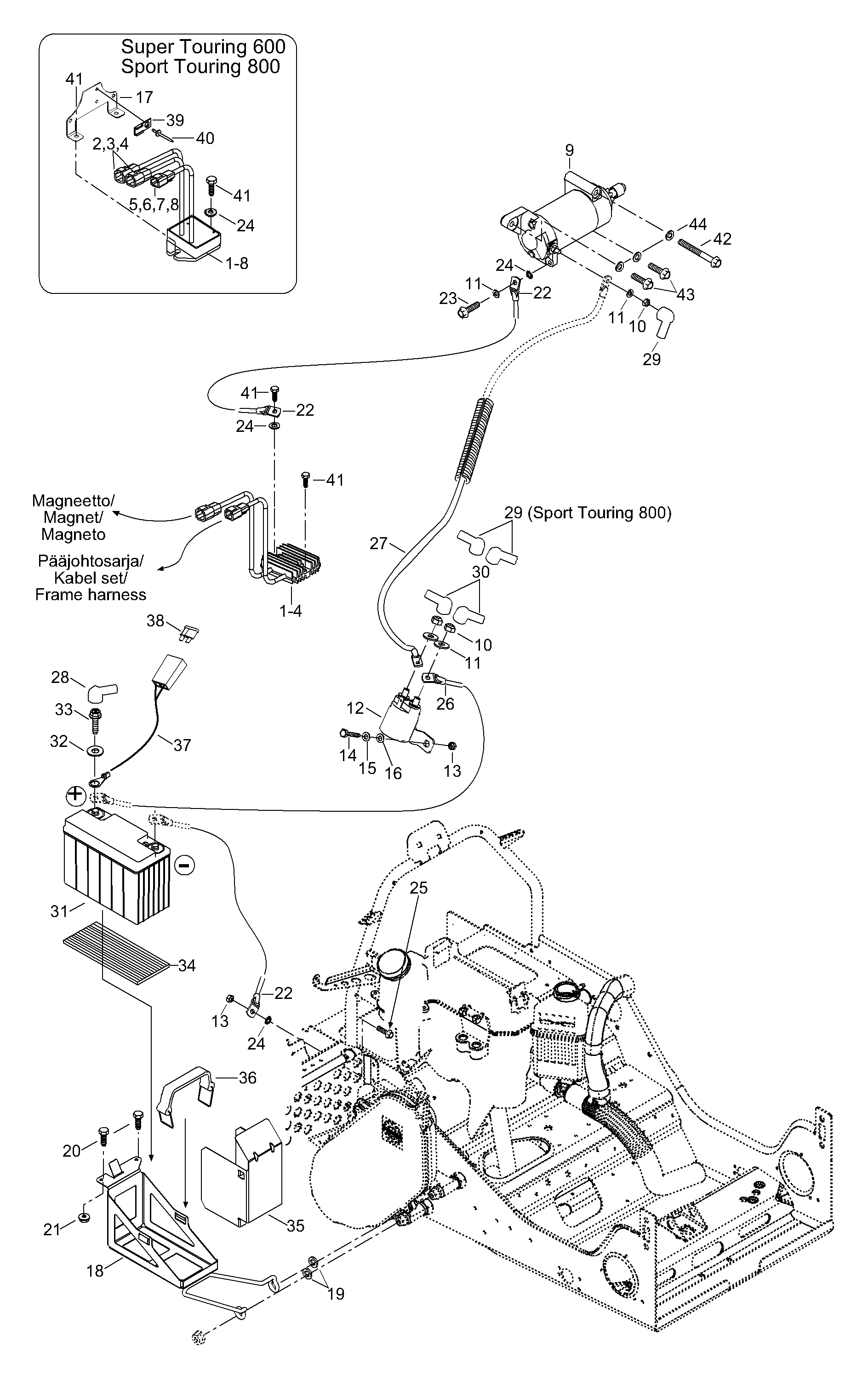

10- Electric Starter для BRP Lynx Sport Touring 600 - 2003
-
№АртикулНазвание
-
1515175756 RectifierRectifier
-
9515175843 Electric starter assyElectric starter assy
-
1033010 Elastic nut M6Elastic nut M6
-
1120003 WasherWasher
-
12710000111 Relay-starterRelay-starter
-
1333200 Elastic flanged nut M6Elastic flanged nut M6
-
1440030 Screw M6x20Screw M6x20
-
1520052 Spring washerSpring washer
-
1620009 WasherWasher
-
18515175848 Battery supportBattery support
-
1920005 WasherWasher
-
2040247 Screw M5x16Screw M5x16
-
2133062 Elastic flanged nut M5Elastic flanged nut M5
-
22515175483 Groun wireGroun wire
-
23207361644 Screw M6x16Screw M6x16
-
2420017 Lock washer serratedLock washer serrated
-
2540031 Screw M6x25Screw M6x25
-
26515175555 Battery wireBattery wire
-
275448151 Battery wireBattery wire
-
28570151000 Protector capProtector cap
-
29278000020 Protector capProtector cap
-
30570064200 Protector capProtector cap
-
31515175642 BatteryBattery
-
32391302100 WasherWasher
-
33207161644 Screw M6x16Screw M6x16
-
345347314 RubberRubber
-
35515175643 ProtectorProtector
-
36515175475 Battery strapBattery strap
-
375446894 Chargening wireChargening wire
-
38410917200 Fuse 30AFuse 30A
-
4140322 Self tapp. screw M6x16Self tapp. screw M6x16
-
42207587544 ScrewScrew
-
43207583044 Screw M8x30Screw M8x30
-
44250200008 WasherWasher
