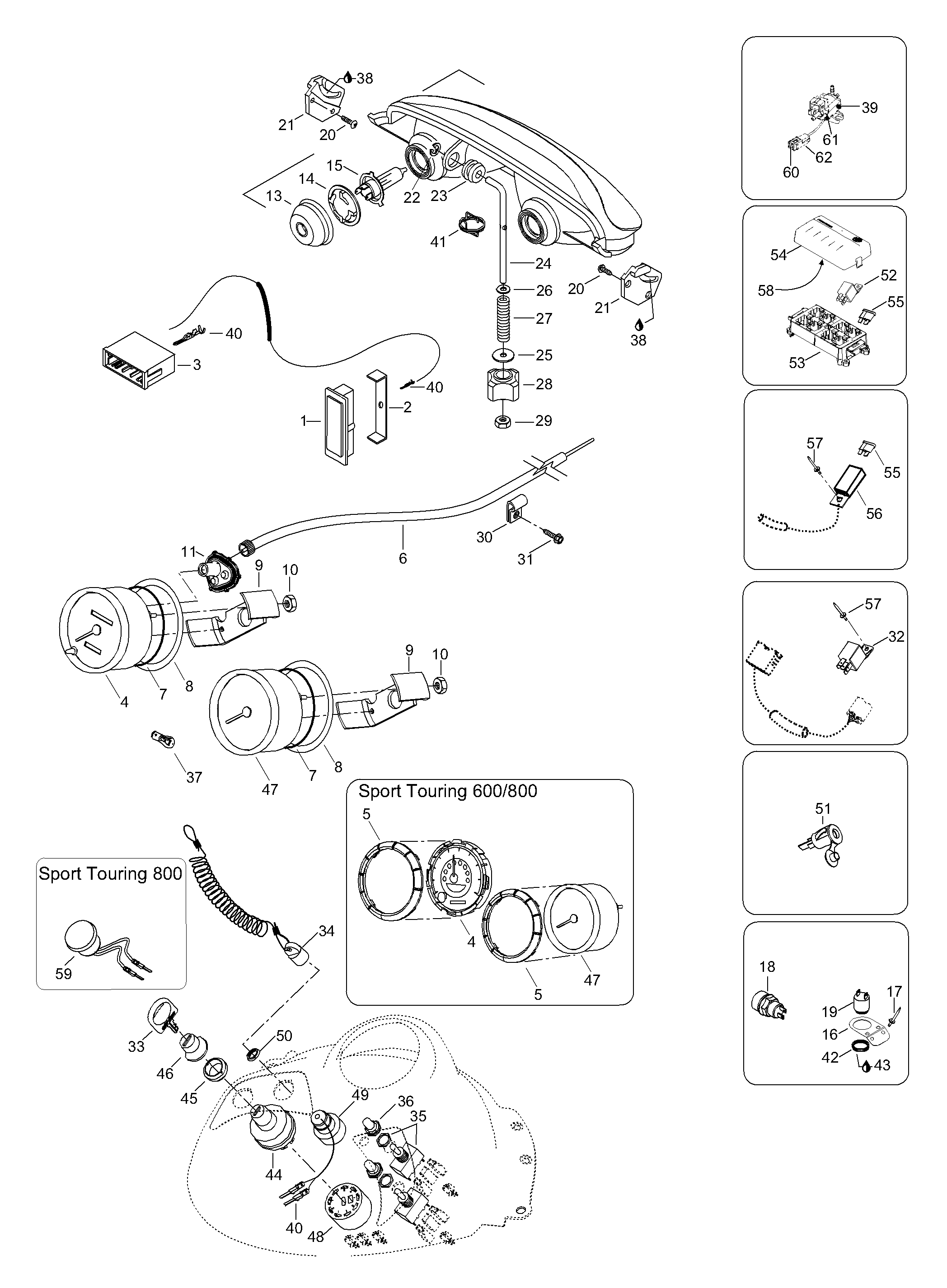

10- Electric для BRP Lynx Sport Touring 600 - 2003
-
№АртикулНазвание
-
4515175942 Speedometer, elec.Speedometer, elec.
-
5515175651 Ring gaugeRing gauge
-
12515175517 Halogen headlamp assy. Includes items 12 thru 15Halogen headlamp assy. Includes items 12 thru 15
-
13410607100 CoverCover
-
14410608300 Bulb holderBulb holder
-
15410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
165447941 BracketBracket
-
1736005 RivetRivet
-
19515175931 DC-hornDC-horn
-
2040177 Headlamp screwHeadlamp screw
-
21517289300 R.H. headlamp supportR.H. headlamp support
-
21517289400 L.H. headlamp supportL.H. headlamp support
-
22732610072 Nut pushNut push
-
23415100800 GrommetGrommet
-
24517295800 Adjuster rodAdjuster rod
-
2520038 WasherWasher
-
2620003 WasherWasher
-
27415100600 SpringSpring
-
28515175548 HandleHandle
-
2933010 Nut elastic M6Nut elastic M6
-
32410113200 RelayRelay
-
34515166900 Cap assy, D.E.S.S.Cap assy, D.E.S.S.
-
38413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
415447238 SpringSpring
-
42414805101 Ring nutRing nut
-
43293800005 Loctite 271 (10 ml)Loctite 271 (10 ml)
-
47515175943 TachometerTachometer
-
49515175145 D.E.S.S. switchD.E.S.S. switch
-
50278000508 NutNut
-
5142026 Flush Mounted SocketFlush Mounted Socket
-
55278001143 Fuse 20AFuse 20A
-
5642272 Housing, fuseHousing, fuse
-
5736491 RivetRivet
