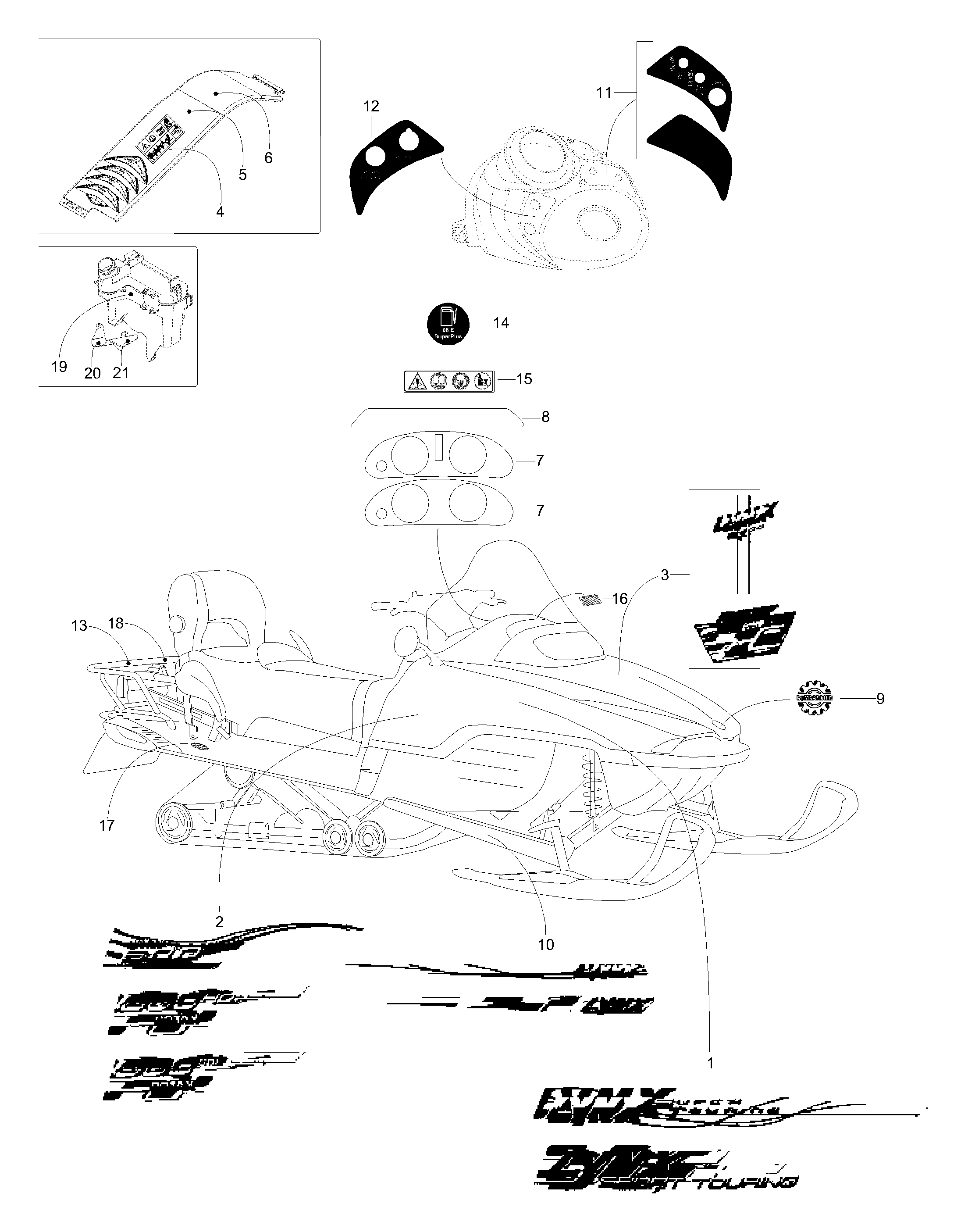

09- Decals для BRP Lynx Sport Touring 600 - 2003
-
№АртикулНазвание
-
1605348524 R.H. Hood decal, upperR.H. Hood decal, upper
-
1605348525 L.H. Hood decal, upperL.H. Hood decal, upper
-
2605348526 R.H. lower decal, hoodR.H. lower decal, hood
-
2605348527 L.H. lower decal, hoodL.H. lower decal, hood
-
3605348530 Hood decal, frontHood decal, front
-
4605448801 Warning labelWarning label
-
55447014 Pulley decalPulley decal
-
65447012 Oil check decalOil check decal
-
7605249323 Control panel decalControl panel decal
-
85346800 Instruction decalInstruction decal
-
9516000983 Logo-BombardierLogo-Bombardier
-
10605348528 Decal, swing arm R.H.Decal, swing arm R.H.
-
10605348529 Decal, swing arm L.H.Decal, swing arm L.H.
-
11605448798 R.H. console decalR.H. console decal
-
125446931 Decal D.E.S.S.Decal D.E.S.S.
-
135447931 Instruction symbol decalInstruction symbol decal
-
145447020 Fuel label, 95EFuel label, 95E
-
155447124 Instruction symbol decalInstruction symbol decal
-
1621060 Reflector, brightReflector, bright
-
1721135 Reflector, yellowReflector, yellow
-
18605448799 Decal, pulling barDecal, pulling bar
-
19605449628 Label, oil levelLabel, oil level
-
20605449565 Instruction decalInstruction decal
