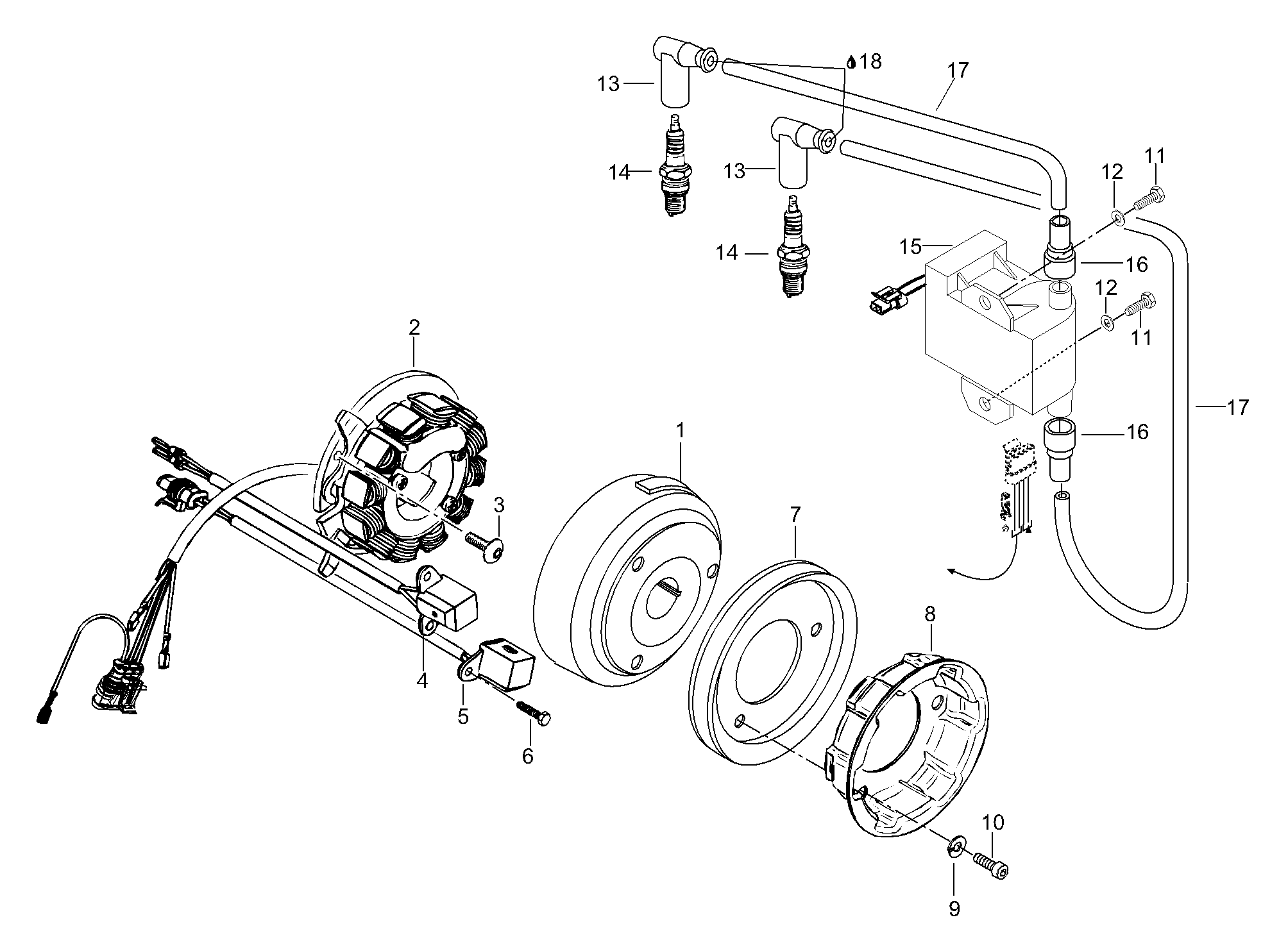

03- Magneto для BRP Lynx ST 550 F - 2003
-
№АртикулНазвание
-
1420888970 Magneto 12V/340W. Includes items 1 thru 2Magneto 12V/340W. Includes items 1 thru 2
-
1420889375 Magneto flywheelMagneto flywheel
-
2420889365 StatorStator
-
3420641521 Screw M5x16Screw M5x16
-
4420966548 Pick up assy, reversePick up assy, reverse
-
5420966546 Pick up assy, forwardPick up assy, forward
-
6420941925 Screw M5x16Screw M5x16
-
7420980486 V-belt pulleyV-belt pulley
-
8420852414 Starting pulleyStarting pulley
-
9420845311 Spring washerSpring washer
-
10420841521 Allen screw M8x12Allen screw M8x12
-
1140052 Allen screw M6x20Allen screw M6x20
-
1220003 WasherWasher
-
13278000237 Spark plug protectorSpark plug protector
-
14414961100 Spark plug BR9ESSpark plug BR9ES
-
15512059626 Amplifier-boxAmplifier-box
-
16420960550 Protection capProtection cap
-
17420965529 Spark plug cableSpark plug cable
