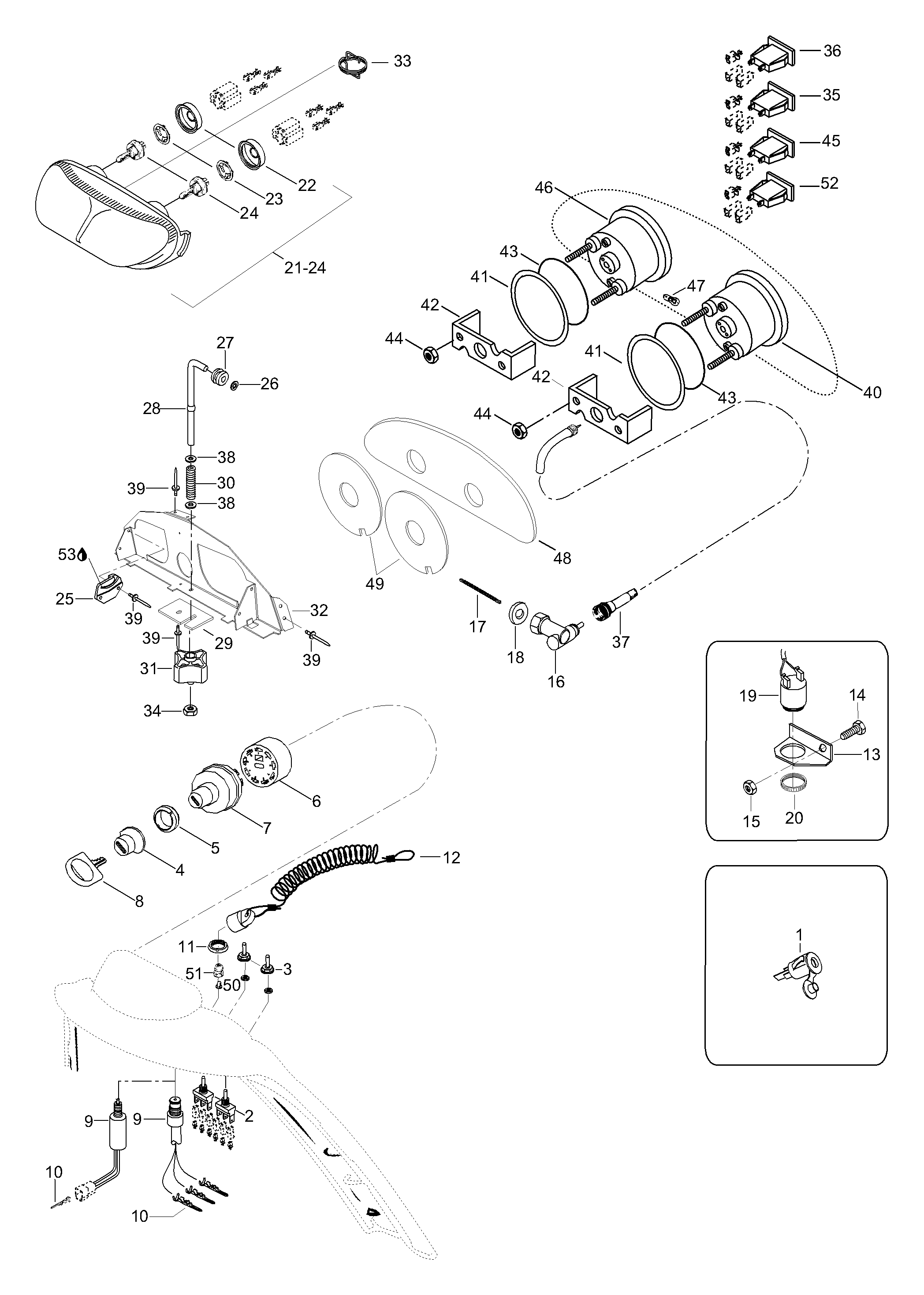

10- Electric для BRP Lynx ST 550 F - 2003
-
№АртикулНазвание
-
142026 Flush Mounted SocketFlush Mounted Socket
-
2410107300 SwitchSwitch
-
3515175281 CoverCover
-
4570013700 BootBoot
-
5410112100 Face nutFace nut
-
6572150700 Ignition blockIgnition block
-
742019 Ignition switchIgnition switch
-
8414991700 Blank keyBlank key
-
9515175571 Brake switch assyBrake switch assy
-
1042603 ConnectorConnector
-
12515151500 Cap assyCap assy
-
13549459 Support for back up alarmSupport for back up alarm
-
1440029 Screw M6x16Screw M6x16
-
1533200 Elastic flanged nut M6Elastic flanged nut M6
-
1635021 Drive angleDrive angle
-
1745009 Insert cableInsert cable
-
185444186 GasketGasket
-
19414792102 Back up alarmBack up alarm
-
20414805101 Nut for back up alarmNut for back up alarm
-
21515175909 Twin headlamp assy. Includes items 21 thru 24Twin headlamp assy. Includes items 21 thru 24
-
22410607100 CoverCover
-
23410608300 Bulb holderBulb holder
-
24410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
25517289300 R.H. headlamp supportR.H. headlamp support
-
25517289400 L.H. headlamp supportL.H. headlamp support
-
26732610072 Nut pushNut push
-
27415100800 GrommetGrommet
-
285448100 Adjuster rodAdjuster rod
-
295448320 Locking plateLocking plate
-
30415100600 SpringSpring
-
31515175548 HandleHandle
-
325248092 BracketBracket
-
335445737 SpringSpring
-
3433010 Nut elastic M6Nut elastic M6
-
35515175726 Pilot lamp (Headlamp)Pilot lamp (Headlamp)
-
36410109500 Pilot lamp (Oil level)Pilot lamp (Oil level)
-
375344162 Speedometer wireSpeedometer wire
-
3820008 WasherWasher
-
3936005 RivetRivet
-
40515175335 Speedometer, whiteSpeedometer, white
-
41517258500 WasherWasher
-
42414806500 HolderHolder
-
43414807100 O-ringO-ring
-
4433062 Elastic flanged nut M5Elastic flanged nut M5
-
47410504200 Instrumentation bulbInstrumentation bulb
-
485247817 IsoleringIsolering
-
50570151100 CoverCover
-
51515145900 NutNut
-
53413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
