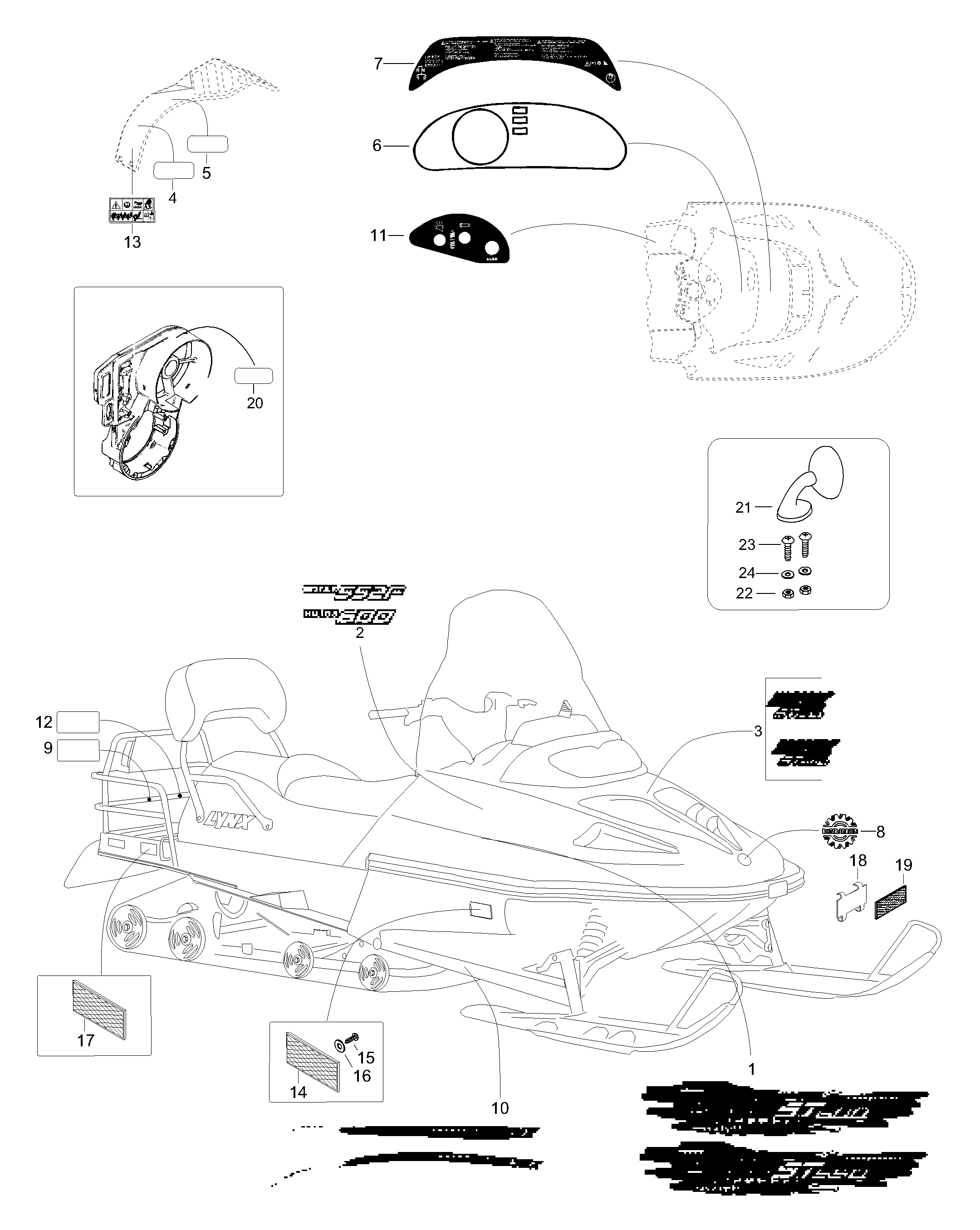

09- Decals для BRP Lynx ST 550 F - 2003
-
№АртикулНазвание
-
1605348463 Decal, upper hood R.H.Decal, upper hood R.H.
-
1605348480 Decal, upper hood L.H.Decal, upper hood L.H.
-
2605348462 Decal, Rotax 552Decal, Rotax 552
-
3605348481 Front decal, hoodFront decal, hood
-
45447014 Warning decalWarning decal
-
55447012 Oil cheking decalOil cheking decal
-
65347035 Dash decalDash decal
-
75348181 Instruction decalInstruction decal
-
8516000983 Decal BombardierDecal Bombardier
-
95447929 Instruction decalInstruction decal
-
10605348468 R.H. arm decalR.H. arm decal
-
10605348469 L.H. arm decalL.H. arm decal
-
11516001720 Heat thumb/grip decalHeat thumb/grip decal
-
12605448799 Decal, Pulling BarDecal, Pulling Bar
-
13605448801 Warning decalWarning decal
-
14414510200 Reflector, AmberReflector, Amber
-
1540070 Screw M5x10Screw M5x10
-
1620018 WasherWasher
-
1721121 Yellow reflectorYellow reflector
-
185440839 SupportSupport
-
1921060 Front reflector whiteFront reflector white
-
205447016 Instruction labelInstruction label
-
21414971910 R.H. mirrorR.H. mirror
-
21414972010 L.H. mirrorL.H. mirror
-
2233008 Nut elastic M4Nut elastic M4
-
2340167 Screw M4x16Screw M4x16
-
2420001 WasherWasher
