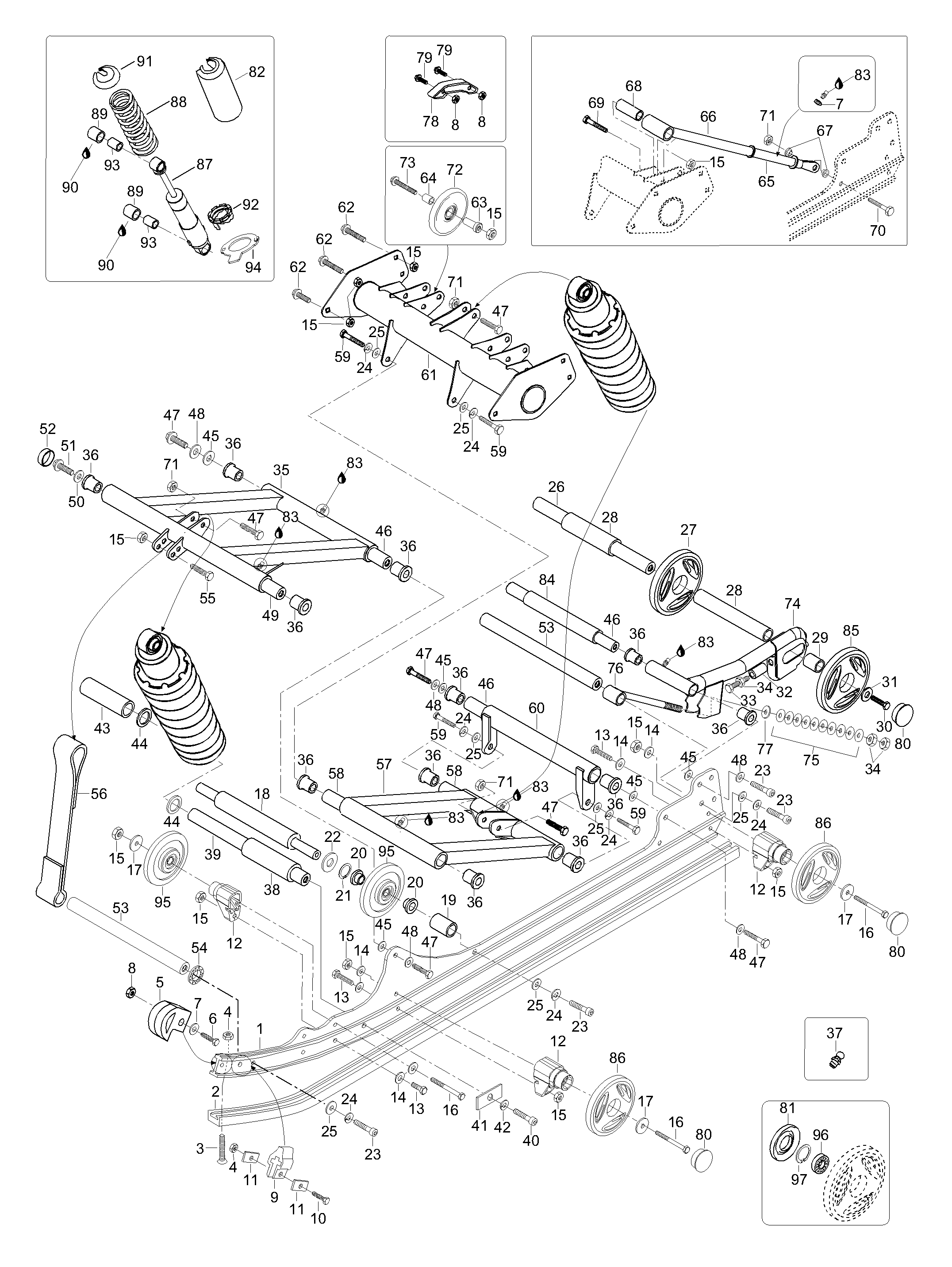

08- Rear Suspension для BRP Lynx ST 550 F - 2003
-
№АртикулНазвание
-
15247224 RunnerRunner
-
25347724 Shoe runnerShoe runner
-
340059 Allen screw M6x60Allen screw M6x60
-
433010 Nut elastic M6Nut elastic M6
-
5534578 Runner protectorRunner protector
-
640031 Screw M6x25Screw M6x25
-
720003 WasherWasher
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95448216 Rubber stopperRubber stopper
-
1040032 Screw M6x30Screw M6x30
-
11548470 PlatePlate
-
125447079 SupportSupport
-
1340037 Screw M8x25Screw M8x25
-
1420104 Washer, hardenedWasher, hardened
-
1533011 Nut elastic M8Nut elastic M8
-
1640089 Screw M8x75Screw M8x75
-
17503183100 Washer, hardenedWasher, hardened
-
185347950 AxleAxle
-
195447951 SleeveSleeve
-
20503189534 InsertInsert
-
2131007 CirclipCirclip
-
2231091 ShimShim
-
2340134 Allen screw M10x45Allen screw M10x45
-
2420047 Spring washerSpring washer
-
2520105 Washer, hardenedWasher, hardened
-
265343284 AxleAxle
-
27503189478 Idler wheel 165Idler wheel 165
-
285444096 SleeveSleeve
-
295444098 SleeveSleeve
-
30250000019 Locking screw M10x35Locking screw M10x35
-
31503183300 Washer, hardenedWasher, hardened
-
32546668 SleeveSleeve
-
3340239 Screw M10x100Screw M10x100
-
3433004 Nut M10Nut M10
-
355147672 Front arm weldedFront arm welded
-
3631083 SleeveSleeve
-
3734011 Grease nippleGrease nipple
-
385347718 SleeveSleeve
-
395347726 AxleAxle
-
4040536 Allen screw M10x45Allen screw M10x45
-
415447940 Support plateSupport plate
-
4220068 Lock washerLock washer
-
435346649 SleeveSleeve
-
4431013 ShimShim
-
4520116 WasherWasher
-
465347713 ShaftShaft
-
4740016 Screw M10x45Screw M10x45
-
48512056700 Lock washerLock washer
-
495347719 ShaftShaft
-
5020090 Spring washerSpring washer
-
5140243 Screw M12x60Screw M12x60
-
525448025 CapCap
-
535347717 ShaftShaft
-
544181158 Snapp ringSnapp ring
-
5540008 Screw M8x45Screw M8x45
-
565447961 Stopper strapStopper strap
-
575245536 Rear arm weldedRear arm welded
-
585346865 ShaftShaft
-
5940014 Screw M10x40Screw M10x40
-
605347668 Rear arm weldedRear arm welded
-
61605248974 Upper armUpper arm
-
6240058 Locking screw M8x20Locking screw M8x20
-
63605448772 SleeveSleeve
-
64605448773 SleeveSleeve
-
655347851 Poker tube weld.Poker tube weld.
-
665347852 Poker shaft weld.Poker shaft weld.
-
675447853 InsertInsert
-
685447848 SleeveSleeve
-
6940011 Screw M8x70Screw M8x70
-
70207103544 Screw M10x35Screw M10x35
-
7133012 Elastic nut M10Elastic nut M10
-
7246027 Idler wheelIdler wheel
-
7340088 Screw M8x70Screw M8x70
-
745247806 R.H. ExtensionR.H. Extension
-
745247808 L.H. ExtensionL.H. Extension
-
7525004 PlatePlate
-
765447373 Eye bolt adjusterEye bolt adjuster
-
7720011 WasherWasher
-
785343191 ProtectorProtector
-
7940064 Locking screw M6x40Locking screw M6x40
-
80570063600 ProtectorProtector
-
81572089000 Labyrinth sealLabyrinth seal
-
825346754 Shock protectorShock protector
-
83413711500 Synthetic greaseSynthetic grease
-
84605448429 SleeveSleeve
-
85503189374 Idler wheel 165/GreyIdler wheel 165/Grey
-
86503189411 Idler wheel 135/GreyIdler wheel 135/Grey
-
87605348908 Shock assy, front. Includes items 87 thru 93Shock assy, front. Includes items 87 thru 93
-
87605348909 Shock assy, rear. Includes items 87 thru 94Shock assy, rear. Includes items 87 thru 94
-
8723161 Shock, centerShock, center
-
8723162 Shock, rearShock, rear
-
8825059 Spring, centerSpring, center
-
8825060 Spring, rearSpring, rear
-
8931094 Slide bearingSlide bearing
-
90320006 Loctite 641Loctite 641
-
91230076 Spring seatSpring seat
-
92230078 Adjusting camAdjusting cam
-
935446652 SleeveSleeve
-
94605348748 Adjusting camAdjusting cam
-
95503188997 Idler wheel 135, blackIdler wheel 135, black
-
96405404500 Ball bearingBall bearing
-
97371901700 CirclipCirclip
