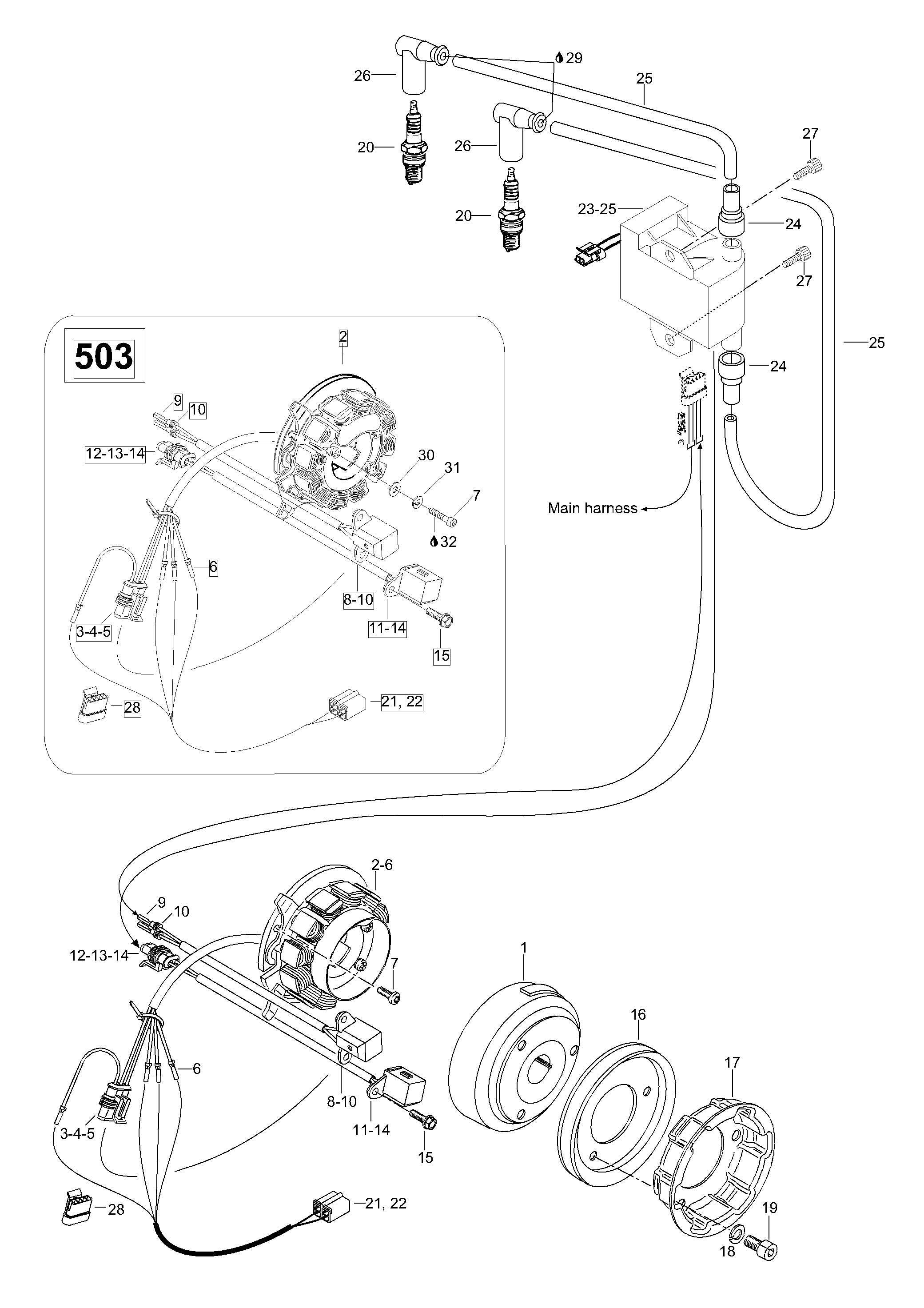

03- Fly Wheel для BRP Lynx GLX 5900 FCE - 2004
-
№АртикулНазвание
-
1420889370 Magneto flywheelMagneto flywheel
-
2420889360 StatorStator
-
3409209600 Female terminal housingFemale terminal housing
-
4278001014 Female terminalFemale terminal
-
5278001013 SealSeal
-
6515175567 Female terminalFemale terminal
-
7420840515 Allen screw M5 x 18Allen screw M5 x 18
-
8420966548 Pick up assy, reverse. Includes items 8 thru 10Pick up assy, reverse. Includes items 8 thru 10
-
9278001014 Female terminalFemale terminal
-
10278001013 SealSeal
-
11420966546 Pick up assy, forward. Includes items 11 thru 14Pick up assy, forward. Includes items 11 thru 14
-
12409209500 Female terminal housingFemale terminal housing
-
13278001014 Female terminalFemale terminal
-
14278001013 SealSeal
-
15420941925 Screw M5 x 16Screw M5 x 16
-
16420980486 V-belt pulleyV-belt pulley
-
17420852414 Starting pulleyStarting pulley
-
18420845311 Spring washerSpring washer
-
19420841521 Allen screw M8 x 12Allen screw M8 x 12
-
20414961100 Spark plug BR9ESSpark plug BR9ES
-
21278001473 Male terminal hous.Male terminal hous.
-
22278001474 Lock wedgeLock wedge
-
23515175386 Amplifier-box. Includes items 23 thru 26Amplifier-box. Includes items 23 thru 26
-
24515174900 Protection capProtection cap
-
25278001268 Ignition cable, 690 mmIgnition cable, 690 mm
-
26278000237 Spark plug protectorSpark plug protector
-
2740030 Screw M6 x 20Screw M6 x 20
-
30420927571 WasherWasher
-
31420945750 Lock washerLock washer
-
32420899785 Loctite 221 viol.Loctite 221 viol.
