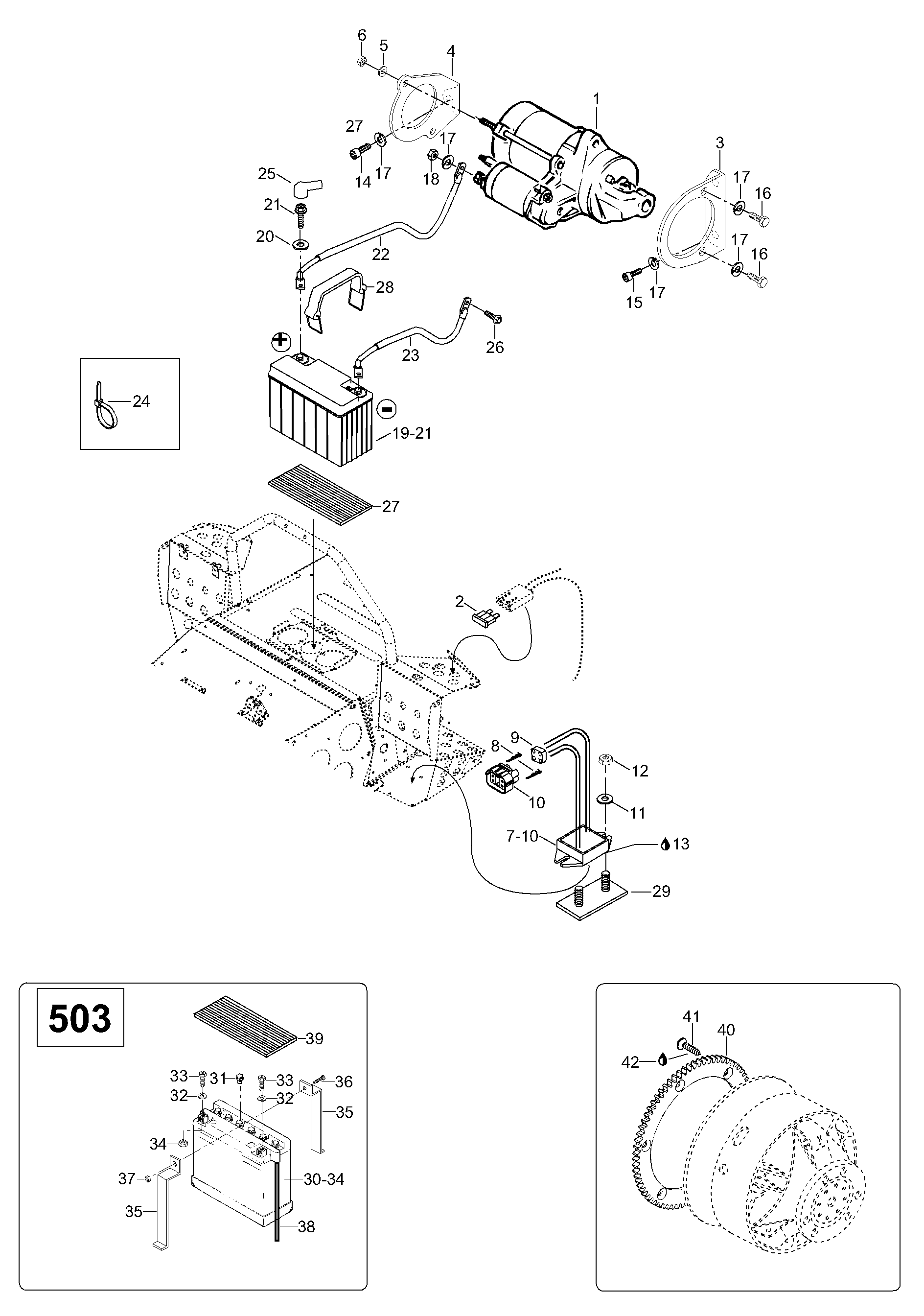

10- Battery для BRP Lynx GLX 5900 FCE - 2004
-
№АртикулНазвание
-
1410212400 StarterStarter
-
2278001143 Fuse 20AFuse 20A
-
3420951415 Starter bracketStarter bracket
-
4420951426 Starter bracket MAGStarter bracket MAG
-
520008 WasherWasher
-
633009 Nut elastic M5Nut elastic M5
-
7515175656 Rectifier assy. Includes items 7 thru 10Rectifier assy. Includes items 7 thru 10
-
842603 ConnectorConnector
-
942605 SealSeal
-
1042604 Connector housingConnector housing
-
1120009 WasherWasher
-
1233010 Nut elastic M6Nut elastic M6
-
13413707500 Lithium-greaseLithium-grease
-
1440066 Allen screw M8 x 16Allen screw M8 x 16
-
1540305 Allen screw M8 x 20Allen screw M8 x 20
-
1640036 Screw M8 x 20Screw M8 x 20
-
1720014 Spring washerSpring washer
-
1833003 Nut M8Nut M8
-
22
-
23
-
2427026 Tie-rapTie-rap
-
25570151000 Cap protectionCap protection
-
2640327 Screw M6 x 12Screw M6 x 12
-
295448286 Averse Plate AssyAverse Plate Assy
-
30410301201 Battery. Includes items 30 thru 34Battery. Includes items 30 thru 34
-
31410300800 CapCap
-
32391302100 WasherWasher
-
3340029 Screw M6 x 16Screw M6 x 16
-
3433002 Nut M6Nut M6
-
355442811 Battery supportBattery support
-
3640031 Screw M6 x 25Screw M6 x 25
-
3733200 Elastic flanged nut M6Elastic flanged nut M6
-
3839055 Overflow hose 6.5/4Overflow hose 6.5/4
-
395446666 RubberRubber
-
40415043100 Ring-gear (86)Ring-gear (86)
-
41236281684 Screw M8x16Screw M8x16
-
42413707400 Loctite 271, 10ccLoctite 271, 10cc
