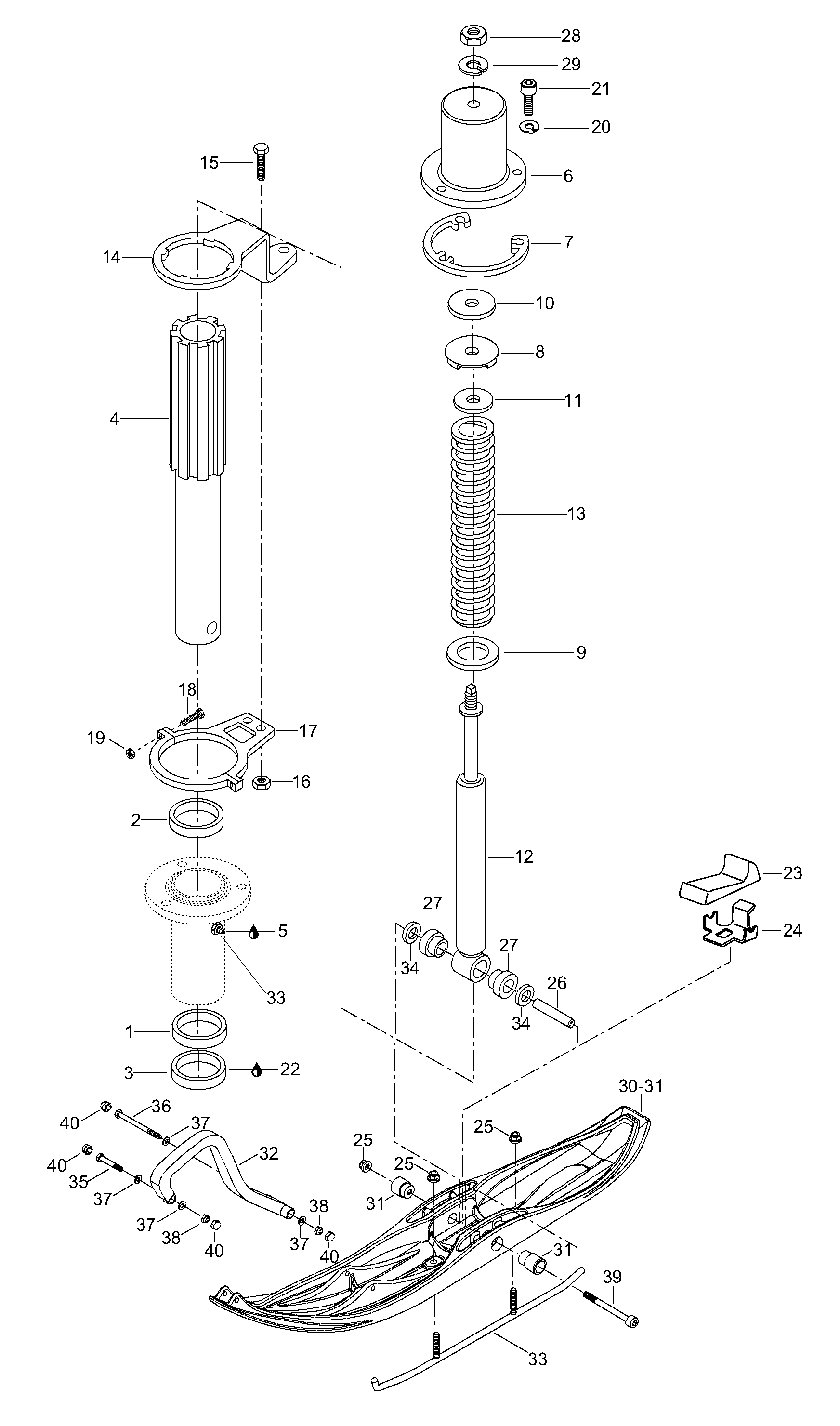

08- Front Suspension для BRP Lynx GLX 5900 FCE - 2004
-
№АртикулНазвание
-
1414803200 Lower cushionLower cushion
-
2414803100 Upper cushionUpper cushion
-
3316373 Oil sealOil seal
-
45245362 Ski-legSki-leg
-
5413711500 GreaseGrease
-
6605249284 Welded coverWelded cover
-
7503145600 Spacer plateSpacer plate
-
8570025800 StopperStopper
-
9549493 BearingplateBearingplate
-
105440399 PlatePlate
-
11549492 Holder plateHolder plate
-
12505070920 ShockShock
-
135241330 SpringSpring
-
145244182 Arm-steeringArm-steering
-
1540031 Screw M6 x 25Screw M6 x 25
-
1633200 Elastic flanged nut M6Elastic flanged nut M6
-
175344180 Support arm assySupport arm assy
-
1840146 Allen screw M4 x 20Allen screw M4 x 20
-
1933008 Nut elastic M4Nut elastic M4
-
2020014 Lock washerLock washer
-
2140305 Allen screw M8 x 20Allen screw M8 x 20
-
23605348439 StopperStopper
-
24605348437 Support plateSupport plate
-
2533074 Elastic flanged nut M10Elastic flanged nut M10
-
26605348921 SleeveSleeve
-
27572034500 CushionCushion
-
2833012 Nut elastic M10Nut elastic M10
-
2920012 WasherWasher
-
30605148440 Plastic ski. Includes items 30 thru 31Plastic ski. Includes items 30 thru 31
-
31605348392 SleeveSleeve
-
32505070963 Plastic handlePlastic handle
-
33605349311 Runner carbide assyRunner carbide assy
-
34605448594 SleeveSleeve
-
3540009 Screw M8 x 50Screw M8 x 50
-
3640264 Screw M8 x 90Screw M8 x 90
-
3720004 WasherWasher
-
3833011 Nut elastic M8Nut elastic M8
-
3940225 Allen screw M10 x 140Allen screw M10 x 140
-
4028056 CapCap
