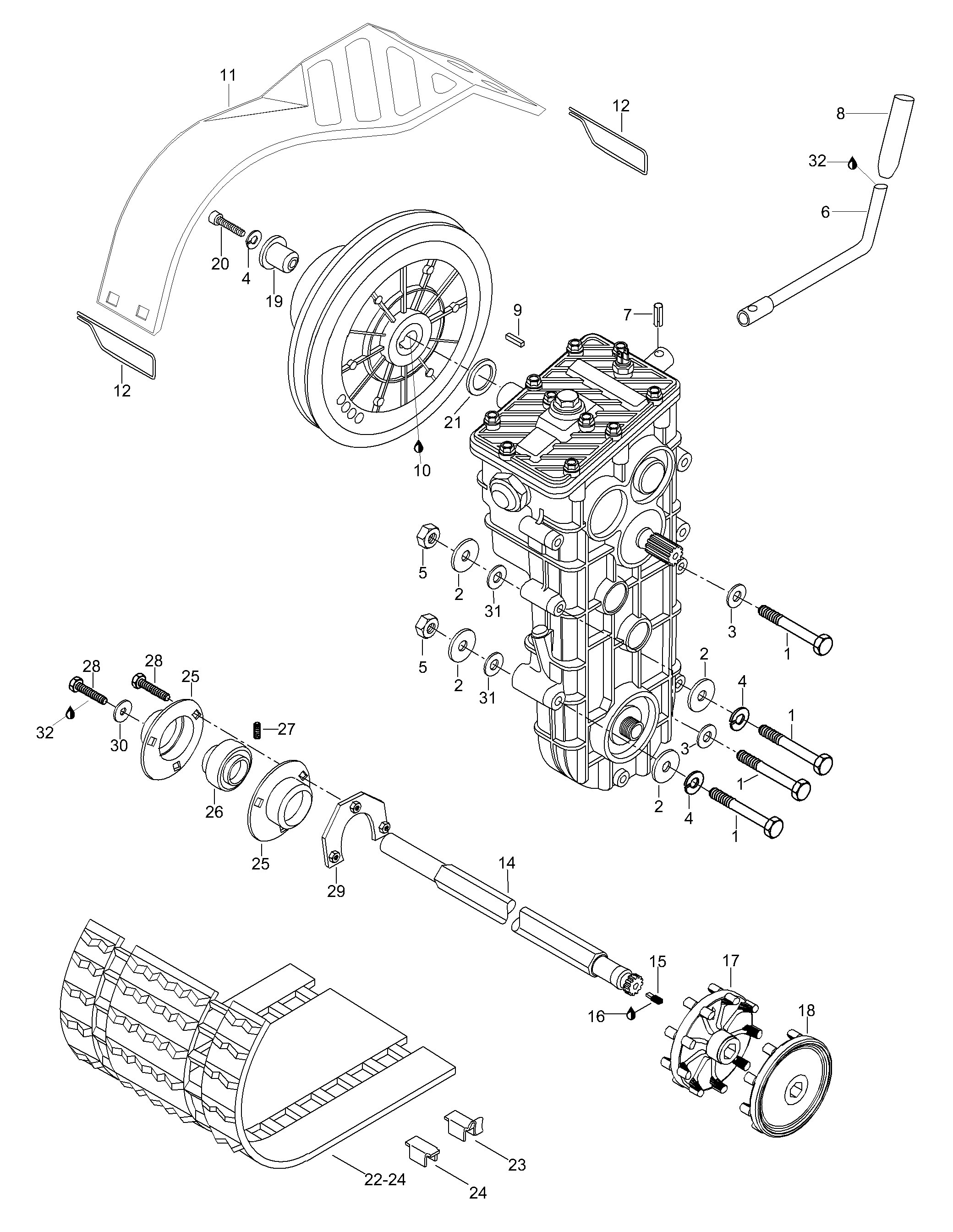

05- Drive Axle для BRP Lynx GLX 5900 FCE - 2004
-
№АртикулНазвание
-
140012 Screw M8 x 80Screw M8 x 80
-
220010 WasherWasher
-
320004 WasherWasher
-
420014 Lock washerLock washer
-
533011 Nut elastic M8Nut elastic M8
-
65340902 Shift handleShift handle
-
741008 Spring keySpring key
-
828247 ButtonButton
-
9418763 KeyKey
-
10293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
115142660 Belt guardBelt guard
-
125442726 PinPin
-
135344384 Drive axle assy. Includes items 13 thru 17Drive axle assy. Includes items 13 thru 17
-
145341662 Drive axleDrive axle
-
15542013 Speedometer drive insertSpeedometer drive insert
-
16293800005 Loctite 271, 10mlLoctite 271, 10ml
-
17539750 Sprocket 1:1Sprocket 1:1
-
185342920 Sprocket 1:2Sprocket 1:2
-
195443201 SpacerSpacer
-
2040286 Allen screw M8 x 45Allen screw M8 x 45
-
2213055 Track. Includes items 22 thru 24Track. Includes items 22 thru 24
-
235318323 Cleat guideCleat guide
-
245318322 Slide guideSlide guide
-
25534430 Bearing housing setBearing housing set
-
2631UC205 BearingBearing
-
2710531 Lock screwLock screw
-
2840336 Screw M8 x 20Screw M8 x 20
-
29546421 Thrust ringThrust ring
-
30546336 WasherWasher
-
3120077 WasherWasher
-
32293800060 Loctite 243Loctite 243
