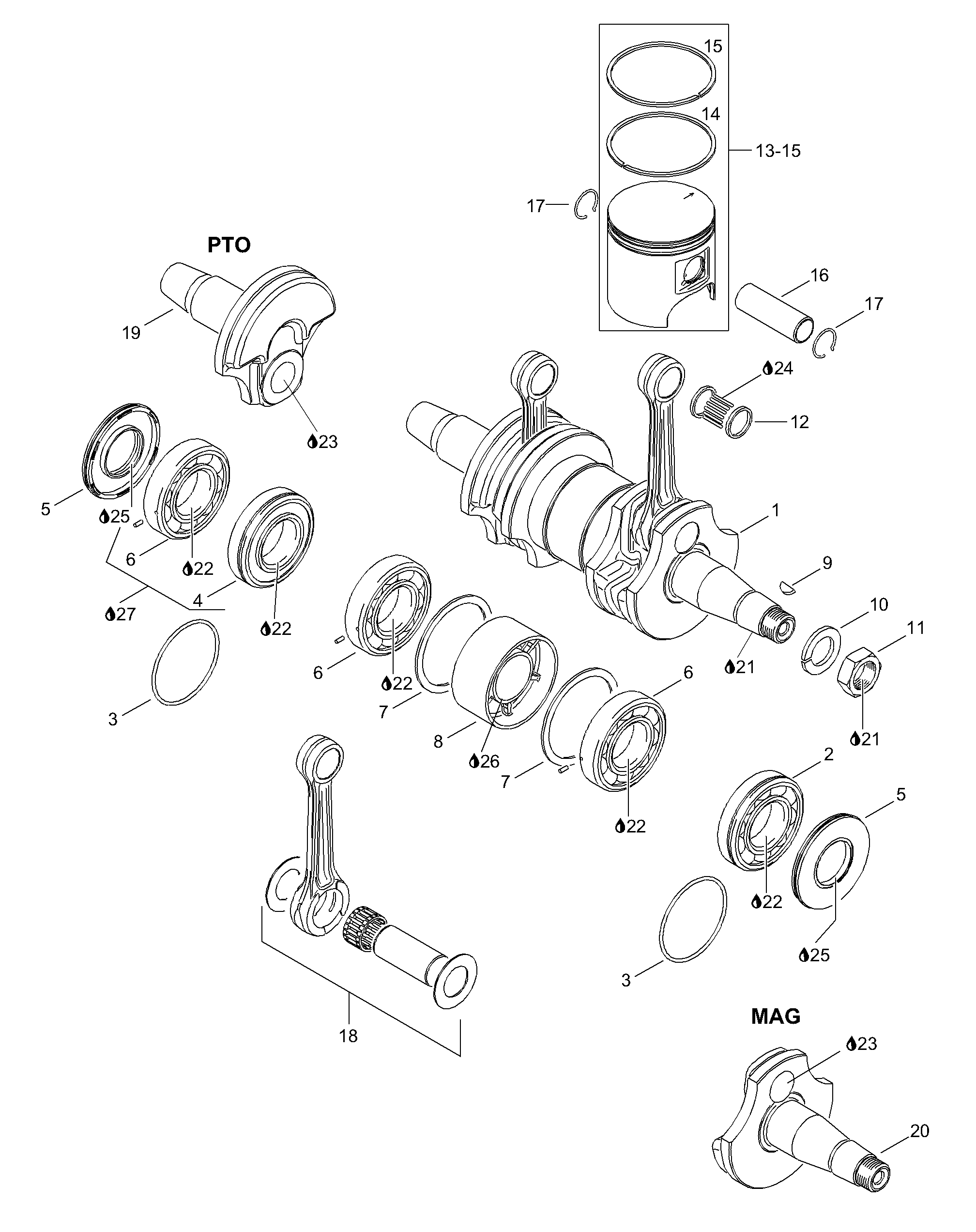

01- Crankshaft Assy для BRP Lynx 6900 - 2004
-
№АртикулНазвание
-
1420889062 Crankshaft assy. Includes items 1 thru 8Crankshaft assy. Includes items 1 thru 8
-
2420832571 Ball bearing 6207Ball bearing 6207
-
3420250165 O-ringO-ring
-
4420832637 Ball bearing 6207Ball bearing 6207
-
5420831950 Oil sealOil seal
-
5420832573 Ball bearing 6207. Includes items 5 thru 6Ball bearing 6207. Includes items 5 thru 6
-
6420929972 Drive pinDrive pin
-
7420927710 Retaining diskRetaining disk
-
8420850149 Labyrinth sleeveLabyrinth sleeve
-
9420246055 Woodruff keyWoodruff key
-
10420945759 Lock washerLock washer
-
11420842230 Nut M22Nut M22
-
12420832420 Cagel. needle bearingCagel. needle bearing
-
13420889050 Piston assy 75.86 mm. Includes items 13 thru 15Piston assy 75.86 mm. Includes items 13 thru 15
-
13420889051 Piston assy 76.11 mm. Includes items 13 thru 15Piston assy 76.11 mm. Includes items 13 thru 15
-
13420889052 Piston assy 76.36 mm. Includes items 13 thru 15Piston assy 76.36 mm. Includes items 13 thru 15
-
14420815300 Piston ring 76.00 mmPiston ring 76.00 mm
-
14420815301 Piston ring 76.25 mmPiston ring 76.25 mm
-
14420815302 Piston ring 76.50 mmPiston ring 76.50 mm
-
15420815155 Piston ring 76.00 mmPiston ring 76.00 mm
-
15420815156 Piston ring 76.25 mmPiston ring 76.25 mm
-
15420815157 Piston ring 76.50 mmPiston ring 76.50 mm
-
16420916405 Piston pinPiston pin
-
17420845106 CirclipCirclip
-
18420889064 Crankshaft repair kitCrankshaft repair kit
-
19420819181 Crankshaft P.T.O.-sideCrankshaft P.T.O.-side
-
20420819210 Crankshaft MAG.-sideCrankshaft MAG.-side
-
21420899785 Loctite 221 violetLoctite 221 violet
-
22293800070 Loctite anti seize, 8 ozLoctite anti seize, 8 oz
-
23413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
241472325 Injection oil (8 x 1 l)Injection oil (8 x 1 l)
-
25420899271 Grease GHY133N, 400GGrease GHY133N, 400G
-
27293550021 Isoflex grease, 50gIsoflex grease, 50g
