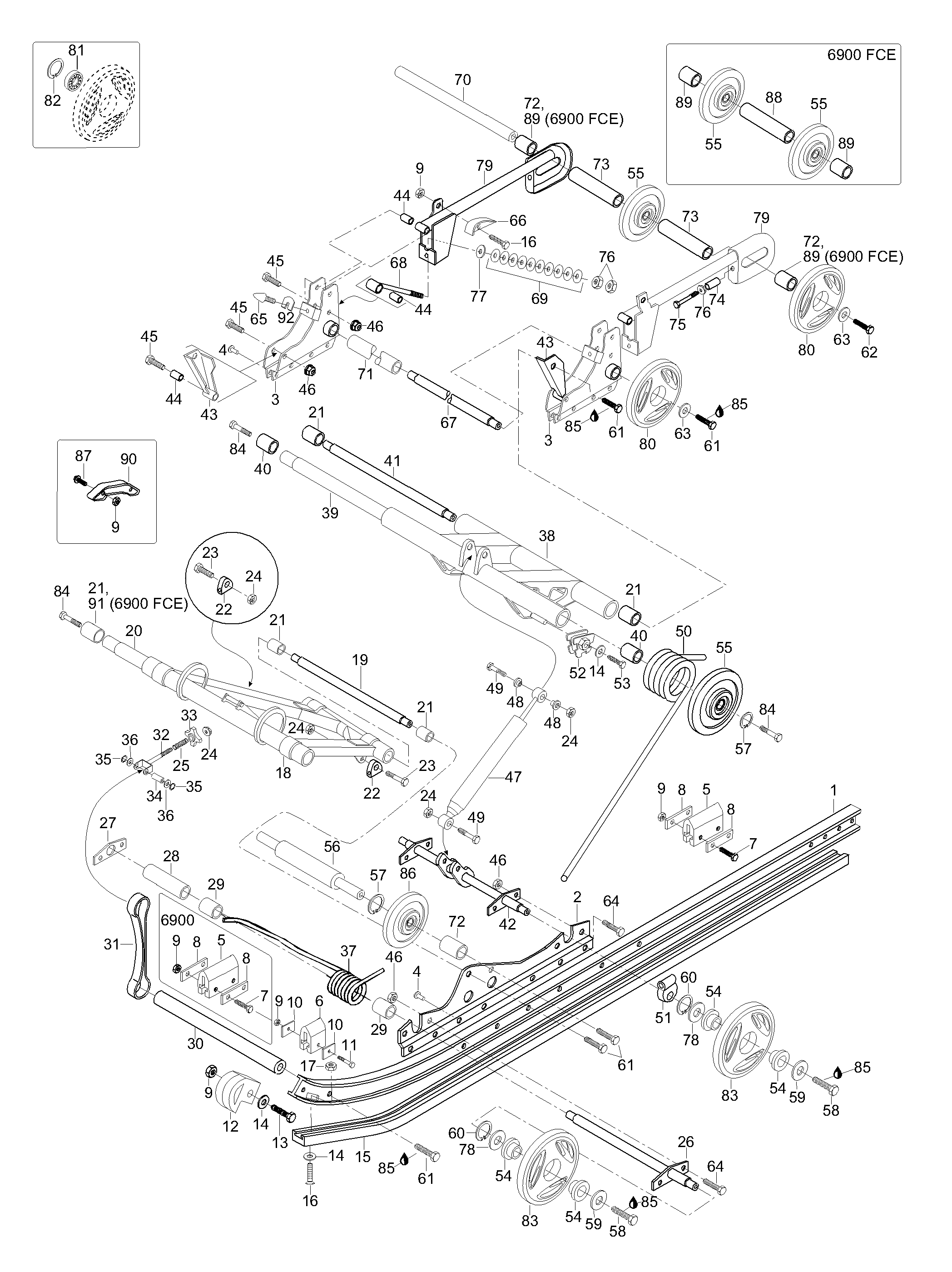

08- Rear Suspension для BRP Lynx 6900 - 2004
-
№АртикулНазвание
-
15142866 Slide frame assy R.H.. Includes items 1 thru 4Slide frame assy R.H.. Includes items 1 thru 4
-
15142865 Slide frame assy L.H.. Includes items 1 thru 4Slide frame assy L.H.. Includes items 1 thru 4
-
15142864 Slide railSlide rail
-
25344810 L.H. PlateL.H. Plate
-
25344811 R.H. PlateR.H. Plate
-
3539672 Support for axle L.H.Support for axle L.H.
-
3539673 Support for axle R.H.Support for axle R.H.
-
4544212 RivetRivet
-
5570023100 Rubber damperRubber damper
-
740002 Screw M6 x 40Screw M6 x 40
-
8548387 Support plateSupport plate
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
12605348954 Slide pieceSlide piece
-
1340031 Screw M6 x 25Screw M6 x 25
-
1420003 WasherWasher
-
15549582 Ski-linerSki-liner
-
1640030 Screw M6 x 20Screw M6 x 20
-
1733010 Nut elastic M6Nut elastic M6
-
185242808 Rocker arm, frontRocker arm, front
-
19549695 Lower axleLower axle
-
20542794 Upper axleUpper axle
-
21542770 SlidebearingSlidebearing
-
22548799 Spring supportSpring support
-
2340014 Screw M10 x 40Screw M10 x 40
-
2433012 Nut elastic M10Nut elastic M10
-
25414460600 SpringSpring
-
26539653 ShaftShaft
-
27548469 Support plateSupport plate
-
285440313 SleeveSleeve
-
29548841 Support sleeveSupport sleeve
-
30549718 Belt axleBelt axle
-
315442604 Stopper strapStopper strap
-
325441643 Stop belt adjusterStop belt adjuster
-
33572034000 Adjusting knobAdjusting knob
-
345441645 SleeveSleeve
-
3541035 CirclipCirclip
-
3620005 WasherWasher
-
37538798 Spring, R.H.Spring, R.H.
-
37538797 Spring, L.H.Spring, L.H.
-
385343096 Rocking frame, rearRocking frame, rear
-
395340577 Upper axleUpper axle
-
4031046 Slide bearingSlide bearing
-
41549656 Lower axleLower axle
-
42539655 ShaftShaft
-
435440350 Lever, R.H.Lever, R.H.
-
435440349 Lever, L.H.Lever, L.H.
-
44545758 SleeveSleeve
-
4540008 Screw M8 x 45Screw M8 x 45
-
4633011 Nut elastic M8Nut elastic M8
-
47503189996 ShockShock
-
48544417 SleeveSleeve
-
4940017 Screw M10 x 50Screw M10 x 50
-
50538805 Spring L.H.Spring L.H.
-
50538806 Spring R.H.Spring R.H.
-
515442112 Spring supportSpring support
-
52572030800 L.H. Adjustment CamL.H. Adjustment Cam
-
52572030900 R.H. Adjustment CamR.H. Adjustment Cam
-
5340114 Screw M6 x 10Screw M6 x 10
-
54503189534 InsertInsert
-
55503189568 Support wheel 165/BKSupport wheel 165/BK
-
56549680 Idlerwheel shaftIdlerwheel shaft
-
5731001 CirclipCirclip
-
5840336 Screw M8 x 20Screw M8 x 20
-
59503183100 Washer, hardenedWasher, hardened
-
6031007 CirclipCirclip
-
6140335 Screw M10 x 30Screw M10 x 30
-
6240050 Screw M10 x 35Screw M10 x 35
-
63503183300 Washer, hardenedWasher, hardened
-
6440035 Screw M8 x 16Screw M8 x 16
-
65535455 Rubber damperRubber damper
-
66548262 Crank blockCrank block
-
67541816 AxleAxle
-
685440377 Extension screwExtension screw
-
6925004 Spring plateSpring plate
-
705341979 Rear shaftRear shaft
-
71541815 SleeveSleeve
-
72546577 SleeveSleeve
-
74546668 SleeveSleeve
-
7540239 Screw M10 x 100Screw M10 x 100
-
7633004 Nut M10Nut M10
-
7720011 WasherWasher
-
7831091 ShimShim
-
795243099 Extension pipe R.H.Extension pipe R.H.
-
795243098 Extension pipe L.H.Extension pipe L.H.
-
80503189374 Support wheel 165/SSupport wheel 165/S
-
81405404500 BearingBearing
-
8231002 CirclipCirclip
-
83503190214 Support wheel 135/SSupport wheel 135/S
-
8440314 Screw M10 x 30Screw M10 x 30
-
85293800060 Loctite 243, 10mlLoctite 243, 10ml
-
86503190216 Support wheel 135/BKSupport wheel 135/BK
-
8740064 Locking screw M6 x 40Locking screw M6 x 40
-
885441980 SleeveSleeve
-
895440422 SleeveSleeve
-
905343191 Slide PartSlide Part
-
91541528 SlidebearingSlidebearing
-
925440645 ShimplateShimplate
