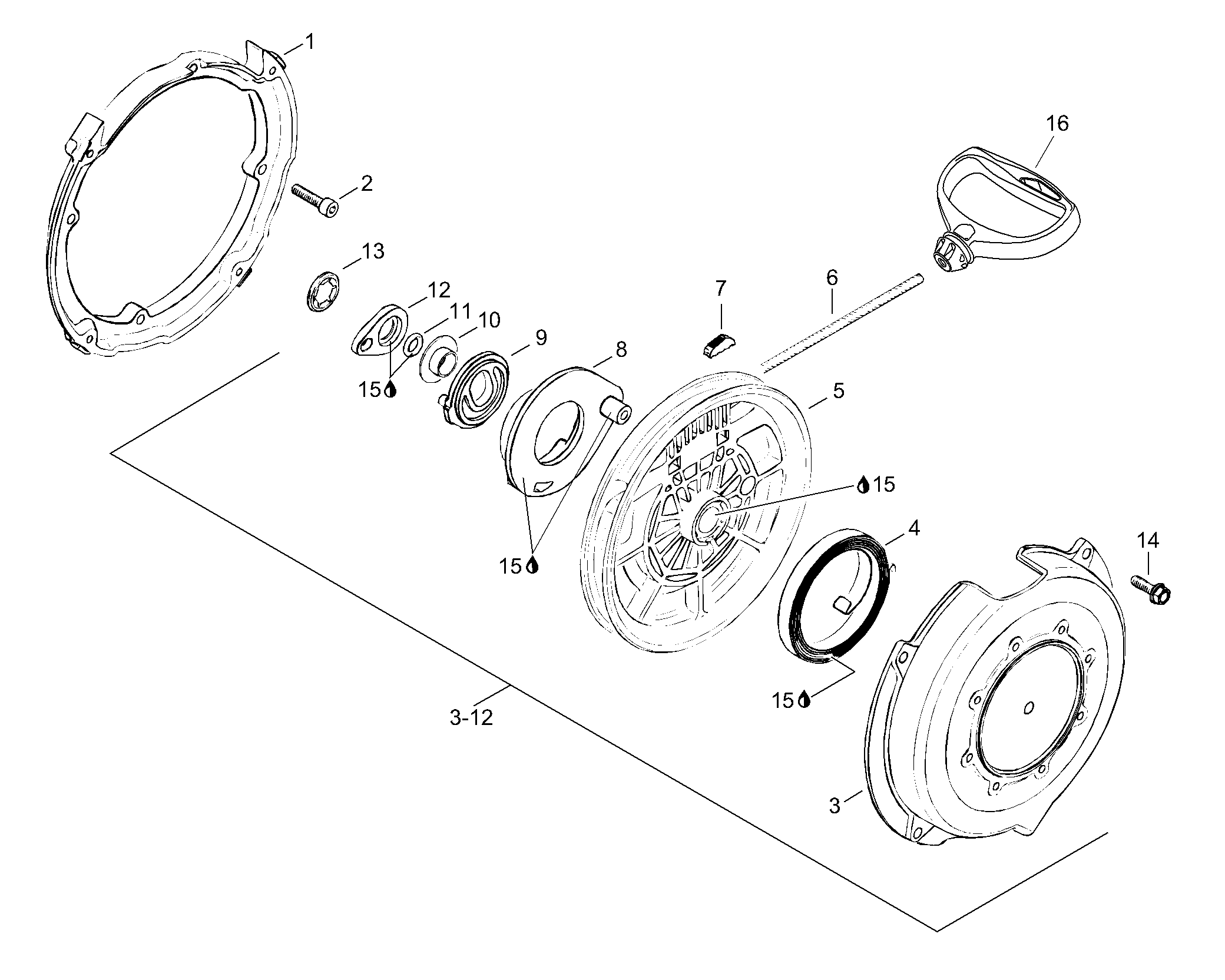

04- Rewind Starter для BRP Lynx 6900 - 2004
![](/wa-data/public/shop/sheme/bombardier/lynx/26e46c46-9400-4702-ad95-c7a2e374a3ba.png)
-
№АртикулНазвание
-
1420810952 Connecting flangeConnecting flange
-
2420440202 Screw, Torx M6 x 20Screw, Torx M6 x 20
-
3420888219 Rewind starter assy. Includes items 3 thru 12Rewind starter assy. Includes items 3 thru 12
-
3420811346 Starter housing assyStarter housing assy
-
4420939115 Rewind spring assyRewind spring assy
-
5420852480 Rope sheaveRope sheave
-
6420852492 Starter rope 2,2mStarter rope 2,2m
-
6412500100 Starting rope 30mStarting rope 30m
-
7420852070 Key clampKey clamp
-
8420852296 PawlPawl
-
9420852305 Pawl lockPawl lock
-
10420847925 Step collarStep collar
-
11420250400 O-ringO-ring
-
12420852520 Lock leverLock lever
-
13420845560 Locking elementLocking element
-
14420941250 Taptite-screw M6 x 20Taptite-screw M6 x 20
-
15420297433 Molykote G-NMolykote G-N
-
16572084400 Starter gripStarter grip
