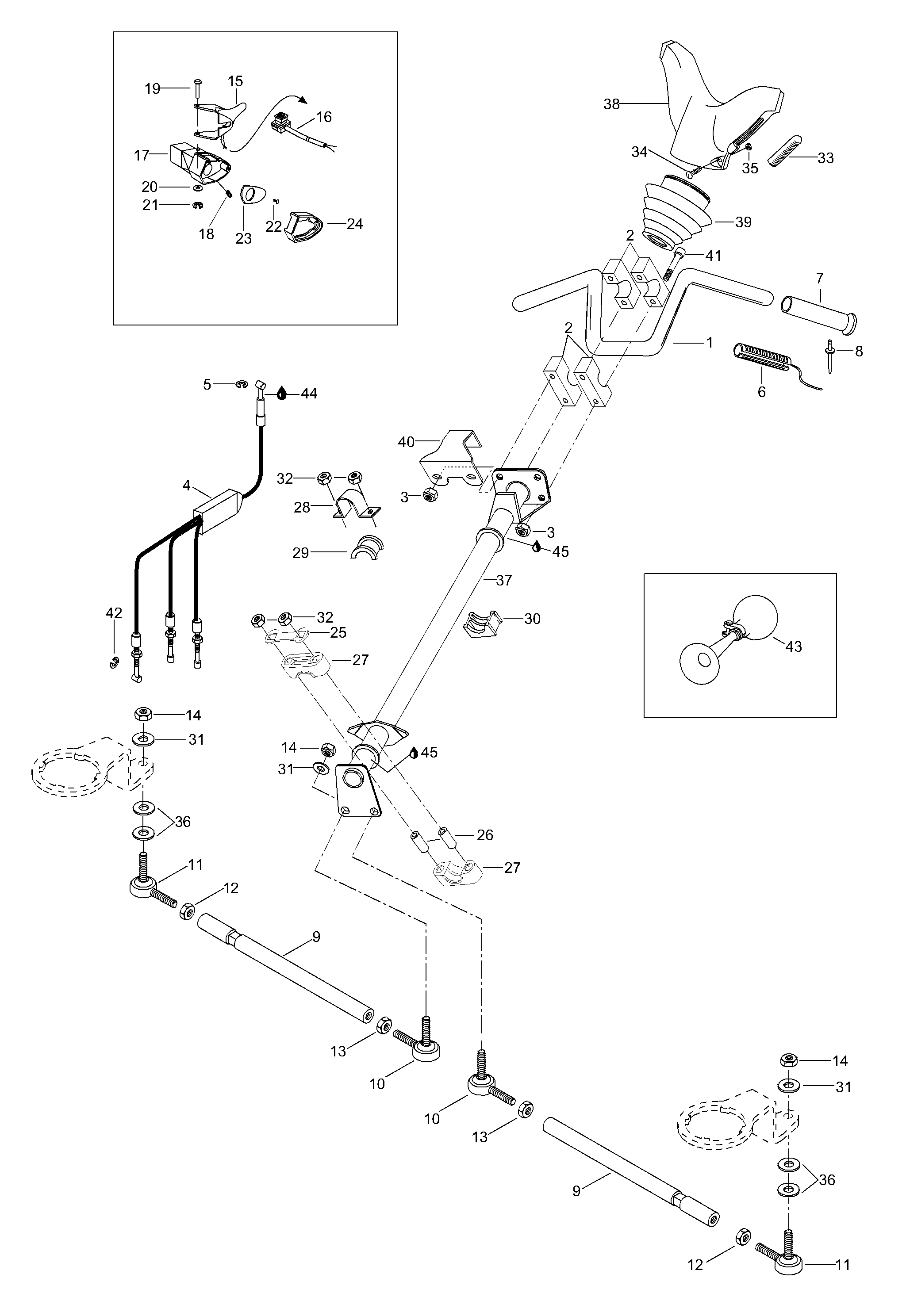

07- Steering для BRP Lynx 6900 - 2004
-
№АртикулНазвание
-
1529751 Steering handle barSteering handle bar
-
2548448 FasteningFastening
-
333011 Nut elastic M8Nut elastic M8
-
45244975 Gas wireGas wire
-
531038 CirclipCirclip
-
6515175664 Heating grip kitHeating grip kit
-
75340464 HandleHandle
-
836005 RivetRivet
-
95441066 Tie rod R.H.Tie rod R.H.
-
9548983 Tie rod L.H.Tie rod L.H.
-
10506151495 L.H. Ball jointL.H. Ball joint
-
11506151492 R.H. Ball jointR.H. Ball joint
-
1233019 Nut M10 R.H.Nut M10 R.H.
-
1333017 Nut M10 L.H.Nut M10 L.H.
-
1433023 Nut elastic M10Nut elastic M10
-
15512059144 Heated handleHeated handle
-
16414612700 Kill switchKill switch
-
17512059334 Throttle housingThrottle housing
-
18414440800 Screw M8 x 10Screw M8 x 10
-
19414438700 PinPin
-
20414438900 WasherWasher
-
21414439000 CirclipCirclip
-
22414473200 ScrewScrew
-
23512059507 PlatePlate
-
24572044600 Throttle adaptorThrottle adaptor
-
25506150600 Stopper plateStopper plate
-
26506150500 Housing bushingHousing bushing
-
27506150400 Half housingHalf housing
-
285343381 Retaining supportRetaining support
-
29572064500 Bearing halfBearing half
-
30572064400 Bearing halfBearing half
-
3120015 Spring washerSpring washer
-
3233201 Nut elastic M8Nut elastic M8
-
33572023900 KeyKey
-
3440156 Screw M5 x 20Screw M5 x 20
-
3533062 Nut M5Nut M5
-
3631014 WasherWasher
-
375245968 Main tubeMain tube
-
38572023800 Steering paddingSteering padding
-
39539033 Steering paddingSteering padding
-
405444196 SupportSupport
-
4140286 Allen screw M8 x 45Allen screw M8 x 45
-
4231035 CirclipCirclip
-
4321003 Condor HornCondor Horn
-
44293550004 Dielectric grease, 150gDielectric grease, 150g
-
45413711500 Synthetic greaseSynthetic grease
