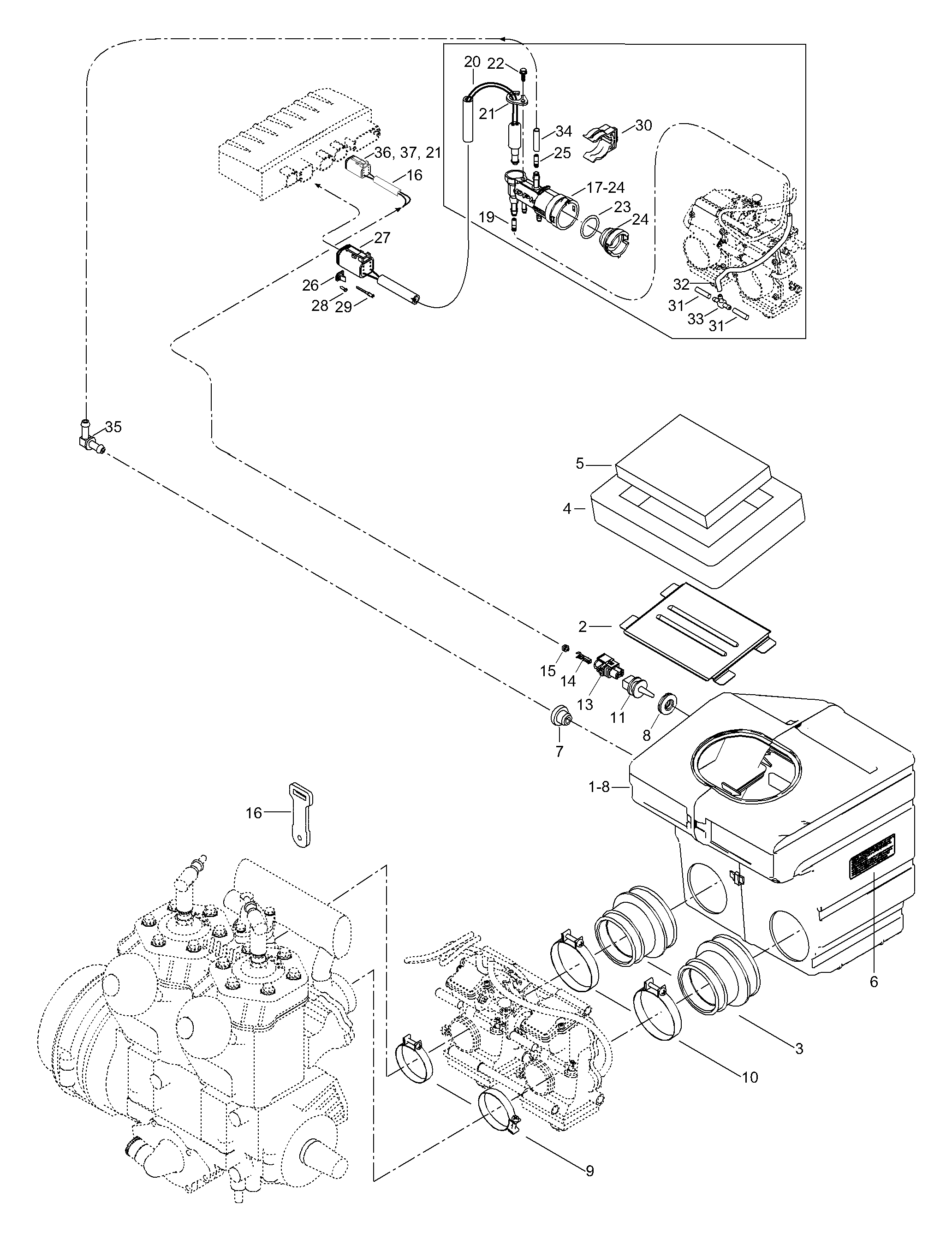

01- Air Silencer для BRP Lynx Mountain 800 HO - 2004
-
№АртикулНазвание
-
1415128452 Air intake assy. Includes items 1 thru 8Air intake assy. Includes items 1 thru 8
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
9512059835 ClampClamp
-
1027046 ClampClamp
-
11270600000 Air temperature sensorAir temperature sensor
-
12515175703 Wire harness. Includes items 12 thru 16Wire harness. Includes items 12 thru 16
-
13515175588 Connector housingConnector housing
-
14278000998 Female terminalFemale terminal
-
15278000999 SealSeal
-
16515175332 TubingTubing
-
17512059633 Pressure manifold assy. Includes items 17 thru 24Pressure manifold assy. Includes items 17 thru 24
-
19404161825 Starter jetStarter jet
-
20515175701 Harness assyHarness assy
-
21415061600 Solenoid lockSolenoid lock
-
22241140060 Screw K40 x 10Screw K40 x 10
-
23293300042 O-ringO-ring
-
24270600009 CapCap
-
25404161819 Starter jetStarter jet
-
26515175678 WedgeWedge
-
27515175673 Female connector housingFemale connector housing
-
28293000052 SealSeal
-
29278000632 Female terminalFemale terminal
-
30512058919 SupportSupport
-
3139004 Hose 5/8Hose 5/8
-
32512059524 HoseHose
-
33414729300 T-fittingT-fitting
-
34512059651 HoseHose
-
35414580600 ConnectorConnector
-
36515175706 Female LockFemale Lock
-
37515175670 Female connector housingFemale connector housing
