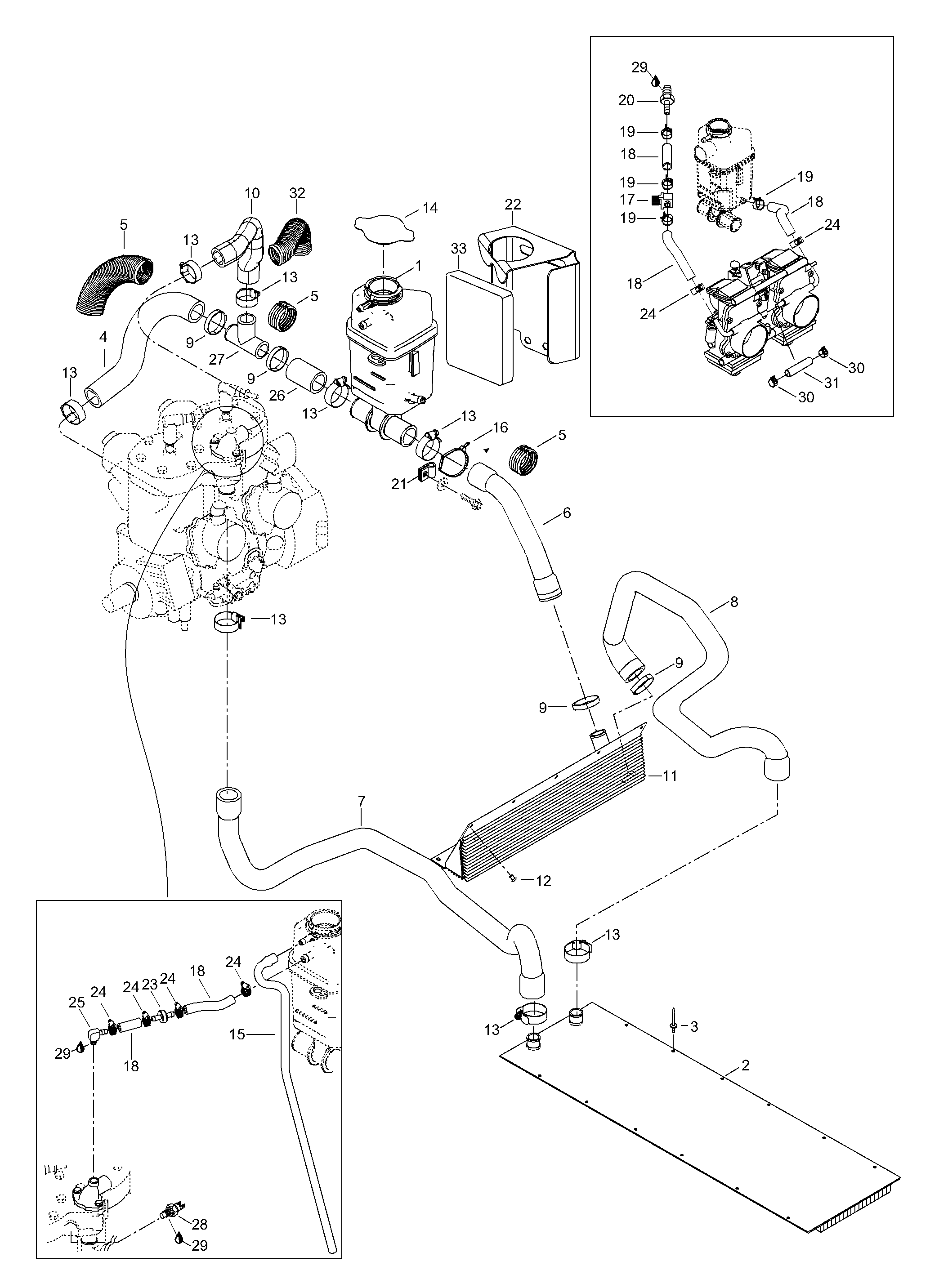

01- Radiator, Hoses для BRP Lynx Mountain 800 HO - 2004
-
№АртикулНазвание
-
1509000140 Coolant-tankCoolant-tank
-
25246648 RadiatorRadiator
-
336083 RivetRivet
-
4509000141 HoseHose
-
5390003 Protective shield (1000 mmProtective shield (1000 mm
-
6509000144 Hose, front rad.->tankHose, front rad.->tank
-
75347901 Hose, engine->rear rad.Hose, engine->rear rad.
-
85347902 Hose, front rad.->rear rad.Hose, front rad.->rear rad.
-
9509000045 Hose clampHose clamp
-
10509000142 Hose, sender->T-pieceHose, sender->T-piece
-
11509000146 Front radiatorFront radiator
-
1236489 RivetRivet
-
13408800400 Hose clampHose clamp
-
14509000187 Cap pressureCap pressure
-
1539038 Overflow hose 9.5/6.5Overflow hose 9.5/6.5
-
1627100 Tie rapTie rap
-
17512059324 ValveValve
-
18509000093 HoseHose
-
19414655700 Hose clampHose clamp
-
20293710082 ConnectorConnector
-
2127025 ClampClamp
-
22605348409 Heat protection plateHeat protection plate
-
23509000153 Valve.checkValve.check
-
24293650128 Hose clampHose clamp
-
25293700020 Fitting elbowFitting elbow
-
26509000143 HoseHose
-
27414619900 T-fittingT-fitting
-
28515176041 Sender temperatureSender temperature
-
29293800018 Loctite 592, 50mlLoctite 592, 50ml
-
31404161956 HoseHose
-
32605449802 Protective shieldProtective shield
-
335448229 Heat protectorHeat protector
