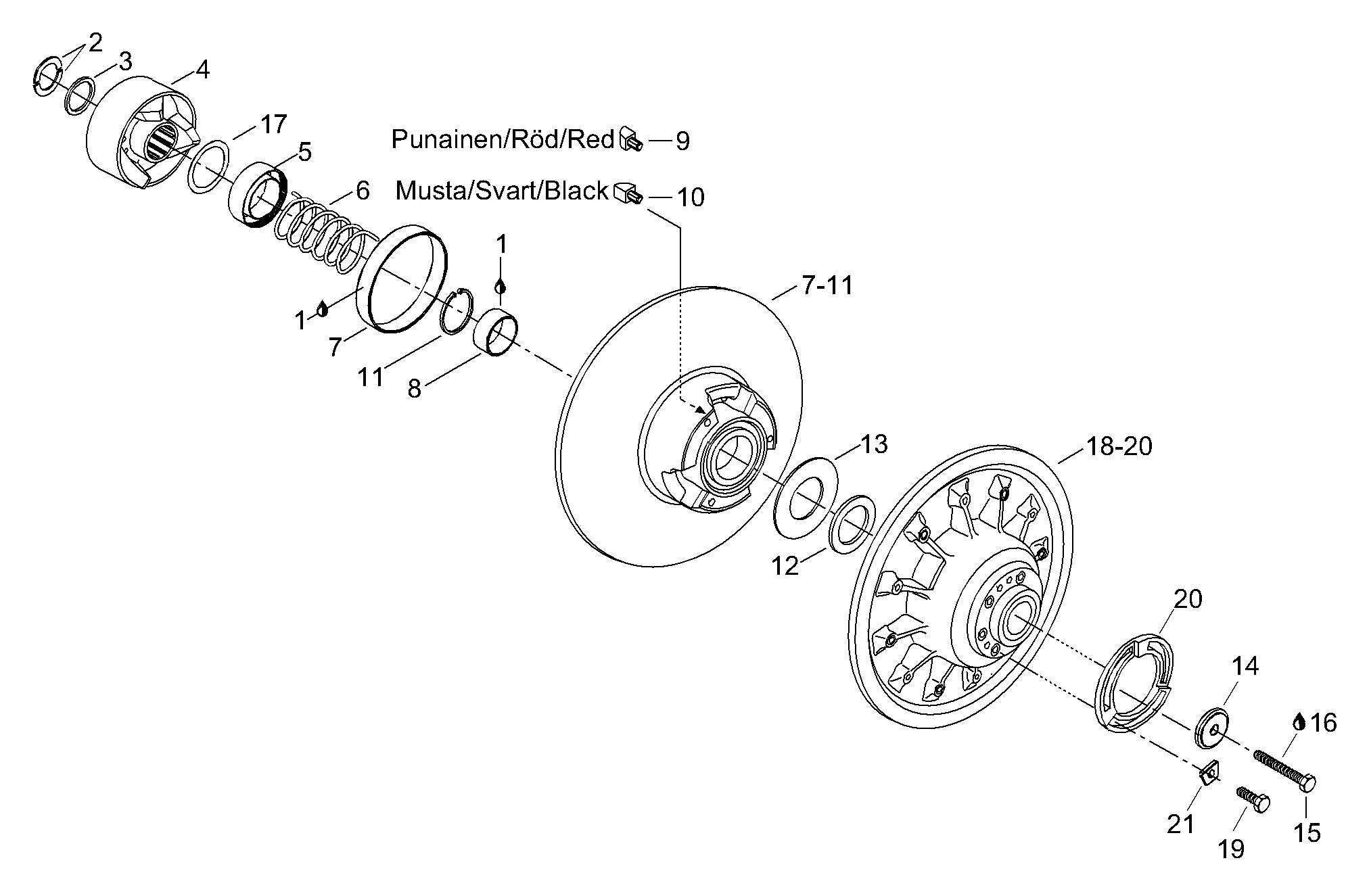

05- Driven Pulley для BRP Lynx Mountain 800 HO - 2004
-
№АртикулНазвание
-
1413703100 Loctite 609 10ccLoctite 609 10cc
-
2371911000 Half keyHalf key
-
3417126375 SpacerSpacer
-
4417126385 Cam 47-44 degr.Cam 47-44 degr.
-
5417126381 ProtectorProtector
-
6417126687 Spring, blackSpring, black
-
7417126605 Sliding pulley assy. Includes items 7 thru 11Sliding pulley assy. Includes items 7 thru 11
-
7414978100 Bushing garlockBushing garlock
-
8414978200 BushingBushing
-
9417126373 Cam slide shoe (rear)Cam slide shoe (rear)
-
10417126374 Cam slide shoe (front)Cam slide shoe (front)
-
11371911200 CirclipCirclip
-
12504112300 ShimShim
-
13504099600 Stop washerStop washer
-
14517302322 WasherWasher
-
1540089 Screw M8 x 75Screw M8 x 75
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17417126322 Swivel abutmentSwivel abutment
-
18417126603 Fixed half pulley assy. Includes items 18 thru 20Fixed half pulley assy. Includes items 18 thru 20
-
19207162244 Screw M6 x 22Screw M6 x 22
-
20415005800 Ring-adjustmentRing-adjustment
-
21415005900 Shim-adjustmentShim-adjustment
