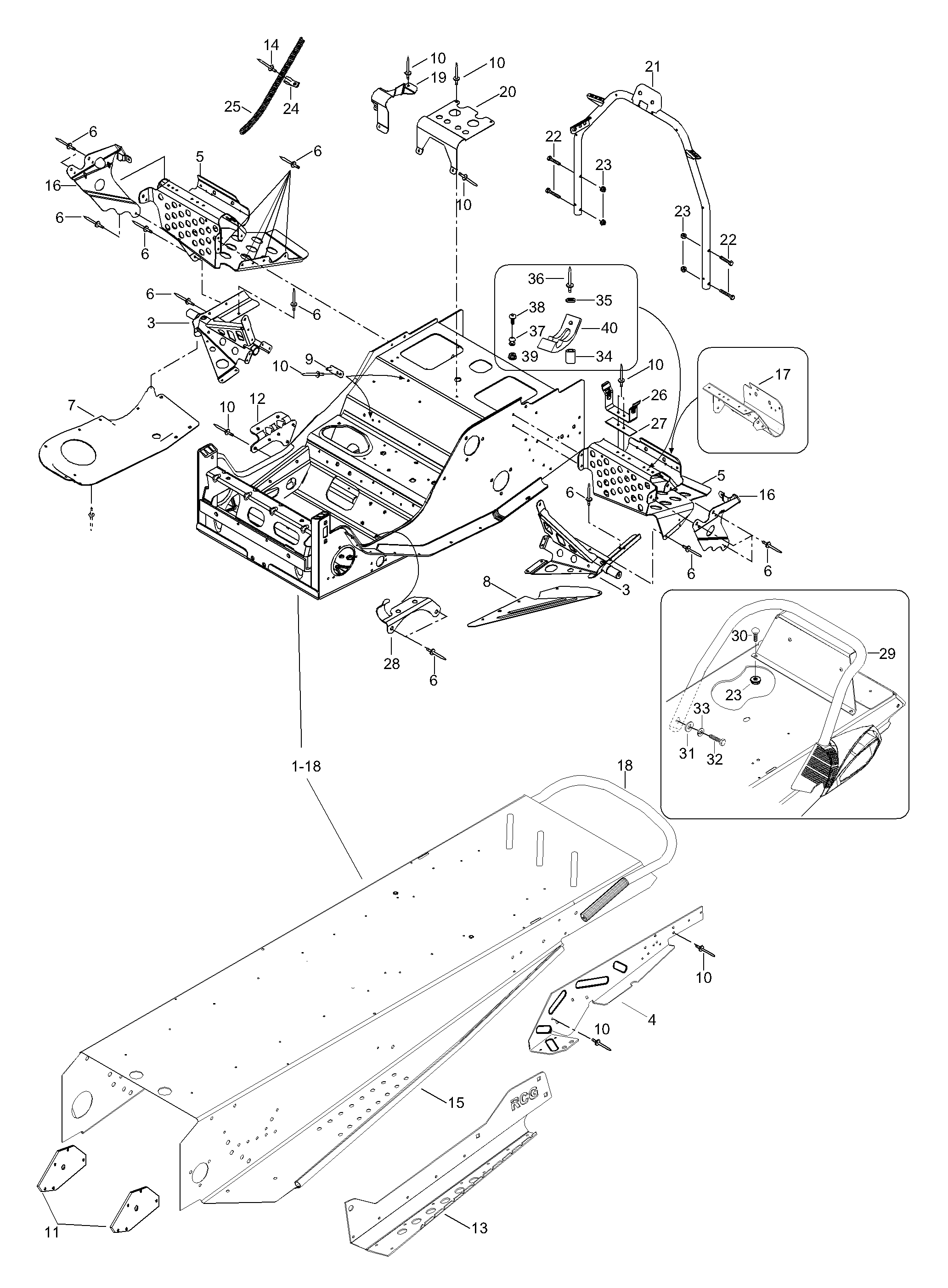

09- Frame для BRP Lynx Mountain 800 HO - 2004
-
№АртикулНазвание
-
15148231 Frame assy. Includes items 1 thru 18Frame assy. Includes items 1 thru 18
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
45348324 R.H. bracketR.H. bracket
-
45348323 L.H. bracketL.H. bracket
-
5605250580 R.H. front footrestR.H. front footrest
-
5605250581 L.H. front footrestL.H. front footrest
-
636083 RivetRivet
-
7518322636 R.H. bottom pan plateR.H. bottom pan plate
-
8605349267 L.H. reinf. plateL.H. reinf. plate
-
9518319728 Double bracketDouble bracket
-
1036489 RivetRivet
-
115348321 SupportSupport
-
12518322635 Muffler supportMuffler support
-
135248327 R.H. holed corner plateR.H. holed corner plate
-
135248326 L.H. holed corner plateL.H. holed corner plate
-
1436036 RivetRivet
-
15605349144 R.H. Runner boardR.H. Runner board
-
15605349145 L.H. Runner boardL.H. Runner board
-
16605149138 R.H. end plateR.H. end plate
-
16605149139 L.H. end plateL.H. end plate
-
175146917 R.H. toe holdR.H. toe hold
-
175146918 L.H. toe holdL.H. toe hold
-
185248322 Bumper rearBumper rear
-
19518322699 Hose supportHose support
-
20518310400 Air intake supportAir intake support
-
215247856 Handle steering supp.Handle steering supp.
-
2240002 Screw M6 x 40Screw M6 x 40
-
2333200 Nut M6Nut M6
-
2427092 ClipClip
-
25518321569 Rope guideRope guide
-
26518202100 Pulley guard bracketPulley guard bracket
-
27518207500 ReinforcementReinforcement
-
28515175254 Cable supportCable support
-
29605250506 Rack assyRack assy
-
3040149 Locking screw M6 x 30Locking screw M6 x 30
-
3120077 WasherWasher
-
3240336 Screw M8 x 20Screw M8 x 20
-
3320052 Spring washerSpring washer
-
34543417 SleeveSleeve
-
35543392 WasherWasher
-
3636072 RivetRivet
-
37605449087 Counter rollCounter roll
-
3840168 Screw M4 x 25Screw M4 x 25
-
3933008 Nut M4Nut M4
-
40531955 LatchLatch
