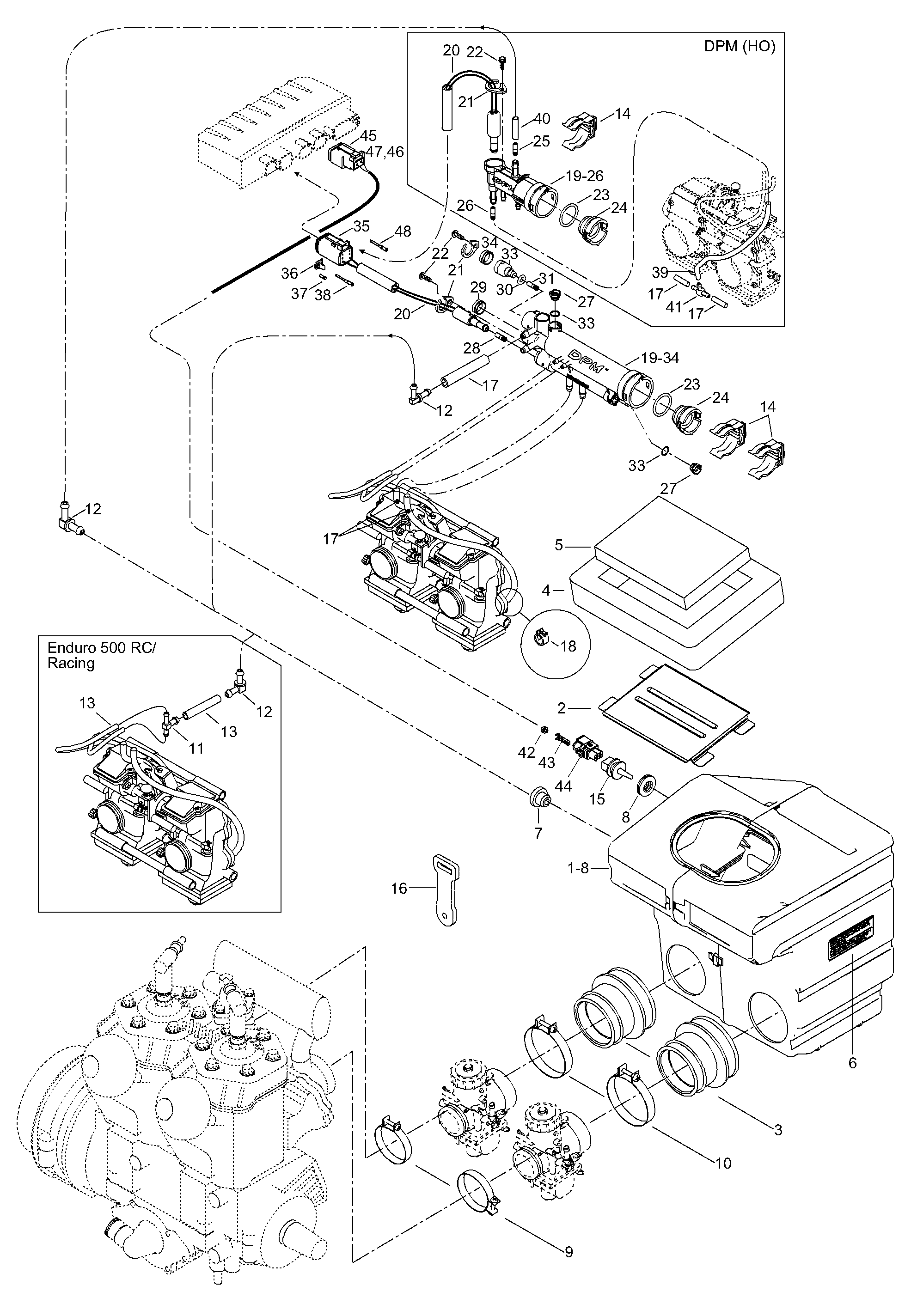

01- Air Silencer для BRP Lynx Rave 800/RC - 2004
-
№АртикулНазвание
-
1508000263 Air intake assy. Includes items 1 thru 8Air intake assy. Includes items 1 thru 8
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
9512059835 ClampClamp
-
1027046 ClampClamp
-
12414580600 ConnectorConnector
-
14512058919 SupportSupport
-
15270600000 Air temperature sensorAir temperature sensor
-
1739004 HoseHose
-
18414554800 ClampClamp
-
19512059497 Pressure manifold assy. Includes items 19 thru 34Pressure manifold assy. Includes items 19 thru 34
-
20515175693 Harness assyHarness assy
-
21415061600 Solenoid lockSolenoid lock
-
22241140060 Screw K40 x 10Screw K40 x 10
-
23512058950 O-ringO-ring
-
24512058949 CapCap
-
27512058921 CapCap
-
28404161825 Starter jetStarter jet
-
29512058982 CapCap
-
30512059558 O-ringO-ring
-
31404161822 Starter jetStarter jet
-
32512058925 O-ringO-ring
-
33404161822 Starter jetStarter jet
-
34512059557 CapCap
-
35515175673 Connector housingConnector housing
-
36515175678 LockLock
-
37293000052 PlugPlug
-
38278000632 Female terminalFemale terminal
-
42278000999 SealSeal
-
43278000998 Female terminalFemale terminal
-
44515175588 HousingHousing
-
45515175670 Female terminal hous.Female terminal hous.
-
46515175706 LockLock
