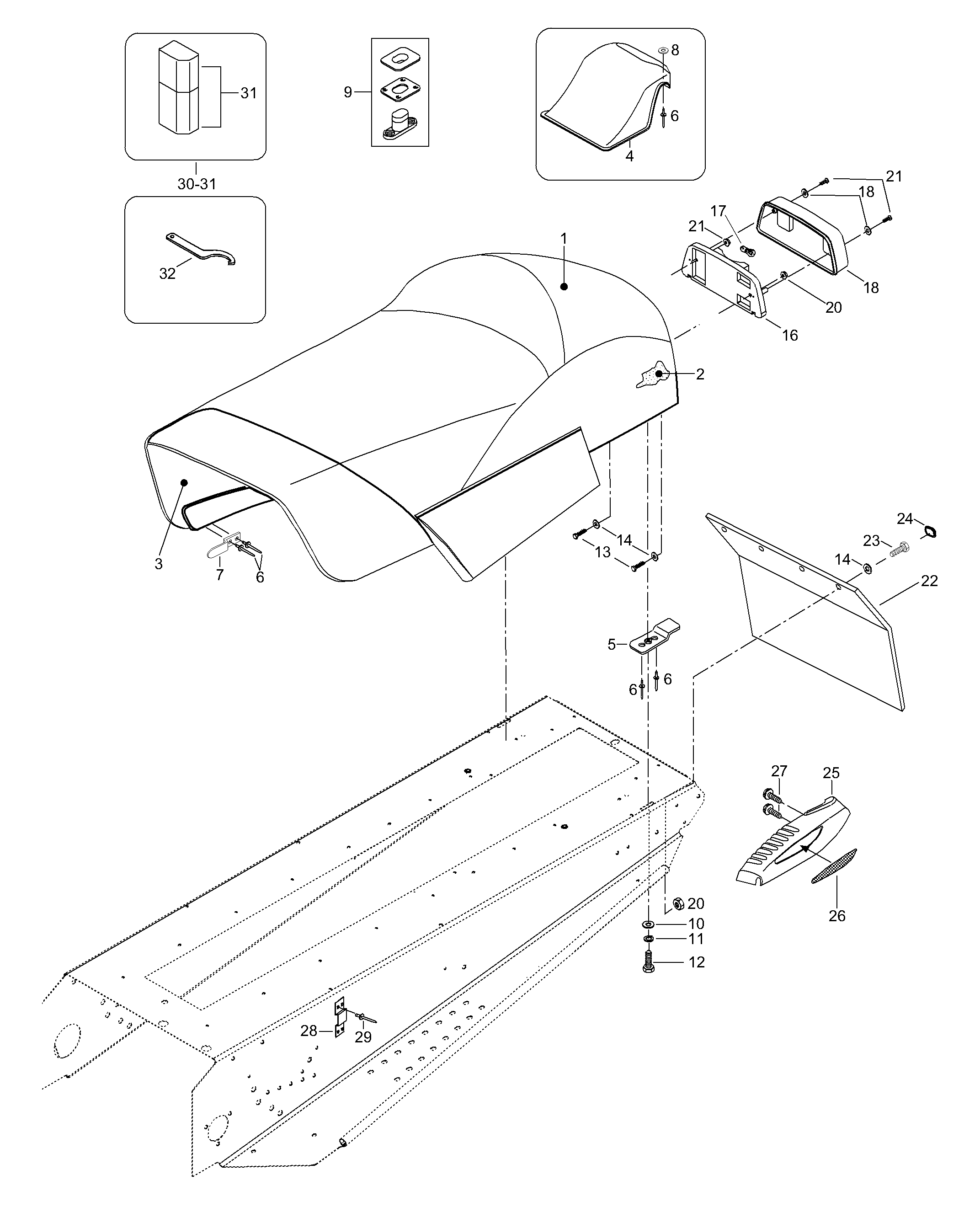

09- Body для BRP Lynx Rave 800/RC - 2004
-
№АртикулНазвание
-
1605148612 Seat coverSeat cover
-
25243866 Seat foamSeat foam
-
35146815 Seat bottomSeat bottom
-
45347993 Rear trunkRear trunk
-
55447928 Fastening plate, rearFastening plate, rear
-
75447909 Fastening plate, frontFastening plate, front
-
820002 WasherWasher
-
9414728000 Seat BuckleSeat Buckle
-
1020010 WasherWasher
-
1120014 Lock washerLock washer
-
1240015 Screw M8 x 30Screw M8 x 30
-
1340002 Screw M6 x 40Screw M6 x 40
-
1420009 WasherWasher
-
16510004061 Taillamp housingTaillamp housing
-
17410504000 BulbBulb
-
18414513700 LensLens
-
19414516400 WasherWasher
-
2033200 Nut M6Nut M6
-
21414516300 Hex. tapping screwHex. tapping screw
-
225246131 Snow guardSnow guard
-
2340078 Screw M6 x 22Screw M6 x 22
-
24415073300 CapCap
-
25861777700 R.H. mouldingR.H. moulding
-
25861777800 L.H. mouldingL.H. moulding
-
26516000241 R.H. rear reflectorR.H. rear reflector
-
26516000242 L.H. rear reflectorL.H. rear reflector
-
2740870 ScrewScrew
-
285447908 Seat fastening plateSeat fastening plate
-
2936489 RivetRivet
-
30605350525 Tool box with tools. Includes items 30 thru 31Tool box with tools. Includes items 30 thru 31
-
31572036310 Tool boxTool box
-
32529032900 Wrench adjustWrench adjust
