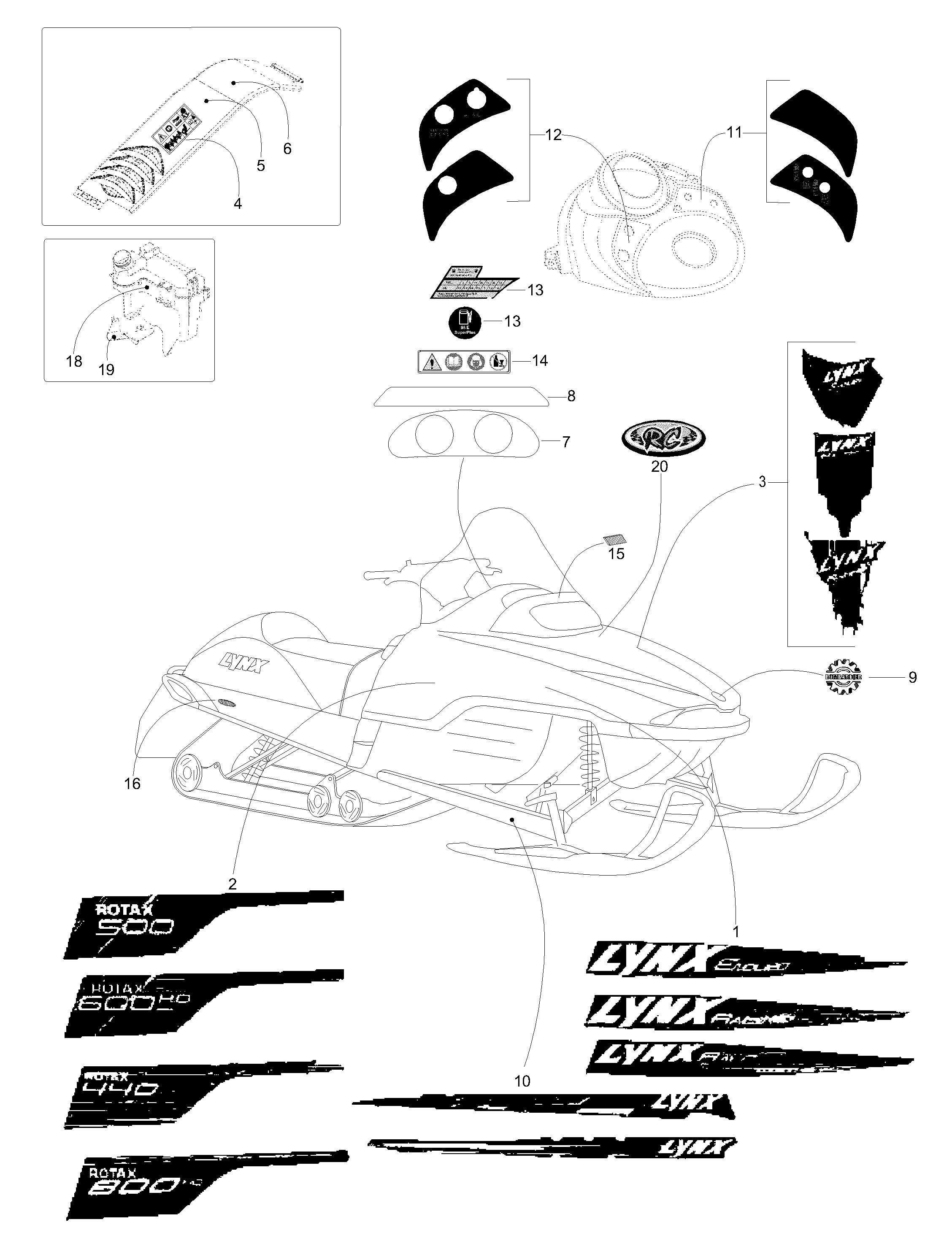

09- Decals для BRP Lynx Rave 800/RC - 2004
-
№АртикулНазвание
-
1605349719 R.H. Hood decal, upperR.H. Hood decal, upper
-
1605349720 L.H. Hood decal, upperL.H. Hood decal, upper
-
2605349721 R.H. lower decal, hoodR.H. lower decal, hood
-
2605349722 L.H. lower decal, hoodL.H. lower decal, hood
-
3605349723 Hood decal, frontHood decal, front
-
4605448801 Warning labelWarning label
-
55447014 Pulley decalPulley decal
-
65447012 Oil check decalOil check decal
-
7605248800 Control panel decalControl panel decal
-
85346800 Instruction decalInstruction decal
-
9516000983 Logo-BombardierLogo-Bombardier
-
10605349739 Decal, swing arm L.H.Decal, swing arm L.H.
-
10605349738 Decal, swing arm R.H.Decal, swing arm R.H.
-
11605448798 Grip heater decalGrip heater decal
-
125446931 Decal D.E.S.S.Decal D.E.S.S.
-
145447124 Instruction symbol decalInstruction symbol decal
-
1521060 Reflector, brightReflector, bright
-
1621135 Reflector, yellowReflector, yellow
-
175447020 Fuel labelFuel label
-
18605449628 Label, oil levelLabel, oil level
-
19605449565 Instruction decalInstruction decal
-
20605450697 RC-decal (RC-models)RC-decal (RC-models)
