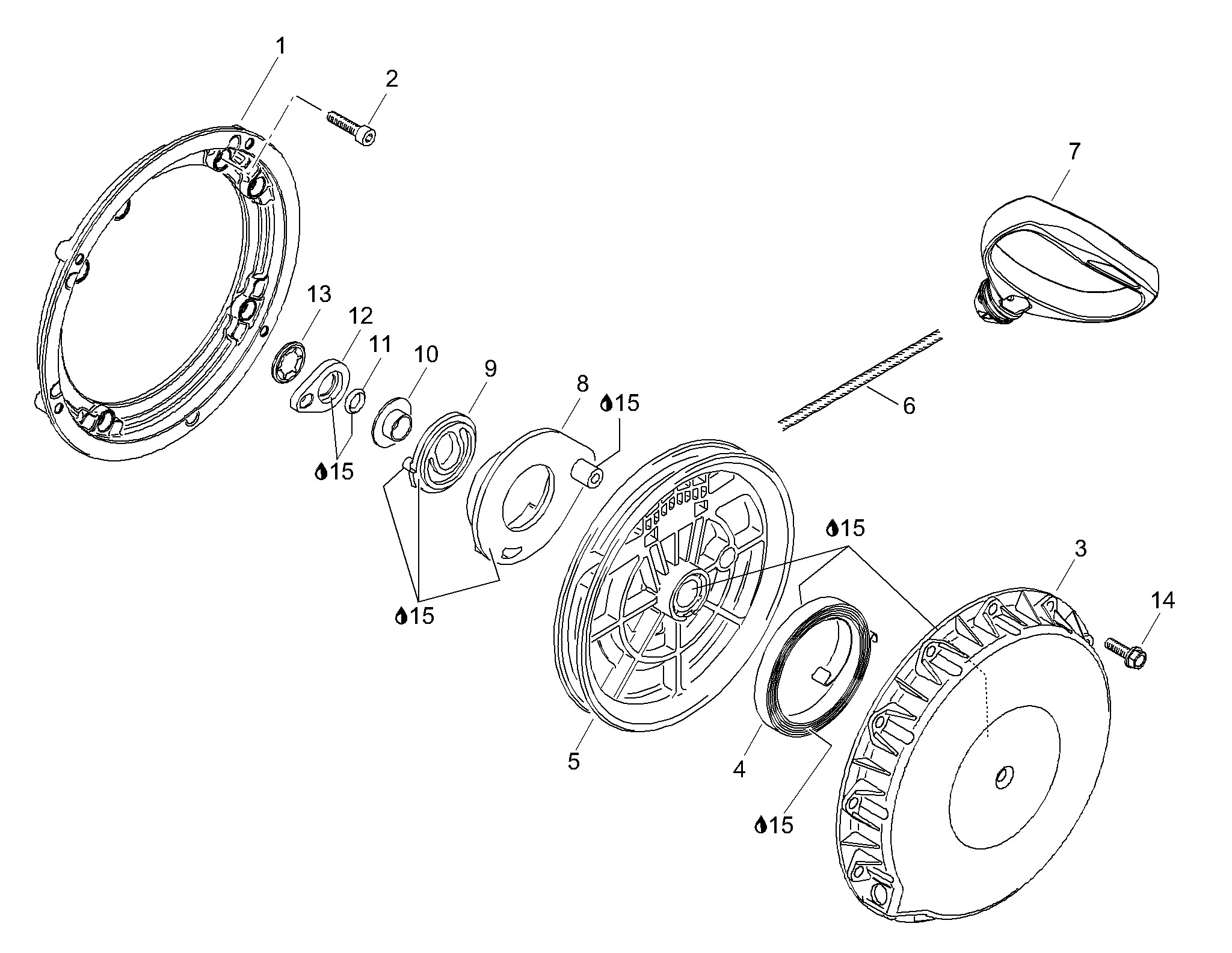

04- Rewind Starter для BRP Lynx Rave 800/RC - 2004
-
№АртикулНазвание
-
1420810867 Connecting flangedConnecting flanged
-
2420241236 Screw M6 x 16Screw M6 x 16
-
3420889765 Rewind starter assy. Includes items 3 thru 13Rewind starter assy. Includes items 3 thru 13
-
3420811403 Starter housingStarter housing
-
4420939115 Rewind spring assyRewind spring assy
-
5420852288 Rope sheaveRope sheave
-
6420852492 Starter rope 2,2mStarter rope 2,2m
-
6412500100 Starting rope 30mStarting rope 30m
-
7572084400 Starter gripStarter grip
-
8420852297 PawlPawl
-
9420852307 Pawl lockPawl lock
-
10420847925 Step collarStep collar
-
11420250400 O-ringO-ring
-
12420852520 Lock leverLock lever
-
13420845560 Locking elementLocking element
-
14420941256 Taptite-screw M6 x 20Taptite-screw M6 x 20
-
15420297433 Molykote G-NMolykote G-N
