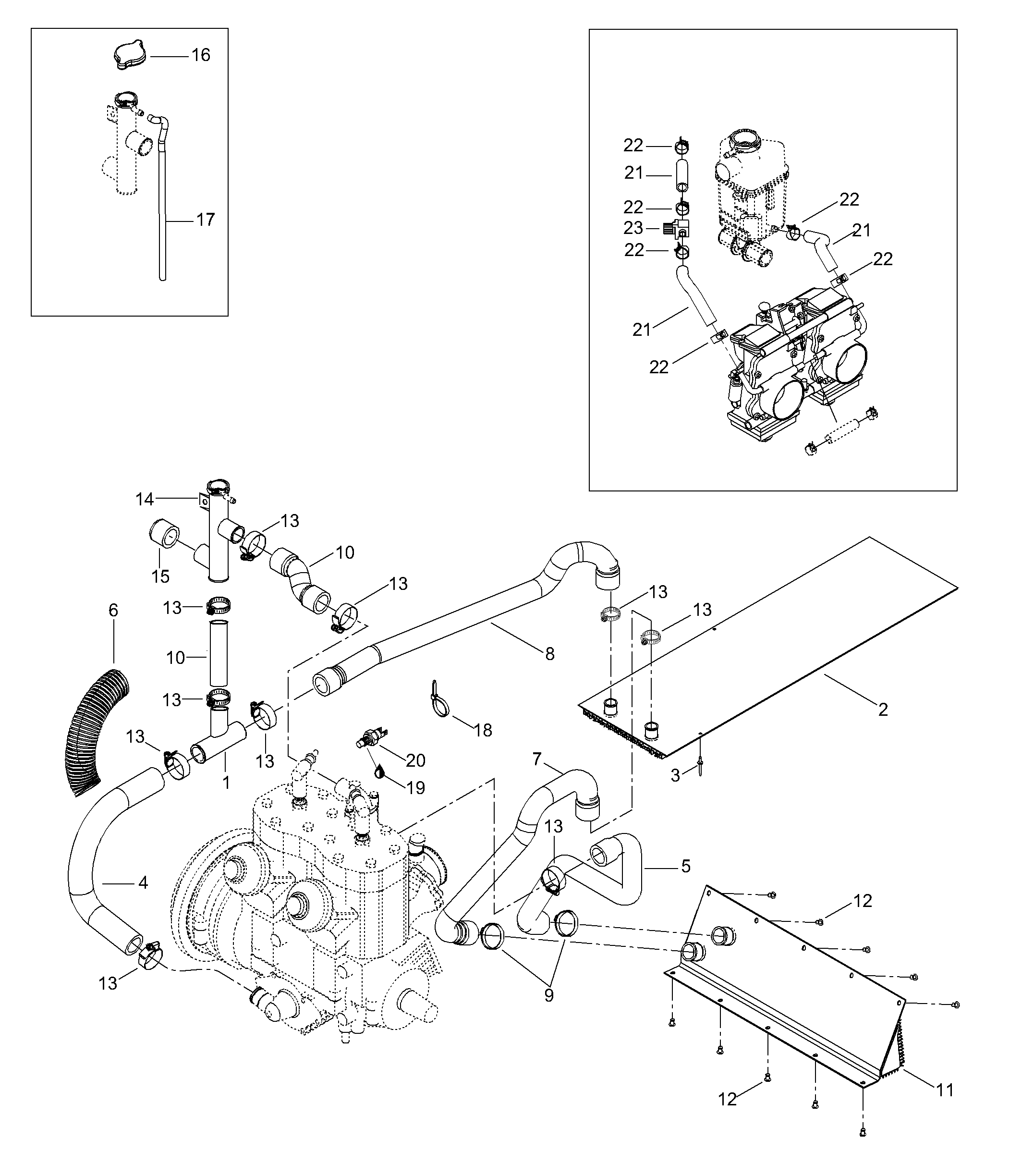

01- Radiator, Hoses для BRP Lynx Rave Cross 800 HO - 2004
-
№АртикулНазвание
-
1414619900 T-pieceT-piece
-
25246130 RadiatorRadiator
-
336083 RivetRivet
-
4509000135 HoseHose
-
5509000046 Engine outlet hoseEngine outlet hose
-
6390003 Protective shield, 1000 mmProtective shield, 1000 mm
-
75346349 HoseHose
-
85346350 Radiator inlet hoseRadiator inlet hose
-
9509000045 Hose clampHose clamp
-
10509000112 HoseHose
-
11517297100 Front radiatorFront radiator
-
1236489 RivetRivet
-
13408800400 Hose clampHose clamp
-
14414684600 Neck-fillerNeck-filler
-
155441703 Hose plugHose plug
-
16509000187 Cap pressureCap pressure
-
1739038 Overflow hose 9.5/6.5Overflow hose 9.5/6.5
-
1827100 Tie rapTie rap
-
19293800018 Loctite 592, 50mlLoctite 592, 50ml
-
20512047000 Sender temperatureSender temperature
-
21509000093 Engine outlet hoseEngine outlet hose
-
22414655700 Hose clampHose clamp
-
23512059324 VentilVentil
