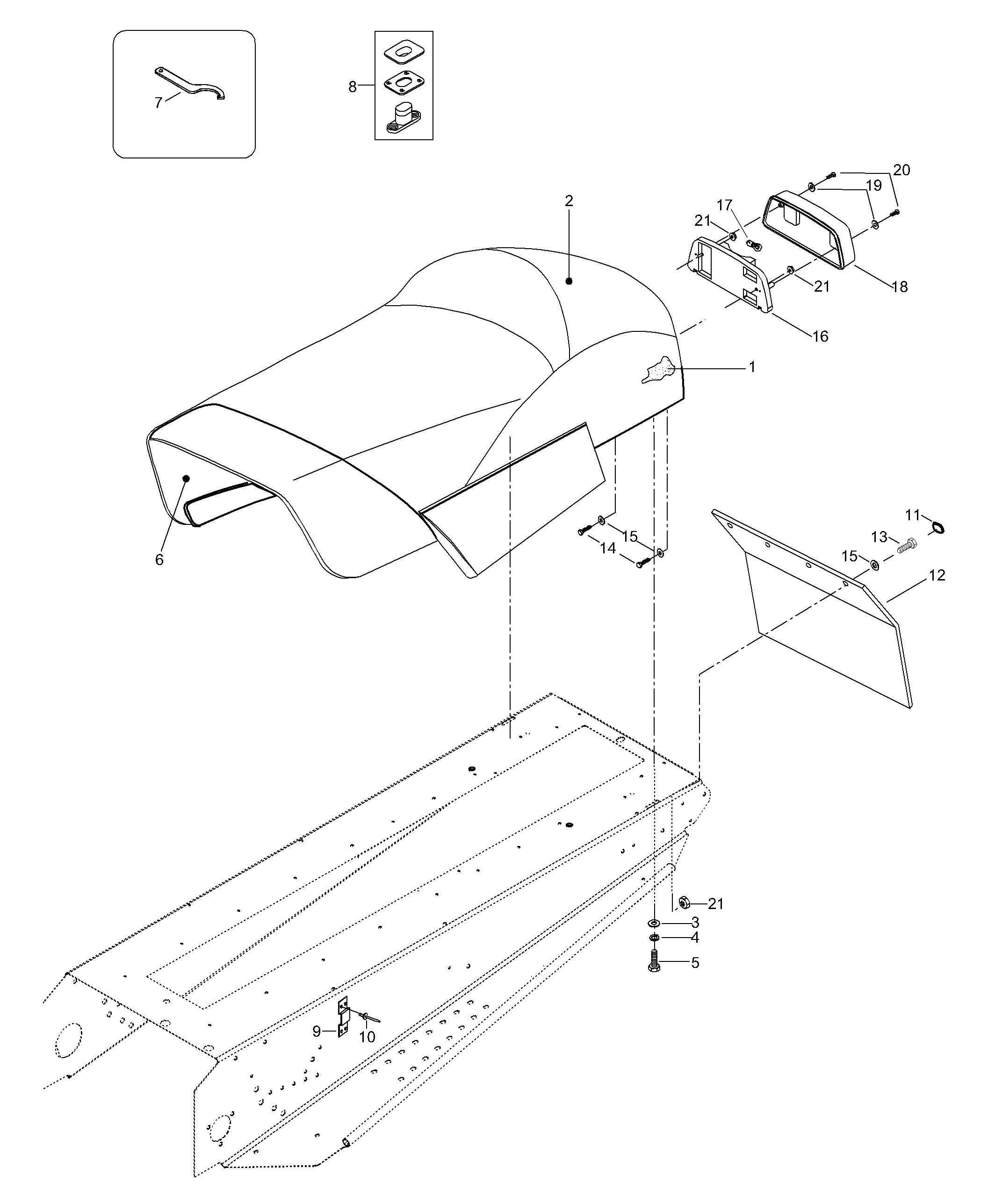

09- Body для BRP Lynx Rave Cross 800 HO - 2004
-
№АртикулНазвание
-
15243866 Seat foamSeat foam
-
25146537 Seat coverSeat cover
-
320010 WasherWasher
-
420014 Lock washerLock washer
-
540015 Screw M8 x 30Screw M8 x 30
-
65146815 Seat bottomSeat bottom
-
7529032900 Wrench adjustWrench adjust
-
85444390 Seat BuckleSeat Buckle
-
95447908 Seat fastening plateSeat fastening plate
-
1036489 RivetRivet
-
11415073300 CapCap
-
125246131 Snow guardSnow guard
-
1340078 Screw M6 x 22Screw M6 x 22
-
1440002 Screw M6 x 40Screw M6 x 40
-
1520009 WasherWasher
-
165341214 Taillamp assy. Includes items 16 thru 21Taillamp assy. Includes items 16 thru 21
-
16414979400 Taillamp housingTaillamp housing
-
17410504000 BulbBulb
-
18414513700 LensLens
-
19414516400 WasherWasher
-
2040613 ScrewScrew
-
2133200 Nut M6Nut M6
