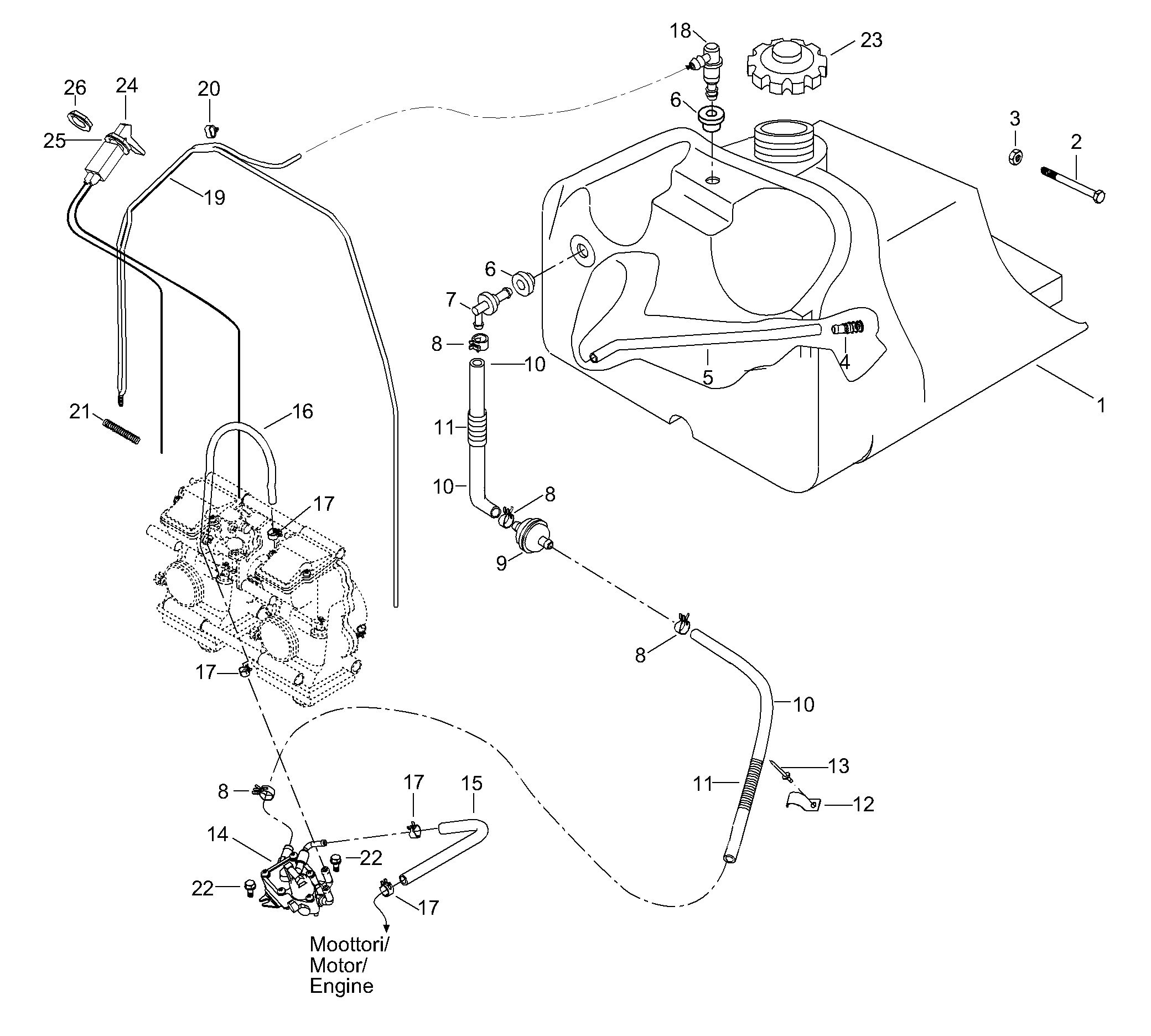

02- Fuel Tank для BRP Lynx Rave Cross 800 HO - 2004
-
№АртикулНазвание
-
15247364 Fuel tankFuel tank
-
240193 Screw M6 x 50Screw M6 x 50
-
333200 Elastig flanged nut M6Elastig flanged nut M6
-
4414872100 Fuel filterFuel filter
-
539048 Fuel line 12.5/7.5, 440 mmFuel line 12.5/7.5, 440 mm
-
628037 RubberRubber
-
75341709 Angle adapterAngle adapter
-
8414415200 ClampClamp
-
9414536500 Fuel filterFuel filter
-
1039046 Hose 11/8Hose 11/8
-
1128015 TubingTubing
-
12415018200 ClipClip
-
1336036 RivetRivet
-
14403901806 Fuel pumpFuel pump
-
1539001 Fuel line 11/6, 190 mmFuel line 11/6, 190 mm
-
1639038 Fuel line 6.5/9.5, 240 mmFuel line 6.5/9.5, 240 mm
-
17414420700 Spring clipSpring clip
-
18533535 Angle adapterAngle adapter
-
1939035 Airhose 5/3, 1800 mmAirhose 5/3, 1800 mm
-
20513032923 Tube clampTube clamp
-
21414818200 SpringSpring
-
2240322 Self tapp. screw M6 x 16Self tapp. screw M6 x 16
-
23580259400 Cap assemblyCap assembly
-
24512059110 Choke cable. Includes items 24 thru 25Choke cable. Includes items 24 thru 25
-
25394103300 Lock washerLock washer
-
26512059094 Plastic nutPlastic nut
