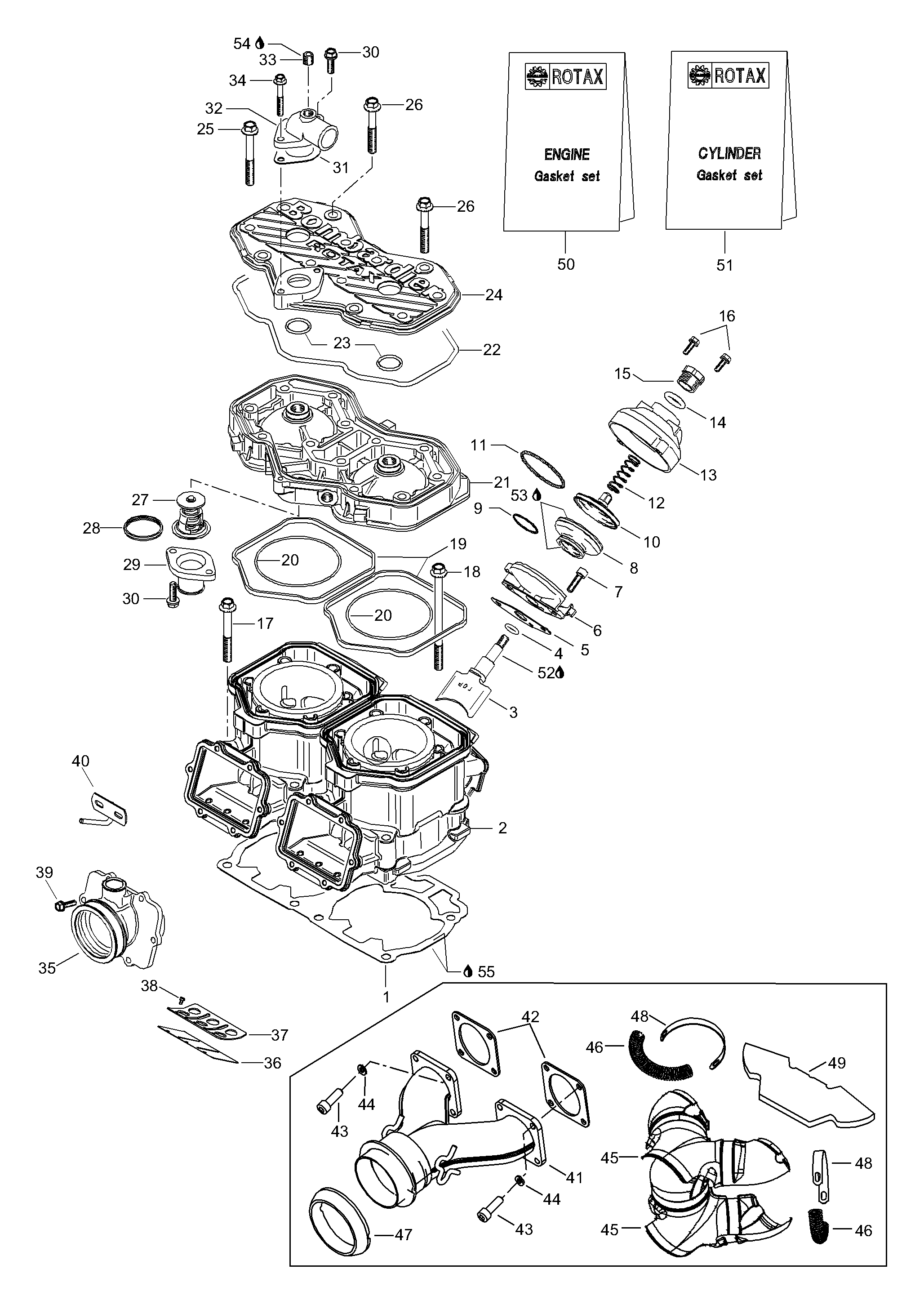

01- Cylinder для BRP Lynx Sport Touring 600 - 2004
-
№АртикулНазвание
-
1420931893 Gasket, double 0.5 mmGasket, double 0.5 mm
-
1420931892 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931894 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931895 Gasket, double 0.8 mmGasket, double 0.8 mm
-
2420613710 CylinderCylinder
-
3420854650 Exhaust valveExhaust valve
-
4420430110 GasketGasket
-
5420931542 GasketGasket
-
6420854455 Valve rod housingValve rod housing
-
7420840861 Allen screw M6 x 25Allen screw M6 x 25
-
8420260729 BellowsBellows
-
9420838253 Hose springHose spring
-
10420854449 Exhaust valve pistonExhaust valve piston
-
11420239048 Compression springCompression spring
-
12420239944 Spring, brownSpring, brown
-
13420911558 Valve coverValve cover
-
14420430220 O-ringO-ring
-
15420241220 Adjustment screwAdjustment screw
-
16420241270 Screw M5 x 25Screw M5 x 25
-
17420640524 Screw M10 x 80Screw M10 x 80
-
18420640534 Screw M10 x 120Screw M10 x 120
-
19420931590 Square ringSquare ring
-
20420850540 O-ringO-ring
-
21420613700 Cylinderhead, silverCylinderhead, silver
-
22420950320 O-ringO-ring
-
23420430782 O-ringO-ring
-
24420923460 Cylinderh. cover, silverCylinderh. cover, silver
-
25420841306 Screw M8 x 65Screw M8 x 65
-
26420941621 Screw M8 x 56,5Screw M8 x 56,5
-
27420922518 ThermostatThermostat
-
28420931272 Thermostat gasketThermostat gasket
-
29420922025 Water outlet socketWater outlet socket
-
30420941250 Screw M6 x 20Screw M6 x 20
-
31420850338 GasketGasket
-
32420922062 Bent otlet socketBent otlet socket
-
33420240480 Plug screwPlug screw
-
34420941451 Screw M6 x 40Screw M6 x 40
-
35420867874 Reed valve assy. Includes items 35 thru 38Reed valve assy. Includes items 35 thru 38
-
36420924680 Reed pedalReed pedal
-
37420924695 Reed pedal stopReed pedal stop
-
38420941215 Screw M3 x 5Screw M3 x 5
-
39420941925 Screw M5 x 16Screw M5 x 16
-
40512059504 HookHook
-
41420973592 Exhaust manifoldExhaust manifold
-
42420850552 GasketGasket
-
4340052 Allen screw M6 x 20Allen screw M6 x 20
-
4420014 Lock washerLock washer
-
45514053593 Enveloppe, manif. exh.Enveloppe, manif. exh.
-
46514053643 SpringSpring
-
47514053487 GasketGasket
-
48514053603 Strap retainingStrap retaining
-
49514053588 Wool insulationWool insulation
-
50420889922 Gasket kit, engineGasket kit, engine
-
51420889926 Gasket kit, cylinderGasket kit, cylinder
-
52420297433 Molykote G-N Slide pasteMolykote G-N Slide paste
-
54420297906 Sealing compoundSealing compound
-
55293800038 Loctite 518, 50 mlLoctite 518, 50 ml
