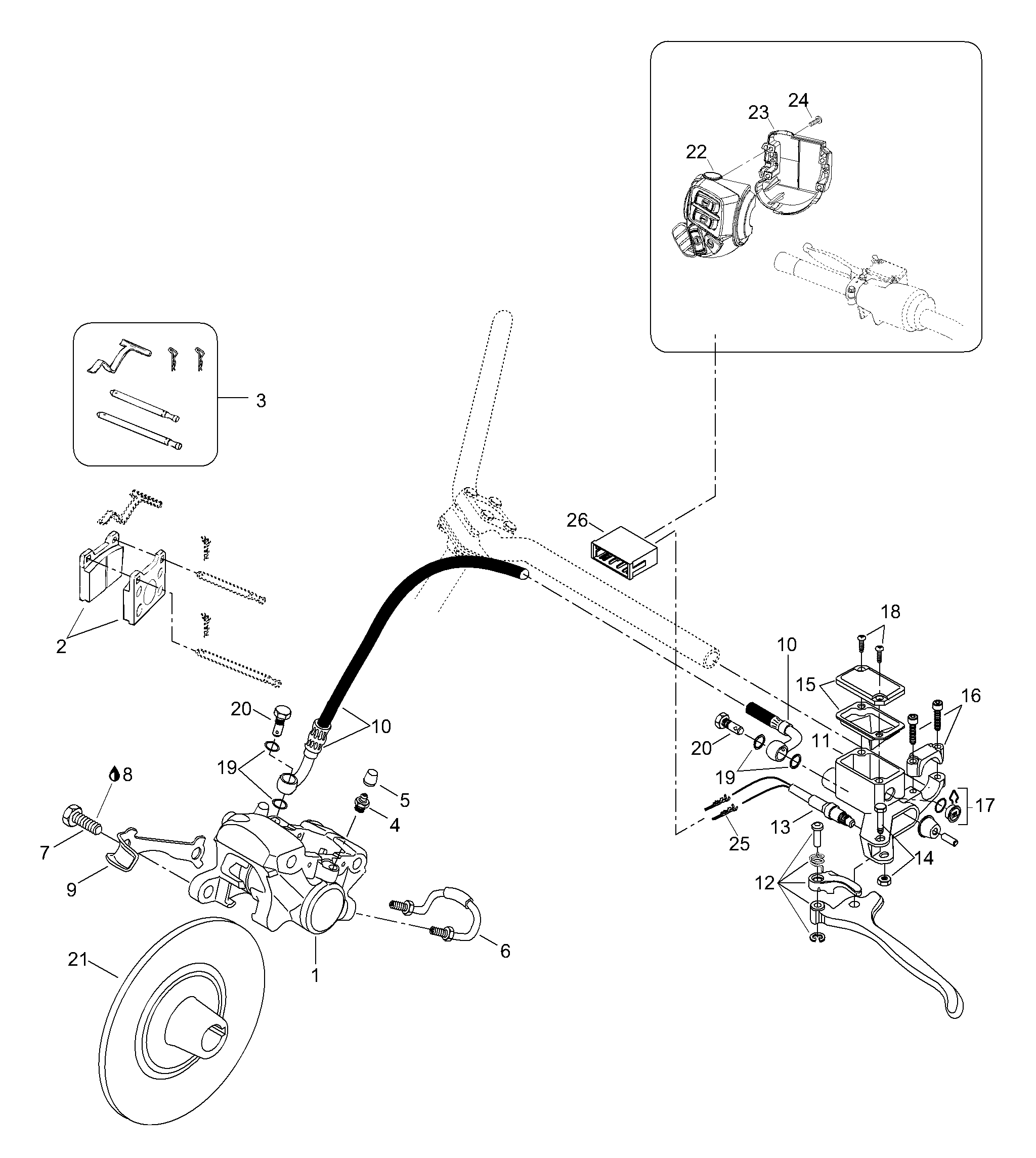

06- Brake Assy для BRP Lynx Sport Touring 600 - 2004
-
№АртикулНазвание
-
1507032351 Caliber. Includes items 1 thru 6Caliber. Includes items 1 thru 6
-
2415084600 Brake lining kitBrake lining kit
-
3414990700 Kit (pin,retainer,spring)Kit (pin,retainer,spring)
-
4414989800 Screw-bleederScrew-bleeder
-
5414989700 BootBoot
-
6414989900 TubeTube
-
7207103544 Screw M10 x 35Screw M10 x 35
-
8293800060 Loctite 243 10mlLoctite 243 10ml
-
9507032316 Locking tabLocking tab
-
10507032237 HoseHose
-
11507032361 Master cylinder. Includes items 11 thru 18Master cylinder. Includes items 11 thru 18
-
12507032268 Lever assyLever assy
-
13507032366 Microswitch assyMicroswitch assy
-
14507032280 Pin ass’yPin ass’y
-
15415029900 CoverCover
-
16415029800 Clamp ass’yClamp ass’y
-
17414990600 WindowWindow
-
18216141260 ScrewScrew
-
19414920600 WasherWasher
-
20414920500 Bolt for hose connect.Bolt for hose connect.
-
21507031300 Brake diskBrake disk
-
22515176062 L.H. switch housingL.H. switch housing
-
23515175926 Plate, housing switchPlate, housing switch
-
2440903 ScrewScrew
-
2542603 Male terminalMale terminal
