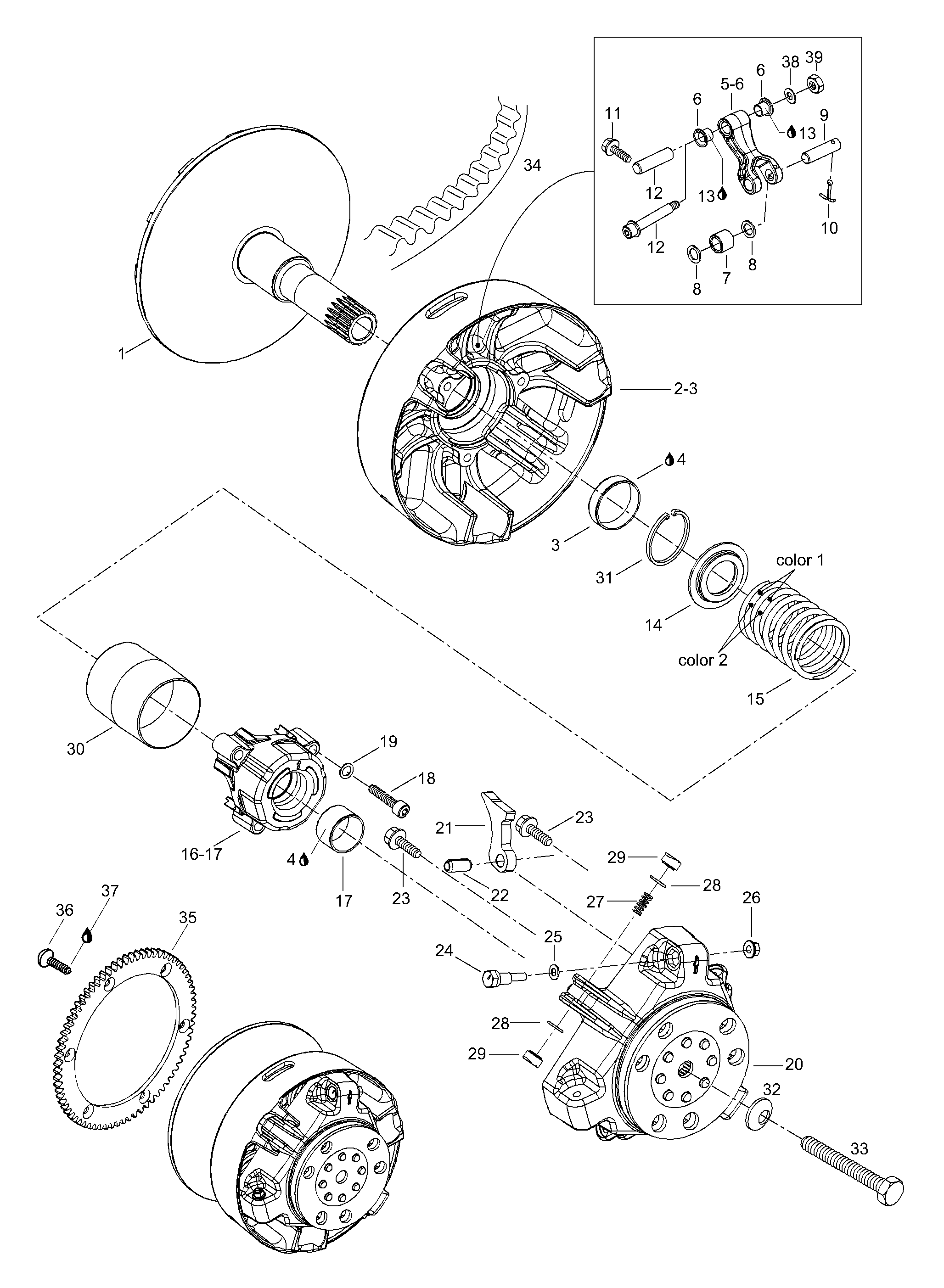

05- Clutch для BRP Lynx Sport Touring 600 - 2004
-
№АртикулНазвание
-
1417222294 Inner half assyInner half assy
-
2417222181 Outer half assy. Includes items 2 thru 3Outer half assy. Includes items 2 thru 3
-
3417006900 Bushing outer halfBushing outer half
-
4413703100 Loctite 609 10ccLoctite 609 10cc
-
5417222306 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flanged bushingFlanged bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
11210361296 ScrewScrew
-
12417009202 Lever axleLever axle
-
14417222312 Spring seatSpring seat
-
15415034900 Spring, violet/blueSpring, violet/blue
-
16417007500 Spring cover assy. Includes items 16 thru 17Spring cover assy. Includes items 16 thru 17
-
17417009204 Bushing Spring coverBushing Spring cover
-
18205084044 Allen screw M6 x 40Allen screw M6 x 40
-
19250200009 Friction-washerFriction-washer
-
20417222213 Governor cupGovernor cup
-
21417222596 Ramp 410Ramp 410
-
22250400009 Dowel tube M8 x 24Dowel tube M8 x 24
-
23250000059 Hex. locking screwHex. locking screw
-
24417005500 Calibration screwCalibration screw
-
25417005600 WasherWasher
-
26233061414 Locking nut M6Locking nut M6
-
27417005700 SpringSpring
-
28732401030 O-ringO-ring
-
29417005800 Slider shoeSlider shoe
-
30417009205 ProtectorProtector
-
31293370037 CirclipCirclip
-
3220110 WasherWasher
-
33417120000 ScrewScrew
-
34417300197 Drive beltDrive belt
-
35417222321 Ring gearRing gear
-
36250000049 ScrewScrew
-
37293800005 Loctite 271, 10 mlLoctite 271, 10 ml
