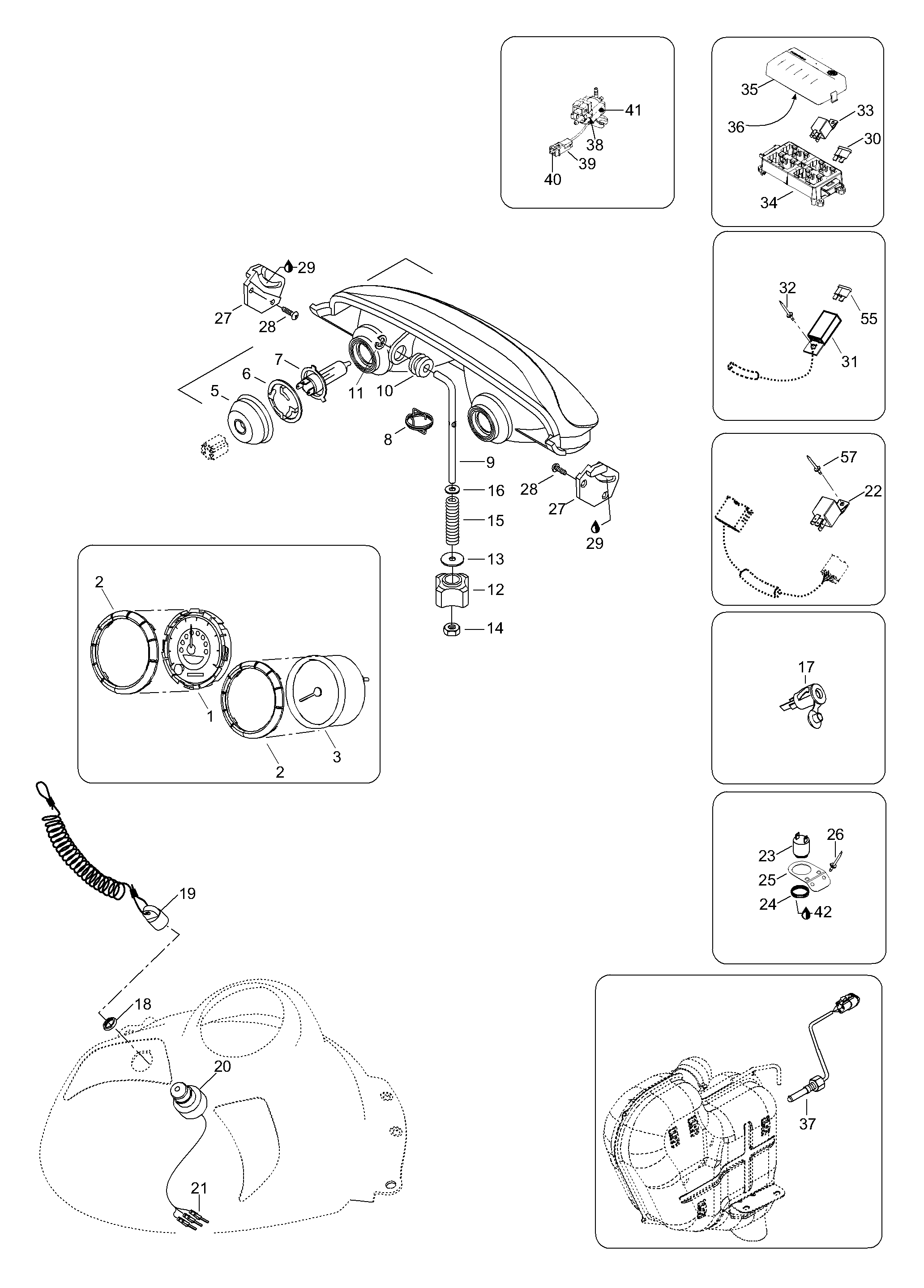

10- Electric для BRP Lynx Sport Touring 600 - 2004
-
№АртикулНазвание
-
1515176000 Speedometer, elec.Speedometer, elec.
-
2515175651 Ring gaugeRing gauge
-
3515176072 TachometerTachometer
-
4515175909 Halogen headlamp assy. Includes items 4 thru 7Halogen headlamp assy. Includes items 4 thru 7
-
5410607100 CoverCover
-
6410608300 Bulb holderBulb holder
-
7410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
85447238 SpringSpring
-
9517295800 Adjuster rodAdjuster rod
-
10415100800 GrommetGrommet
-
11732610072 Nut pushNut push
-
12515175548 HandleHandle
-
1320038 WasherWasher
-
1433010 Nut elastic M6Nut elastic M6
-
15415100600 SpringSpring
-
1620003 WasherWasher
-
1742026 Flush Mounted SocketFlush Mounted Socket
-
18278000508 NutNut
-
19515166900 Cap assy, D.E.S.S.Cap assy, D.E.S.S.
-
20515175145 D.E.S.S. switchD.E.S.S. switch
-
2142603 Male terminalMale terminal
-
22410113200 RelayRelay
-
23415060900 DC-hornDC-horn
-
24414805101 Ring nutRing nut
-
255447941 BracketBracket
-
2636005 RivetRivet
-
27517289400 L.H. headlamp supportL.H. headlamp support
-
27517289300 R.H. headlamp supportR.H. headlamp support
-
2840177 Headlamp screwHeadlamp screw
-
29413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
30410917200 Fuse 30AFuse 30A
-
30278000344 Fuse 5AFuse 5A
-
30278001143 Fuse 20AFuse 20A
-
3142272 Housing, fuseHousing, fuse
-
3236491 RivetRivet
-
36516001613 DecalDecal
-
42293800005 Loctite 271 (10 ml)Loctite 271 (10 ml)
