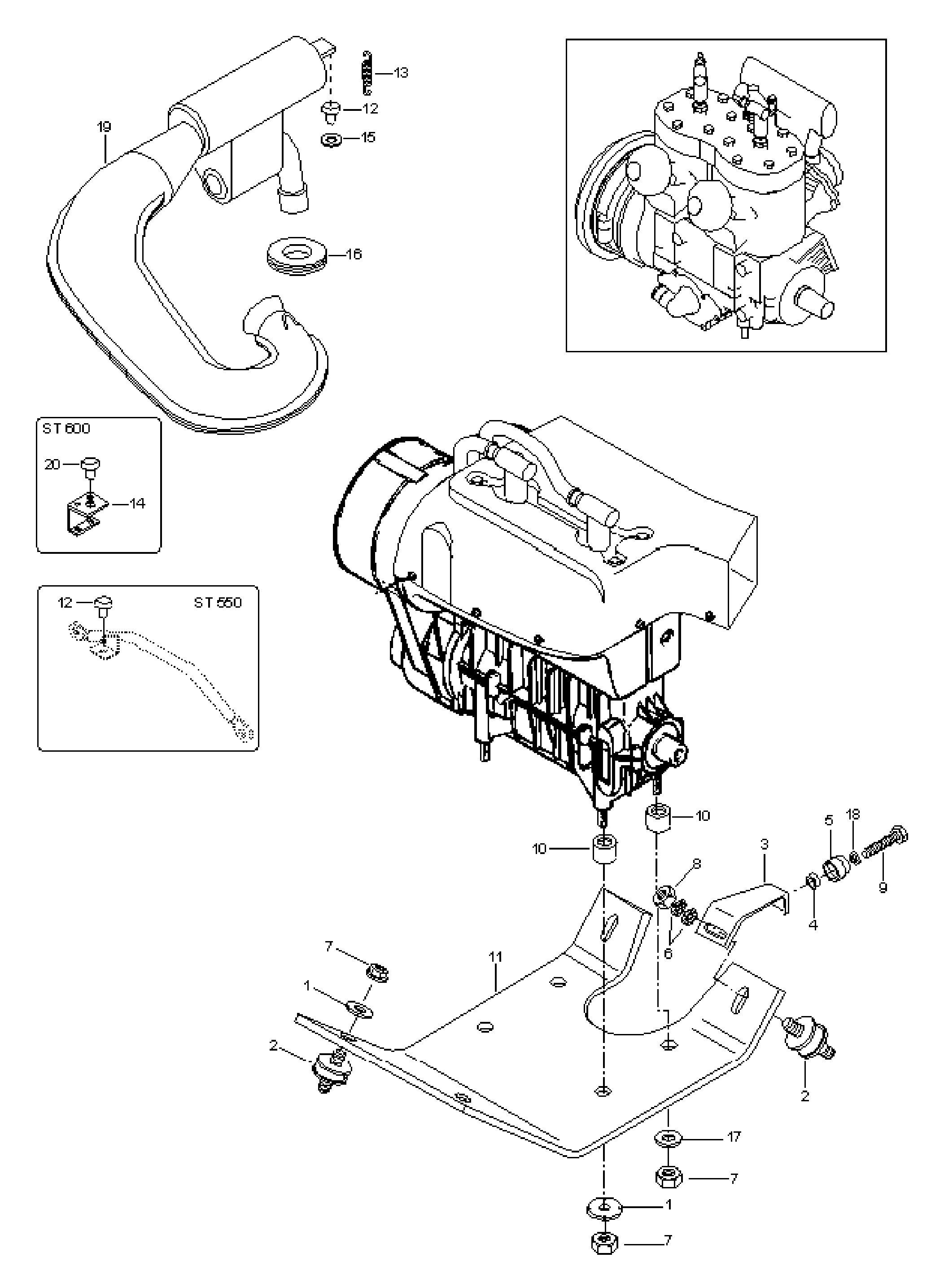

01- Engine Mount Plate/Muffler для BRP Lynx ST 600 - 2004
-
№АртикулНазвание
-
1512056700 Lock washerLock washer
-
2570127700 Rubber mountRubber mount
-
3539902 SupportSupport
-
42846014 Rubber washerRubber washer
-
5605449240 SleeveSleeve
-
620068 Lock washerLock washer
-
733012 Nut elastic M10Nut elastic M10
-
833004 Nut M10Nut M10
-
940121 Screw M8 x 40Screw M8 x 40
-
105446347 SleeveSleeve
-
11605248305 Engine supportEngine support
-
12570048700 Rubber-bumberRubber-bumber
-
13420938795 SpringSpring
-
145345893 SuportSuport
-
1520087 ShimShim
-
16570039000 Exhaust washerExhaust washer
-
1720105 Washer, hardenedWasher, hardened
-
1833003 Nut M8Nut M8
-
19605148762 Tuned pipeTuned pipe
-
20605349421 Rubber-bumberRubber-bumber
