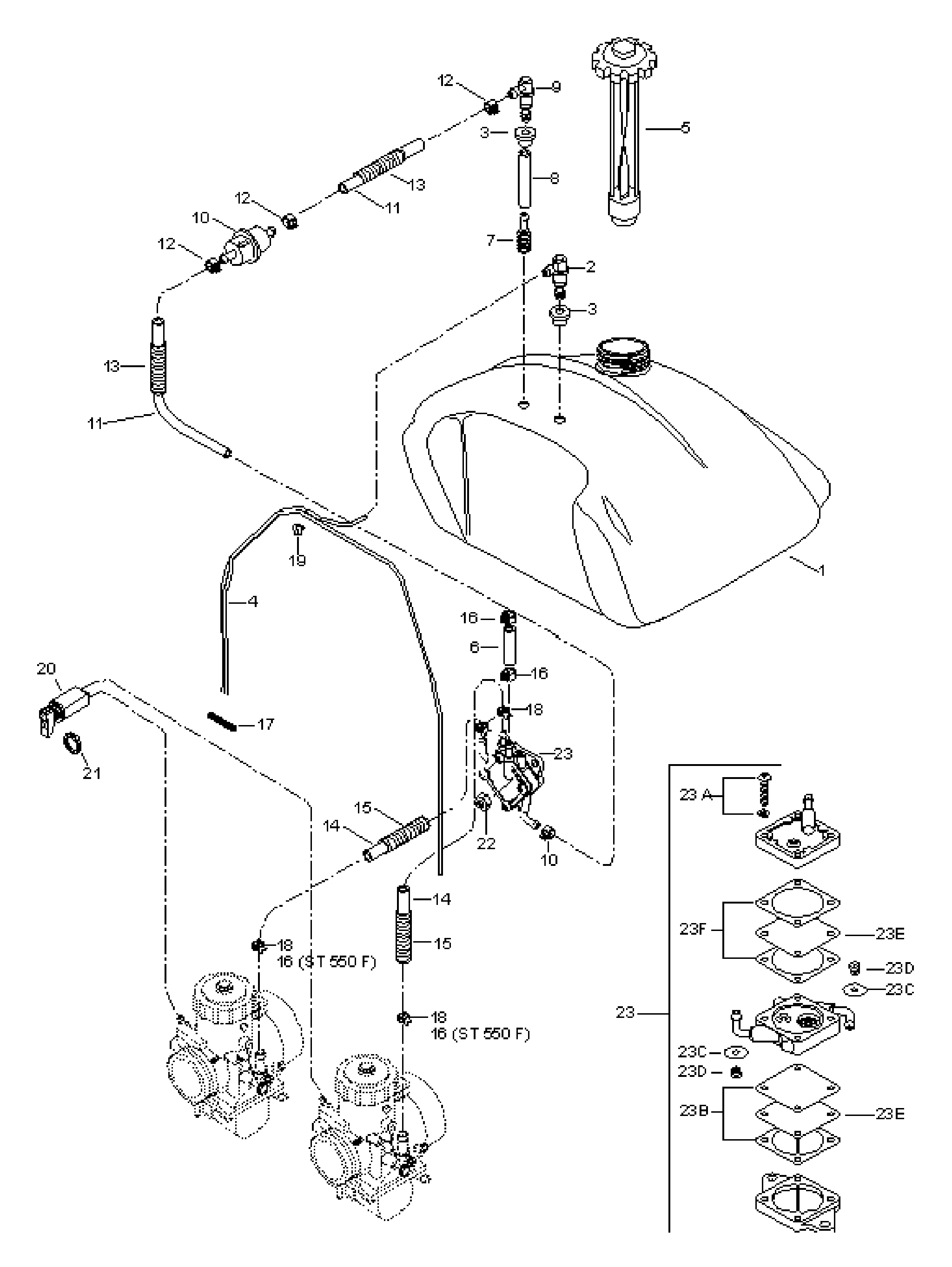

02- Fuel Tank для BRP Lynx ST 600 - 2004
-
№АртикулНазвание
-
1519393 Fuel tankFuel tank
-
2533535 Connector-maleConnector-male
-
328037 GrommetGrommet
-
439035 Airpipe 5/3Airpipe 5/3
-
5572161200 CapCap
-
639001 Fuel hose 11/6Fuel hose 11/6
-
7414872100 Fuel filterFuel filter
-
839048 Fuel hose 12.5/7.5Fuel hose 12.5/7.5
-
95341709 Connector-maleConnector-male
-
10414536500 Fuel filterFuel filter
-
1139046 Fuel hose 11/8Fuel hose 11/8
-
12414415200 ClampClamp
-
1328015 Spiral tubeSpiral tube
-
1439004 Fuel hose 8/5Fuel hose 8/5
-
1528012 Spiral tubeSpiral tube
-
16414420700 ClampClamp
-
1725003 SpringSpring
-
1827086 ClampClamp
-
19513032923 Clamp tubeClamp tube
-
20535482 ChokeChoke
-
21414977200 Plastic nutPlastic nut
-
2233010 Nut elastic M6Nut elastic M6
-
2319113 Fuel pumpFuel pump
