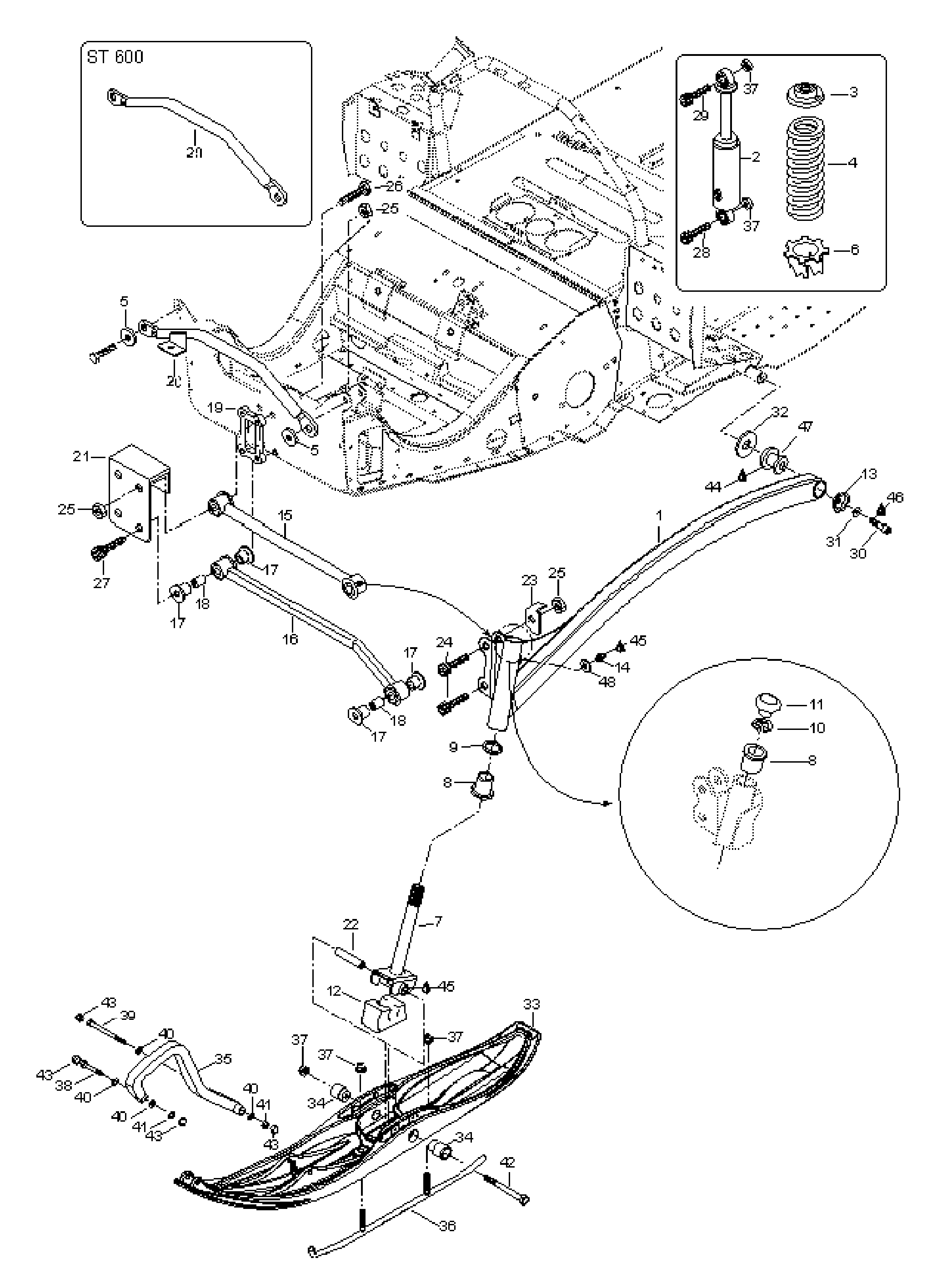

08- Front Suspension для BRP Lynx ST 600 - 2004
-
№АртикулНазвание
-
15248252 R.H. Swing arm, BKR.H. Swing arm, BK
-
15248336 L.H. Swing arm, BKL.H. Swing arm, BK
-
223182 ShockShock
-
3230076 Spring stopperSpring stopper
-
425066 SpringSpring
-
5605449801 WasherWasher
-
6230078 CamCam
-
7506151234 Ski legSki leg
-
8505070003 CushionCushion
-
9505070004 WasherWasher
-
10371910400 CirclipCirclip
-
11572091300 CapCap
-
12605348458 Ski stopperSki stopper
-
13506115800 CupCup
-
1434011 Grease fittingGrease fitting
-
155345902 Arm assyArm assy
-
165245228 Arm Lower WeldArm Lower Weld
-
17506149100 SleeveSleeve
-
18605450024 SleeveSleeve
-
195345384 SpacerSpacer
-
20605348306 BarBar
-
215345716 PlatePlate
-
22506133300 SleeveSleeve
-
23605448861 R.H LimiterR.H Limiter
-
23605448862 L.H LimiterL.H Limiter
-
2440371 Allen screw M12 x 55Allen screw M12 x 55
-
2533013 Nut elastic M12Nut elastic M12
-
2640185 Screw M12 x 75Screw M12 x 75
-
2740370 Allen screw M12 x 75Allen screw M12 x 75
-
2840837 Allen screw M10 x 55Allen screw M10 x 55
-
2940254 Allen screw M10x65Allen screw M10x65
-
3040810 Allen screw M8 x 20Allen screw M8 x 20
-
3120014 Spring washerSpring washer
-
32503146700 ShimShim
-
335147336 Flexible ski linerFlexible ski liner
-
34605348392 SleeveSleeve
-
35505070963 Plastic handlePlastic handle
-
36605349311 Runner assyRunner assy
-
3733074 Elastic flanged nut M10Elastic flanged nut M10
-
3840009 Screw M8 x 50Screw M8 x 50
-
3940264 Screw M8 x 90Screw M8 x 90
-
4020004 WasherWasher
-
4133011 Nut elastic M8Nut elastic M8
-
4240225 Allen screw M10 x 140Allen screw M10 x 140
-
4328056 CapCap
-
44293550014 Grease, super lubeGrease, super lube
-
45413711500 Synthetic greaseSynthetic grease
-
46293800060 Loctite 243, 10mlLoctite 243, 10ml
-
47570062200 Rubber damperRubber damper
-
4820007 WasherWasher
