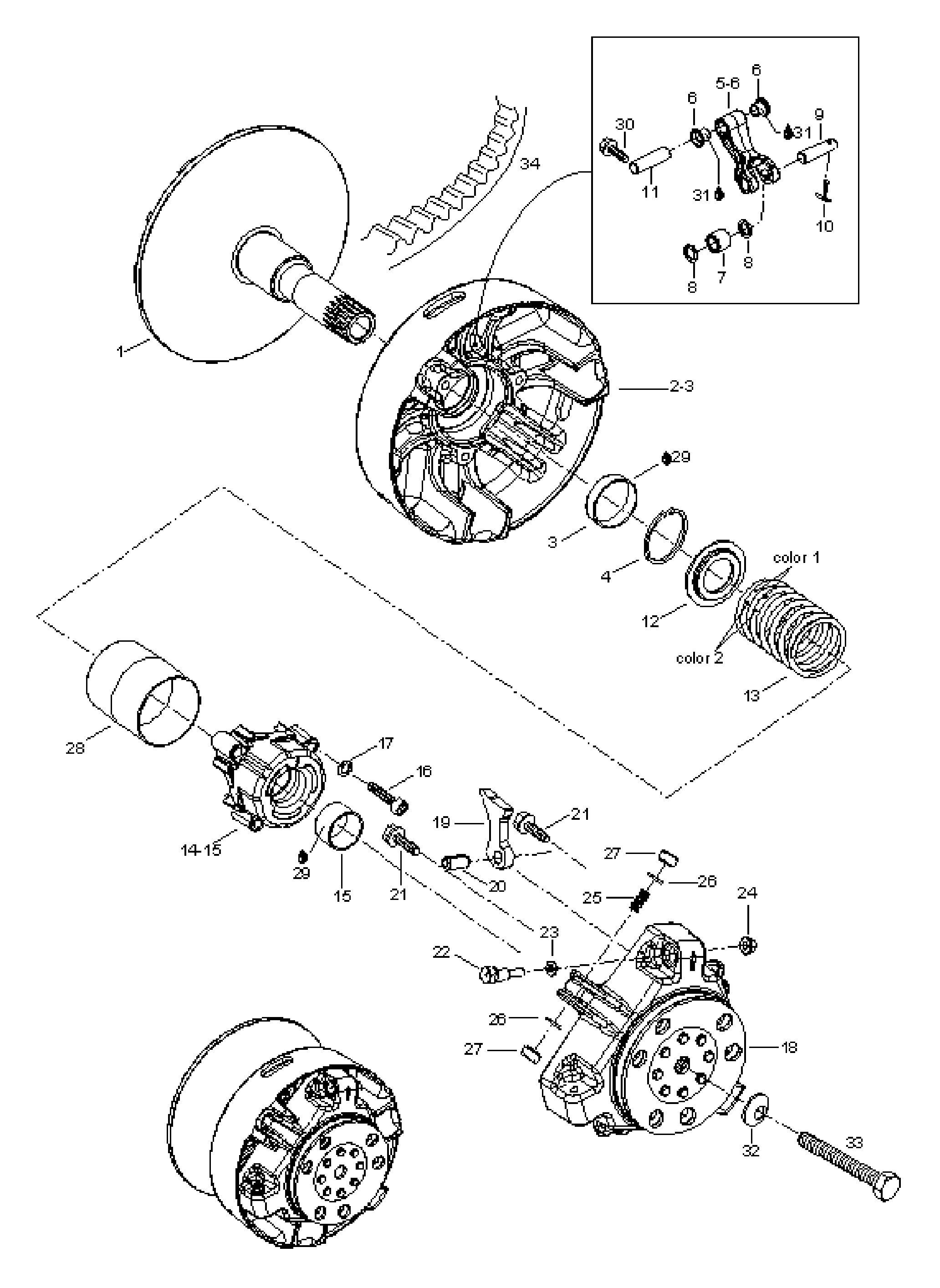

05- Clutch для BRP Lynx ST 600 - 2004
-
№АртикулНазвание
-
1417222294 Fix flangeFix flange
-
2417222181 Sliding flange. Includes items 2 thru 3Sliding flange. Includes items 2 thru 3
-
3417006900 Bushing outer halfBushing outer half
-
4293370037 CirclipCirclip
-
5417222306 Lever assy. Includes items 5 thru 6Lever assy. Includes items 5 thru 6
-
6417004305 Flange bushingFlange bushing
-
7417003900 Roller assyRoller assy
-
8417004302 Thrust washerThrust washer
-
9417222594 PinPin
-
10732958001 Cotter pinCotter pin
-
11417009202 Lever axleLever axle
-
12417222312 Spring seatSpring seat
-
13414993000 Spring yellow/redSpring yellow/red
-
14417007500 Spring cover assy. Includes items 14 thru 15Spring cover assy. Includes items 14 thru 15
-
15417009204 Spring cover bushingSpring cover bushing
-
16205084044 Allen screw M6 x 40Allen screw M6 x 40
-
17250200009 Flat washerFlat washer
-
18417222213 Gouvernor cup assyGouvernor cup assy
-
19417222444 Ramp 600Ramp 600
-
20250400009 Dowl tubeDowl tube
-
21250000059 Hex. locking screw M6 x 1Hex. locking screw M6 x 1
-
22417005500 Calibration screwCalibration screw
-
23417005600 WasherWasher
-
24233061414 Locking nut M6Locking nut M6
-
25417005700 SpringSpring
-
26732401030 O-RingO-Ring
-
27417005800 Shoe sliderShoe slider
-
28417009205 ProtectorProtector
-
29413703100 Loctite 609, 10ccLoctite 609, 10cc
-
30210361296 Forming screwForming screw
-
3220110 Conical washer M12Conical washer M12
-
33417120000 ScrewScrew
-
34417300155 Drive beltDrive belt
