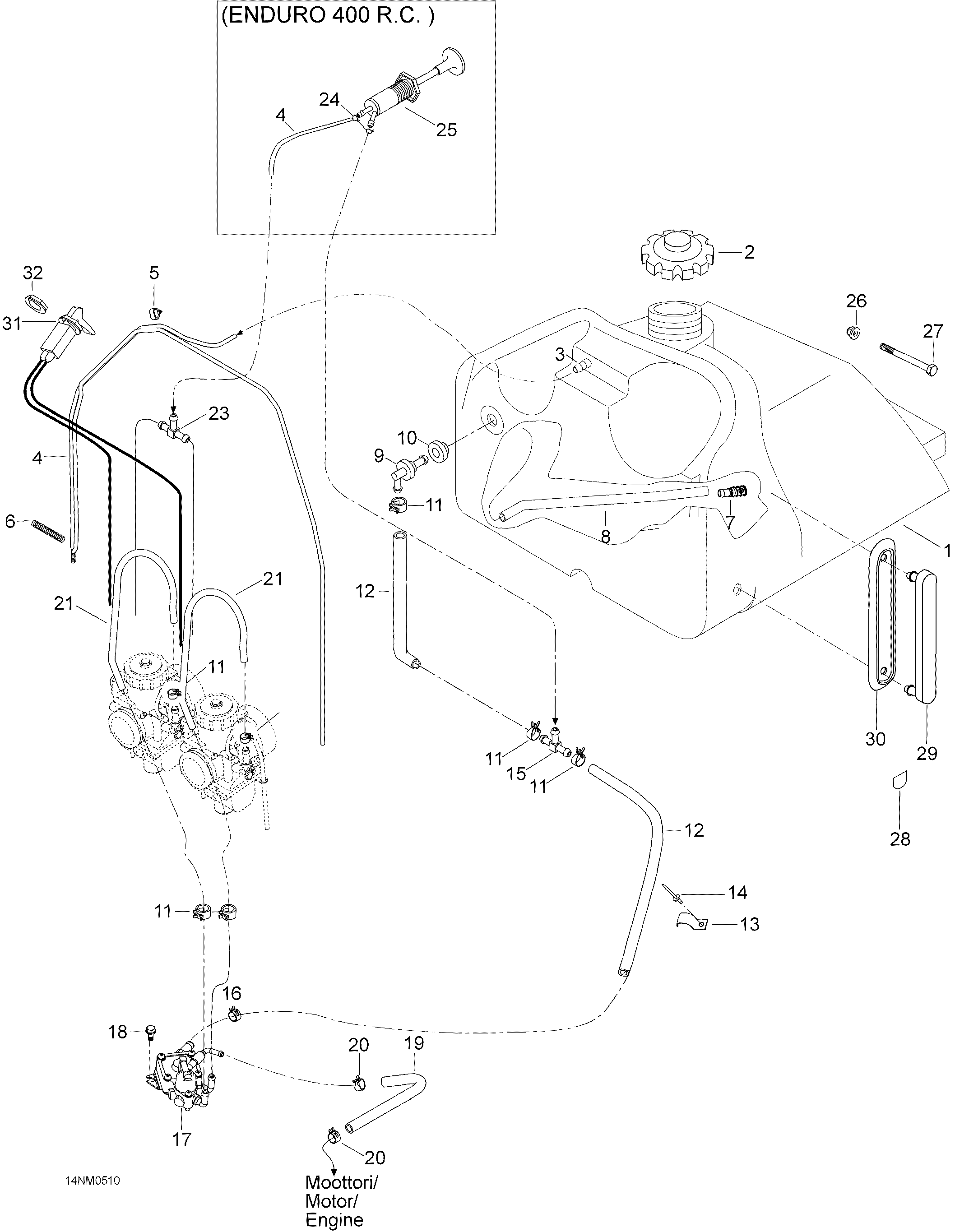

02- Fuel System, 550, 550RC для BRP Lynx Enduro 550RC - 2005
-
№АртикулНазвание
-
15146246 Fuel tank, holesFuel tank, holes
-
2580259400 CapCap
-
319051 FittingFitting
-
439035 Fuel lineFuel line
-
5513032923 Tube ClampTube Clamp
-
625003 SpringSpring
-
7414872100 Fuel FilterFuel Filter
-
839048 Fuel lineFuel line
-
95341709 Angle adapterAngle adapter
-
1028037 GrommetGrommet
-
11414655700 Spring Clamp. Enduro 550_Enduro 550 R.C.Spring Clamp. Enduro 550_Enduro 550 R.C.
-
12513033022 HoseHose
-
13415018200 ClipClip
-
1436036 RivetRivet
-
16513032979 Spring ClampSpring Clamp
-
17403901813 Fuel PumpFuel Pump
-
1840322 Self tapp. screw M6 x 16Self tapp. screw M6 x 16
-
1939001 Fuel lineFuel line
-
20414420700 Spring ClampSpring Clamp
-
21513033022 HoseHose
-
22414655700 Spring ClampSpring Clamp
-
2633200 Elastig flanged nut M6Elastig flanged nut M6
-
2740002 Hex. screw M6 x 40Hex. screw M6 x 40
-
28549200 Fuel labelFuel label
-
29572015900 Fuel gaugeFuel gauge
-
30570018000 Housing gaugeHousing gauge
-
31512059441 Choke Cable. Enduro 550_Enduro 550 R.C.Choke Cable. Enduro 550_Enduro 550 R.C.
-
32512059094 Plastic Nut. Enduro 550_Enduro 550 R.C.Plastic Nut. Enduro 550_Enduro 550 R.C.
