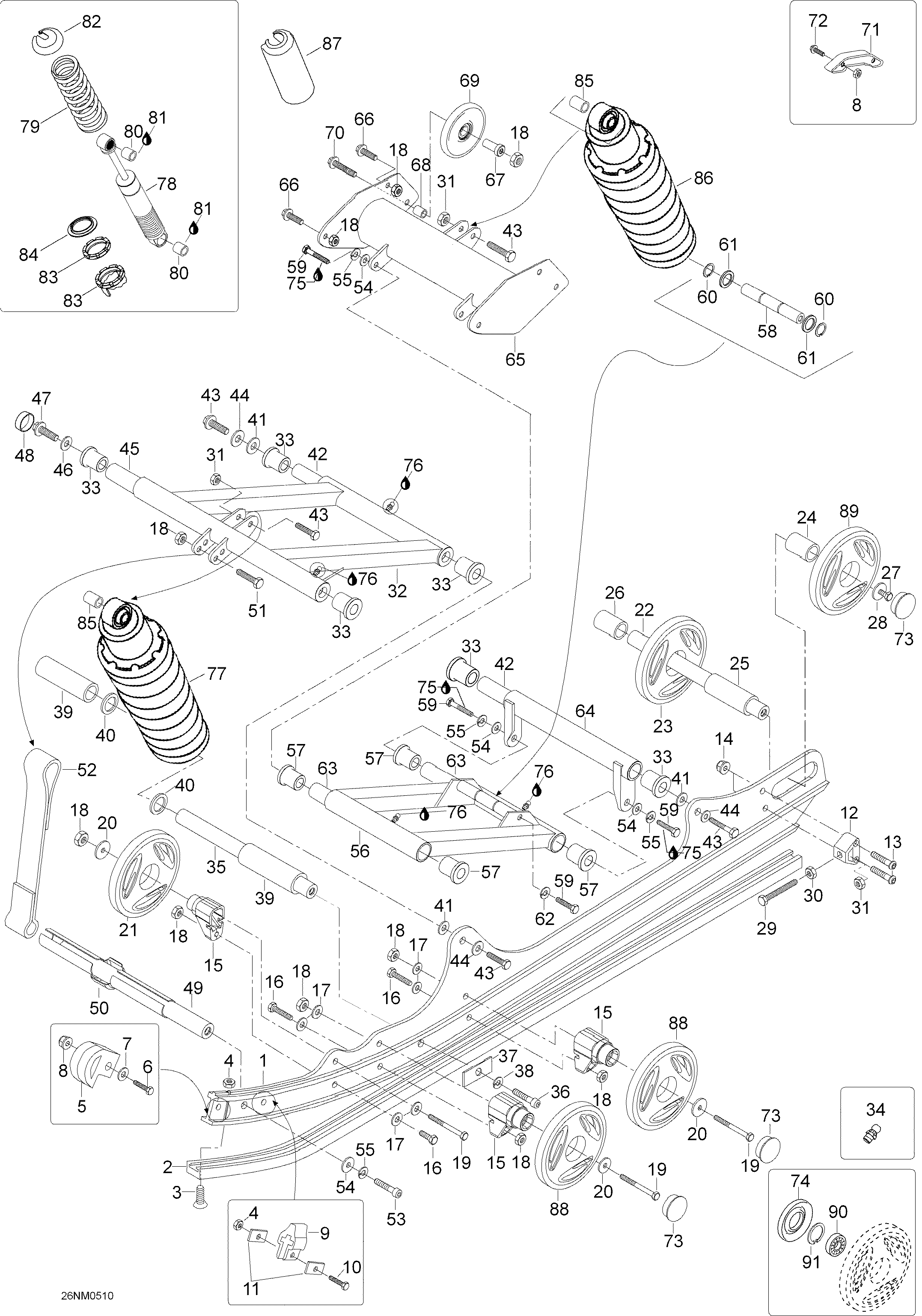

08- Rear Suspension, 400RC, 550RC для BRP Lynx Enduro 550RC - 2005
-
№АртикулНазвание
-
1605250693 RunnerRunner
-
25346796 ShoeShoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer 6mmWasher 6mm
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber stopperRubber stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
125341633 TensionerTensioner
-
1340392 Socket head screw M8 x 45Socket head screw M8 x 45
-
1433201 Elastic flanged nut M8Elastic flanged nut M8
-
15605450182 SupportSupport
-
1640037 Hex. screw M8 x 25Hex. screw M8 x 25
-
1720104 Washer, hardened 8mmWasher, hardened 8mm
-
1833011 Elastic stop nut M8Elastic stop nut M8
-
1940089 Hex. screw M8 x 75Hex. screw M8 x 75
-
20503183100 Washer, hardened 8mmWasher, hardened 8mm
-
21503191029 Idler wheel, 135mmIdler wheel, 135mm
-
225341511 ShaftShaft
-
23503189478 Idler fheel, 165mmIdler fheel, 165mm
-
245441512 SleeveSleeve
-
255441513 SleeveSleeve
-
265444099 SleeveSleeve
-
2740050 Hex. screw M10 x 35Hex. screw M10 x 35
-
28503183300 Washer, hardened M10Washer, hardened M10
-
2940239 Hex. screw M10 x 100Hex. screw M10 x 100
-
3033004 Nut M10Nut M10
-
3133012 Elastic stop nut M10Elastic stop nut M10
-
325145588 Front armFront arm
-
3331024 CushionCushion
-
3434011 Grease nippleGrease nipple
-
35605350690 ShaftShaft
-
3640371 Socket head screw M12 x 55Socket head screw M12 x 55
-
37605449294 Support plateSupport plate
-
3820074 Lock washer 12mmLock washer 12mm
-
39605349896 SleeveSleeve
-
4031013 ShimShim
-
4120116 WasherWasher
-
425346900 ShaftShaft
-
4340016 Hex. screw M10 x 45Hex. screw M10 x 45
-
44512056700 Lock washerLock washer
-
455346135 ShaftShaft
-
4620090 WasherWasher
-
4740243 Hex. screw M12 x 60Hex. screw M12 x 60
-
485448025 CapCap
-
49
-
50605349381 LimiterLimiter
-
5140008 Hex. screw M8 x 45Hex. screw M8 x 45
-
52605449385 Stopper strapStopper strap
-
5340134 Socket head screw M10 x 45Socket head screw M10 x 45
-
5420105 Washer, hardened, 10mmWasher, hardened, 10mm
-
5520047 Lock washer B10Lock washer B10
-
56605349313 Rear armRear arm
-
5731027 CushionCushion
-
58605451897 ShaftShaft
-
5940014 Hex. screw M10 x 40Hex. screw M10 x 40
-
6031007 CirclipCirclip
-
6131091 ShimShim
-
6220068 Lock washer 10mmLock washer 10mm
-
635346865 ShaftShaft
-
645345535 Rear armRear arm
-
65605249273 Upper armUpper arm
-
6640058 Locking screw M8 x 20Locking screw M8 x 20
-
675446700 SleeveSleeve
-
685446701 SleeveSleeve
-
6946027 Idler wheelIdler wheel
-
7040376 Locking screw M8 x 80Locking screw M8 x 80
-
715343191 Slide partSlide part
-
7240064 Locking screw M6 x 40Locking screw M6 x 40
-
73570063600 ProtectorProtector
-
74572089000 Labyrinth sealLabyrinth seal
-
75293800005 Loctite 271, 10mlLoctite 271, 10ml
-
76293550033 Synthetic greaseSynthetic grease
-
77605350699 Shock ass'y, front arm. Includes 77 to 84, Enduro 400 R.C._Enduro 550 R.C.Shock ass'y, front arm. Includes 77 to 84, Enduro 400 R.C._Enduro 550 R.C.
-
7823173 Shock, front arm. Enduro 400 R.C._Enduro 550 R.C.Shock, front arm. Enduro 400 R.C._Enduro 550 R.C.
-
7823174 Shock, rear arm. Enduro 400 R.C._Enduro 550 R.C.Shock, rear arm. Enduro 400 R.C._Enduro 550 R.C.
-
7925064 Spring, front arm. Enduro 400 R.C._Enduro 550 R.C.Spring, front arm. Enduro 400 R.C._Enduro 550 R.C.
-
7925055 Spring, rear arm. Enduro 400 R.C._Enduro 550 R.C.Spring, rear arm. Enduro 400 R.C._Enduro 550 R.C.
-
8031094 CushionCushion
-
81320006 Loctite 641, 50mlLoctite 641, 50ml
-
825346750 Spring stopper. Enduro 400 R.C._Enduro 550 R.C.Spring stopper. Enduro 400 R.C._Enduro 550 R.C.
-
83230048 Adjusting ring. Enduro 400 R.C._Enduro 550 R.C.Adjusting ring. Enduro 400 R.C._Enduro 550 R.C.
-
84230049 Guide spring. Enduro 400 R.C._Enduro 550 R.C.Guide spring. Enduro 400 R.C._Enduro 550 R.C.
-
855446652 SleeveSleeve
-
86605350700 Shock ass'y, rear arm. Includes 78 to 84, Enduro 400 R.C._Enduro 550 R.C.Shock ass'y, rear arm. Includes 78 to 84, Enduro 400 R.C._Enduro 550 R.C.
-
875346754 ProtectorProtector
-
88572097603 Support wheel 135/Viper redSupport wheel 135/Viper red
-
89503189477 Support wheel 165/Viper redSupport wheel 165/Viper red
-
90503190795 Ball bearingBall bearing
-
91371901700 CirclipCirclip
