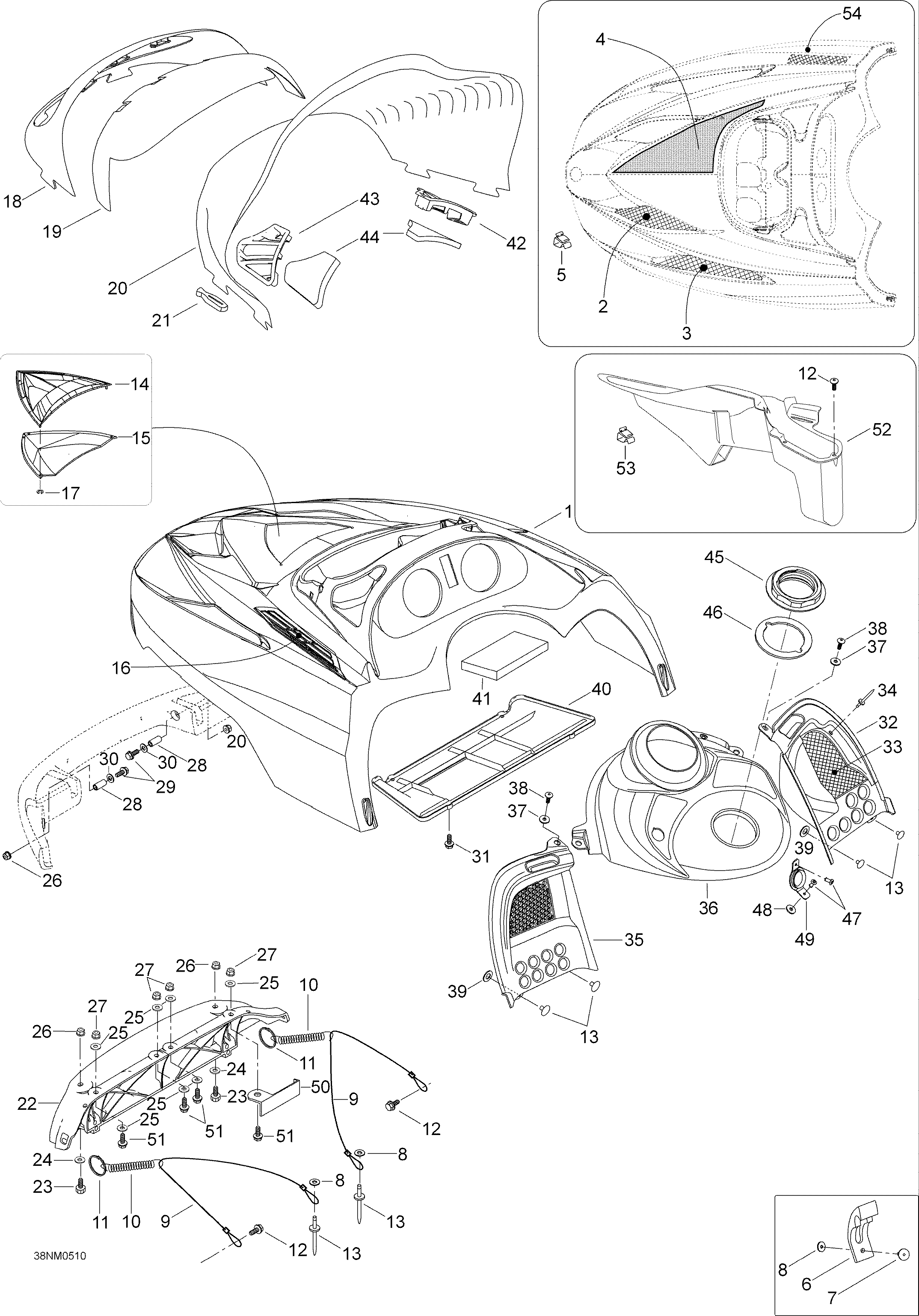

09- Hood, 550RC для BRP Lynx Enduro 550RC - 2005
-
№АртикулНазвание
-
1605152256 Hood, Viper Red. Includes 1 to 5, Enduro 400 R.C._Enduro 550 R.C.Hood, Viper Red. Includes 1 to 5, Enduro 400 R.C._Enduro 550 R.C.
-
25346887 L.H. Front grillL.H. Front grill
-
25346888 R.H. Front grillR.H. Front grill
-
35346889 L.H. Rear grillL.H. Rear grill
-
4414631900 Acoustic FoamAcoustic Foam
-
5517302785 ClipClip
-
6570027100 Hood LatchHood Latch
-
736037 RivetRivet
-
820008 Washer 5,3 mmWasher 5,3 mm
-
9549882 Retainer cableRetainer cable
-
10415043300 SpringSpring
-
11415058300 RingRing
-
1240177 Screw M4.8 x 16Screw M4.8 x 16
-
1336036 RivetRivet
-
145247486 GrillGrill
-
155247487 Inlet ductInlet duct
-
165247488 GrillGrill
-
1741034 CirclipCirclip
-
18517302158 Headlamp Moulding, Deep BlackHeadlamp Moulding, Deep Black
-
19517302003 Windshield SupportWindshield Support
-
20517302002 Low Windshield. Enduro 400 R.C._Enduro 550 R.C.Low Windshield. Enduro 400 R.C._Enduro 550 R.C.
-
21570023800 Windshield LatchWindshield Latch
-
22517302631 HingeHinge
-
2340381 Socket head screw M6 x 20Socket head screw M6 x 20
-
2420117 WasherWasher
-
2520009 Washer A6,4Washer A6,4
-
2633200 Elastic flanged nut M6Elastic flanged nut M6
-
2733010 Elastic stop nut M6Elastic stop nut M6
-
28517302179 BushingBushing
-
2940003 Hex. screw M6 x 35Hex. screw M6 x 35
-
3020003 Washer A6,4Washer A6,4
-
31243141640 Hex Screw M4.8 X 16Hex Screw M4.8 X 16
-
32605350855 R.H. Console. Enduro 550 R.C.R.H. Console. Enduro 550 R.C.
-
33605350359 R.H. GrillR.H. Grill
-
3436005 RivetRivet
-
35517302006 LH ConsoleLH Console
-
36605352055 Center consoleCenter console
-
3720117 WasherWasher
-
38732600030 ScrewScrew
-
3920002 Washer A5,3Washer A5,3
-
40517302836 Air Intake PlateAir Intake Plate
-
41605350268 Air intake foamAir intake foam
-
42517302024 RH Air Intake GrillRH Air Intake Grill
-
43517302025 LH Air Intake GrillLH Air Intake Grill
-
44605450267 Air intake foamAir intake foam
-
45517302043 Console NutConsole Nut
-
465447116 GasketGasket
-
4736002 RivetRivet
-
48517302286 Rubber StopperRubber Stopper
-
49517302129 Rope GuideRope Guide
-
505448263 R.H. SupportR.H. Support
-
505448264 L.H. SupportL.H. Support
-
5140030 Hex. screw M6 x 20Hex. screw M6 x 20
-
52605348609 Air intake plate, brake. Enduro 400 R.C._Enduro 550 R.C.Air intake plate, brake. Enduro 400 R.C._Enduro 550 R.C.
-
53414227300 ClipClip
-
54605349179 Heat protector. Enduro 550 R.C.Heat protector. Enduro 550 R.C.
