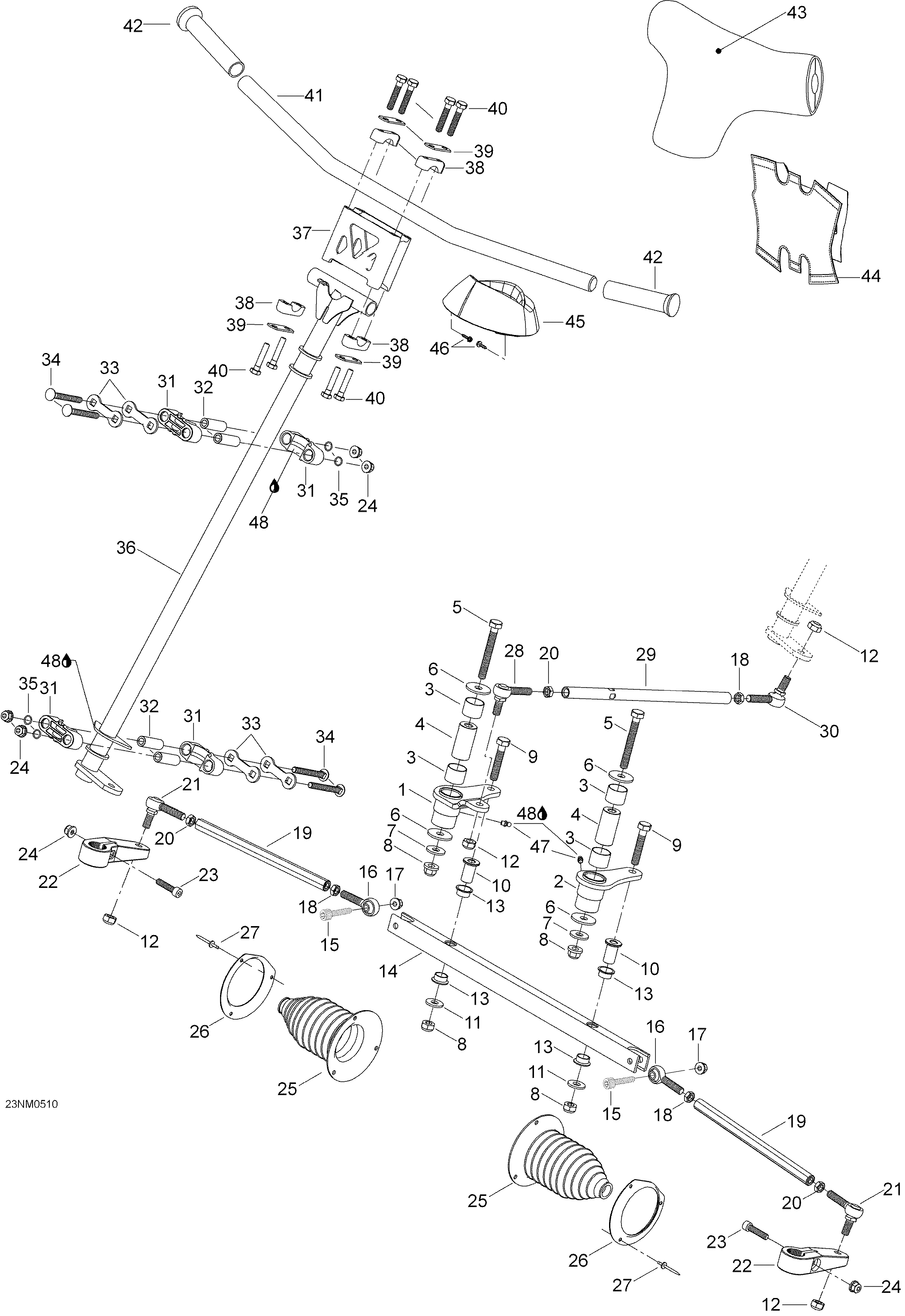

07- Steering System для BRP Lynx Enduro 550RC - 2005
-
№АртикулНазвание
-
1506151506 R.H. swivel armR.H. swivel arm
-
2506151623 L.H. swivel armL.H. swivel arm
-
3506149900 Swivel bushingSwivel bushing
-
4506150100 Swivel-pivotSwivel-pivot
-
540229 Hex. screw M10 x 80Hex. screw M10 x 80
-
620080 WasherWasher
-
720101 Washer, hardened M10Washer, hardened M10
-
833012 Elastic stop nut M10Elastic stop nut M10
-
940018 Hex. screw M10 x 55Hex. screw M10 x 55
-
10506147300 CushionCushion
-
1120028 WasherWasher
-
1233023 Nut elastic M10Nut elastic M10
-
13506150200 Swivel-bushingSwivel-bushing
-
14605348756 Bar-swivelBar-swivel
-
1540395 Allen screw M8 x 35Allen screw M8 x 35
-
16506151496 Joint ball L.H.Joint ball L.H.
-
1733011 Elastic stop nut M8Elastic stop nut M8
-
18732610011 L.H. jam nut M10L.H. jam nut M10
-
195346200 Tie RodTie Rod
-
20732610010 R.H. jam nut M10R.H. jam nut M10
-
21506151491 R.H. Joint ballR.H. Joint ball
-
22506145800 R.H. steering armR.H. steering arm
-
22506145900 L.H. steering armL.H. steering arm
-
2340843 Socket head screw M8 x 35Socket head screw M8 x 35
-
2433201 Elastic flanged nut M8Elastic flanged nut M8
-
25570070500 Tie-rod capTie-rod cap
-
265347006 Retainer ringRetainer ring
-
2736009 RivetRivet
-
28506151492 Joint ball, R.H.Joint ball, R.H.
-
29506151375 Inside tie-rodInside tie-rod
-
30506151495 Joint ball L.H.Joint ball L.H.
-
31506150400 Half housingHalf housing
-
32506150500 Housing bushingHousing bushing
-
33506150600 Stopper plateStopper plate
-
34207787044 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
35506151140 O-ringO-ring
-
36506151488 Main tubeMain tube
-
37506151413 ExtensionExtension
-
38506151622 Steering supportSteering support
-
39506151196 ReinforcementReinforcement
-
40250000074 Screw M8 x 40Screw M8 x 40
-
41605249130 Handle barHandle bar
-
425340464 GripGrip
-
43506151509 FoamFoam
-
44605251797 CoverCover
-
45506151514 Collar, consoleCollar, console
-
46732601210 Self tapping screwSelf tapping screw
-
4734011 Grease fittingGrease fitting
-
48413711500 Synthetic greaseSynthetic grease
