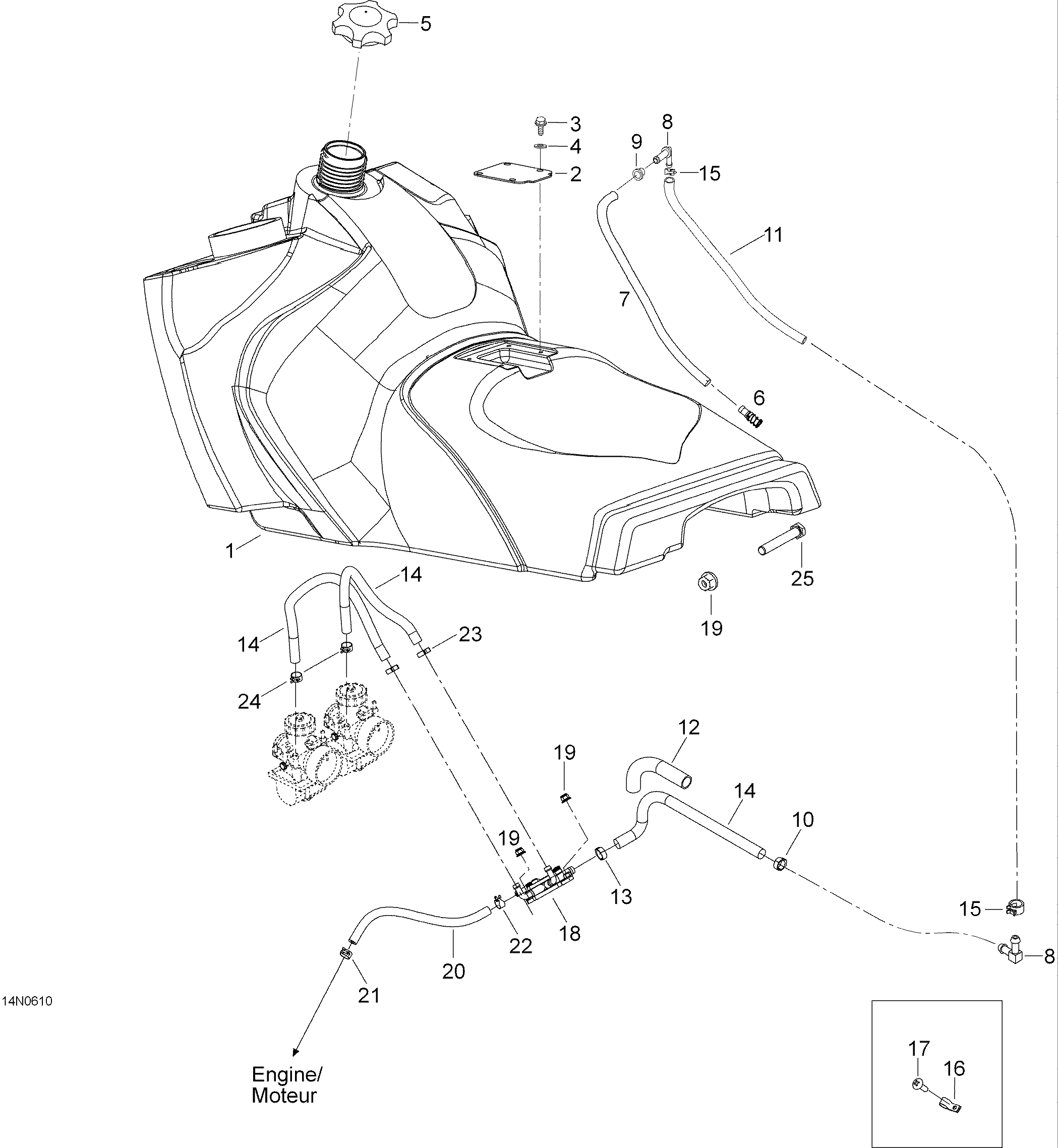

02- Fuel System для BRP Lynx Rave N-duro 550 F - 2006
-
№АртикулНазвание
-
1605253293 Fuel tankFuel tank
-
2605353106 Support palateSupport palate
-
3605640014 Socket head screw M5 x 10Socket head screw M5 x 10
-
420002 Washer A5,3Washer A5,3
-
5709000059 CapCap
-
6414872100 Fuel filterFuel filter
-
739048 HoseHose
-
85341709 Angle fittingAngle fitting
-
928037 GrommetGrommet
-
10605627003 ClampClamp
-
11513033027 HoseHose
-
1227127 TubingTubing
-
13513032979 ClampClamp
-
14513033022 HoseHose
-
15414655700 ClampClamp
-
1627051 ClipClip
-
1740870 Self tapping screwSelf tapping screw
-
18403901813 Fuel pumpFuel pump
-
1933200 Elastic flanged nut M6Elastic flanged nut M6
-
2039001 HoseHose
-
21414420700 ClampClamp
-
22414415200 ClampClamp
-
23414655700 ClampClamp
-
24605627005 ClampClamp
-
2540031 Screw M6 x 25Screw M6 x 25
