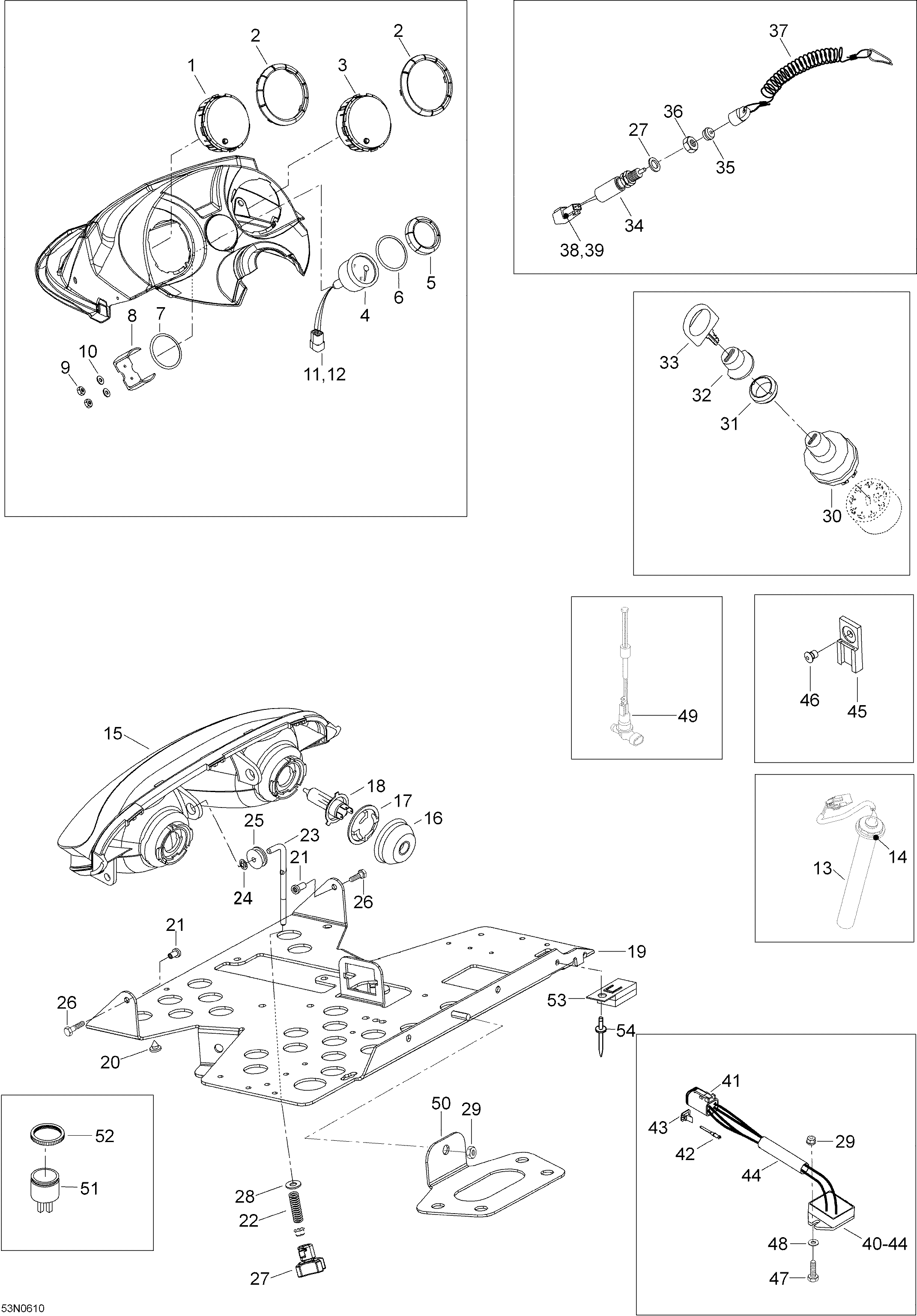

10- Electrical System для BRP Lynx Rave N-duro 550 F - 2006
-
№АртикулНазвание
-
1515176301 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515176303 TachometerTachometer
-
4515175529 Fuel gaugeFuel gauge
-
5515175711 Gauge ringGauge ring
-
6517258600 RingRing
-
7414807200 O-ringO-ring
-
8414806600 Case holderCase holder
-
933008 Elastic stop nut M4Elastic stop nut M4
-
1020037 Washer A4,3Washer A4,3
-
1142269 Male connector housing (6 circuits)Male connector housing (6 circuits)
-
12605642628 Male connectorMale connector
-
13605253587 Fuel censorFuel censor
-
14293720058 GrommetGrommet
-
15515176311 Halogen headlamp ass'y. Includes 15 to 18Halogen headlamp ass'y. Includes 15 to 18
-
16410607100 CoverCover
-
17410608300 Bulp holderBulp holder
-
18410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
19605253348 Headlamp supportHeadlamp support
-
20605452114 PluggPlugg
-
21250100018 Well-nutWell-nut
-
22415100600 SpringSpring
-
23517295800 Adjuster RodAdjuster Rod
-
24732610072 Nut PushNut Push
-
25415100800 GrommetGrommet
-
2640231 Hex. screw M5 x 30Hex. screw M5 x 30
-
27515175975 KnobKnob
-
2820003 Washer A6,4Washer A6,4
-
2933010 Elastic stop nut M6Elastic stop nut M6
-
3042019 Ignition switchIgnition switch
-
31410112100 NutNut
-
32570013700 Boot switchBoot switch
-
33414991700 Blank keyBlank key
-
34515175653 Emergency switchEmergency switch
-
35570151100 CapCap
-
36515145900 Nut. Includes 32 to 34Nut. Includes 32 to 34
-
37515151500 Emergency switch lockEmergency switch lock
-
38605642628 Male connectorMale connector
-
3942608 Male connector housingMale connector housing
-
40515176188 Voltage regulator. Includes 40 to 44Voltage regulator. Includes 40 to 44
-
41278001477 Male terminal housingMale terminal housing
-
42515175568 Male terminalMale terminal
-
43278001478 Male lockMale lock
-
44710000497 TubingTubing
-
45515175917 ClipClip
-
4636005 RivetRivet
-
4740031 Screw M6 x 25Screw M6 x 25
-
4820009 Washer A6.4Washer A6.4
-
49605452095 Oil sensorOil sensor
-
50605454122 SupportSupport
-
51515176035 HornHorn
-
52414805101 Ring nutRing nut
-
5342272 Support, fuse housingSupport, fuse housing
-
5436491 RivetRivet
