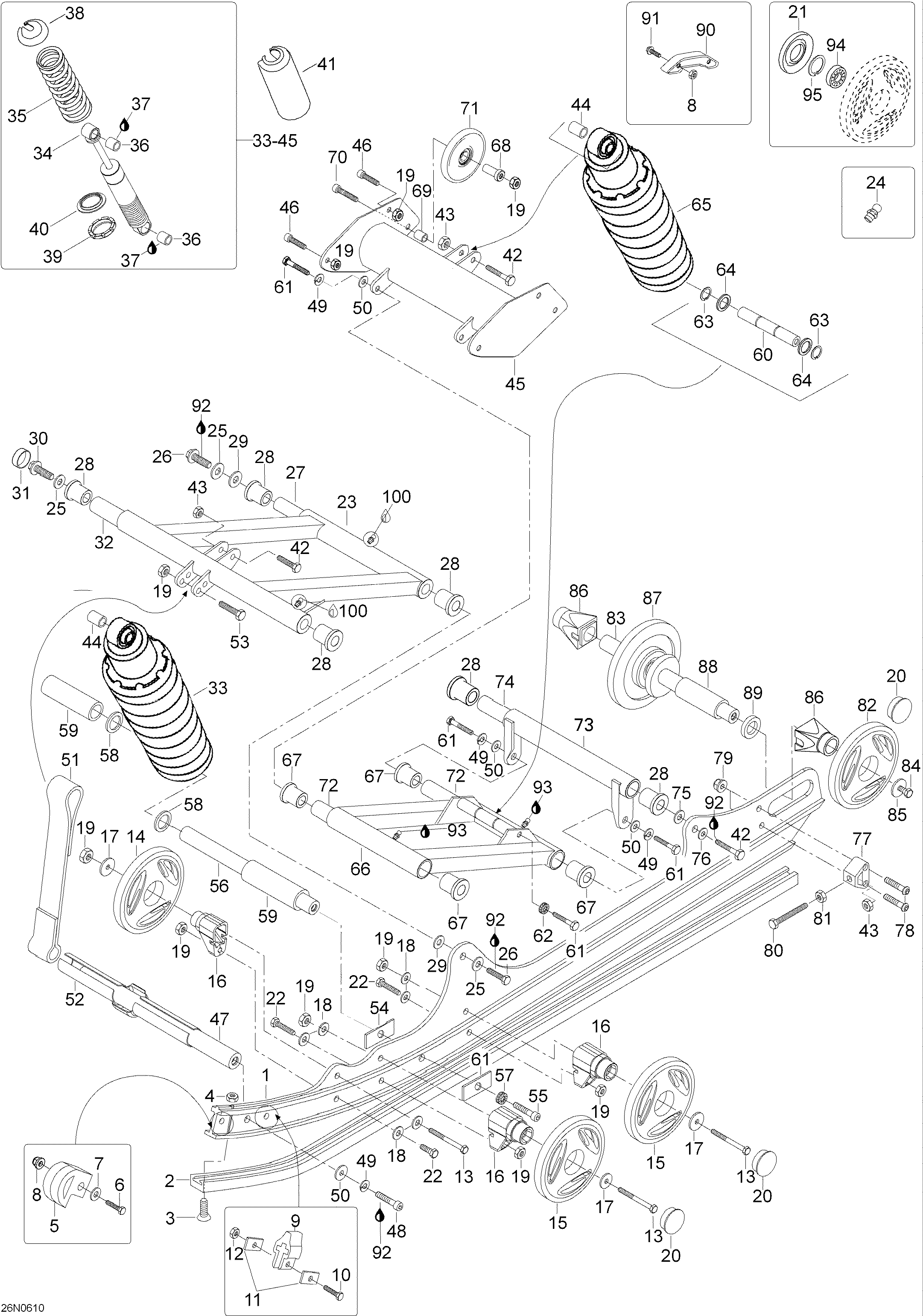

08- Rear Suspension для BRP Lynx Rave N-duro 550 F - 2006
-
№АртикулНазвание
-
1605253577 RunnerRunner
-
2605351309 ShoeShoe
-
340059 Socket head screw M6 x 60Socket head screw M6 x 60
-
433010 Elastic stop nut M6Elastic stop nut M6
-
5605348954 Runner protectorRunner protector
-
640031 Hex. screw M6 x 25Hex. screw M6 x 25
-
720003 Washer A6,4Washer A6,4
-
833200 Elastic flanged nut M6Elastic flanged nut M6
-
95442328 Rubber stopperRubber stopper
-
1040032 Hex. screw M6 x 30Hex. screw M6 x 30
-
11548470 WasherWasher
-
1233010 Elastic stop nut M6Elastic stop nut M6
-
1340089 Hex. screw M8 x 75Hex. screw M8 x 75
-
14503190577 Idler wheel, (141)Idler wheel, (141)
-
15503190751 Idler wheel, (141)Idler wheel, (141)
-
16605451906 SupportSupport
-
17211200041 Washer M8Washer M8
-
1820104 Washer, hardened M8Washer, hardened M8
-
1933011 Elastic stop nut M8Elastic stop nut M8
-
20570063600 ProtectorProtector
-
21503190434 Labyrinth sealLabyrinth seal
-
2240037 Hex. screw M8 x 25Hex. screw M8 x 25
-
235145588 Front armFront arm
-
2434011 Grease nippleGrease nipple
-
2520090 WasherWasher
-
2640099 Hex. screw M12 x 45Hex. screw M12 x 45
-
27605352383 ShaftShaft
-
2831024 CushionCushion
-
2920040 WasherWasher
-
3040243 Hex. screw M12 x 60Hex. screw M12 x 60
-
315448025 CapCap
-
325346135 ShaftShaft
-
33605353744 Shock ass'y, front arm. Includes 34 to 40Shock ass'y, front arm. Includes 34 to 40
-
3423223 Shock, front armShock, front arm
-
34605623005 Shock, rear armShock, rear arm
-
3525062 Spring, front armSpring, front arm
-
3525055 Spring, rear armSpring, rear arm
-
3631094 CushionCushion
-
37320006 Loctite 641, 50mlLoctite 641, 50ml
-
385346750 Spring stopperSpring stopper
-
39230048 CamCam
-
40230049 Spring guideSpring guide
-
415346754 ProtectorProtector
-
4240016 Hex. screw M10 x 45Hex. screw M10 x 45
-
4333012 Elastic stop nut M10Elastic stop nut M10
-
445446652 SleeveSleeve
-
45605253606 Upper armUpper arm
-
4640351 Socket head screw M8 x 20Socket head screw M8 x 20
-
475343471 ShaftShaft
-
4840134 Socket head screw M10 x 45Socket head screw M10 x 45
-
4920047 Lock washer 10mmLock washer 10mm
-
5020105 Washer, hardened, 10mmWasher, hardened, 10mm
-
51605449385 Stopper strapStopper strap
-
52605349381 LimiterLimiter
-
5340008 Hex. screw M8 x 45Hex. screw M8 x 45
-
54605449294 Support plateSupport plate
-
5540371 Socket head screw M12 x 55Socket head screw M12 x 55
-
56605350690 ShaftShaft
-
5720074 Lock washer 12mmLock washer 12mm
-
5831013 ShimShim
-
59605349896 SleeveSleeve
-
60605451897 ShaftShaft
-
6140014 Hex. screw M10 x 40Hex. screw M10 x 40
-
6220068 Lock washer 10mmLock washer 10mm
-
6331007 CirclipCirclip
-
6431091 ShimShim
-
65605354190 Shock ass'y, rear arm. Includes 33 to 45Shock ass'y, rear arm. Includes 33 to 45
-
66605349313 Rear armRear arm
-
6731027 CushionCushion
-
685446700 SleeveSleeve
-
695446701 SleeveSleeve
-
70605640005 Socket head screw M8 x 80Socket head screw M8 x 80
-
7146027 Idler wheelIdler wheel
-
725346865 ShaftShaft
-
735345535 Rear armRear arm
-
745346900 ShaftShaft
-
7520116 WasherWasher
-
76512056700 Lock washerLock washer
-
775341633 TensionerTensioner
-
7840392 Socket head screw M8 x 45Socket head screw M8 x 45
-
7933201 Elastic flanged nut M8Elastic flanged nut M8
-
8040239 Hex. screw M10 x 100Hex. screw M10 x 100
-
8133004 Nut M10Nut M10
-
82503190752 Idler fheel (180mm)Idler fheel (180mm)
-
83503190429 ShaftShaft
-
8440050 Hex. screw M10 x 35Hex. screw M10 x 35
-
85503190439 WasherWasher
-
86503190428 SleeveSleeve
-
87503190395 Idler wheel (180mm)Idler wheel (180mm)
-
88503190430 SleeveSleeve
-
89503190432 SleeveSleeve
-
905343191 Slide partSlide part
-
9140064 Locking screw M6 x 40Locking screw M6 x 40
-
92293800005 Loctite 271, 10mlLoctite 271, 10ml
-
93413711500 Synthetic greaseSynthetic grease
-
94503190795 Ball bearingBall bearing
-
95371901700 CirclipCirclip
-
100293550033 Synthetic grease, 400Synthetic grease, 400
