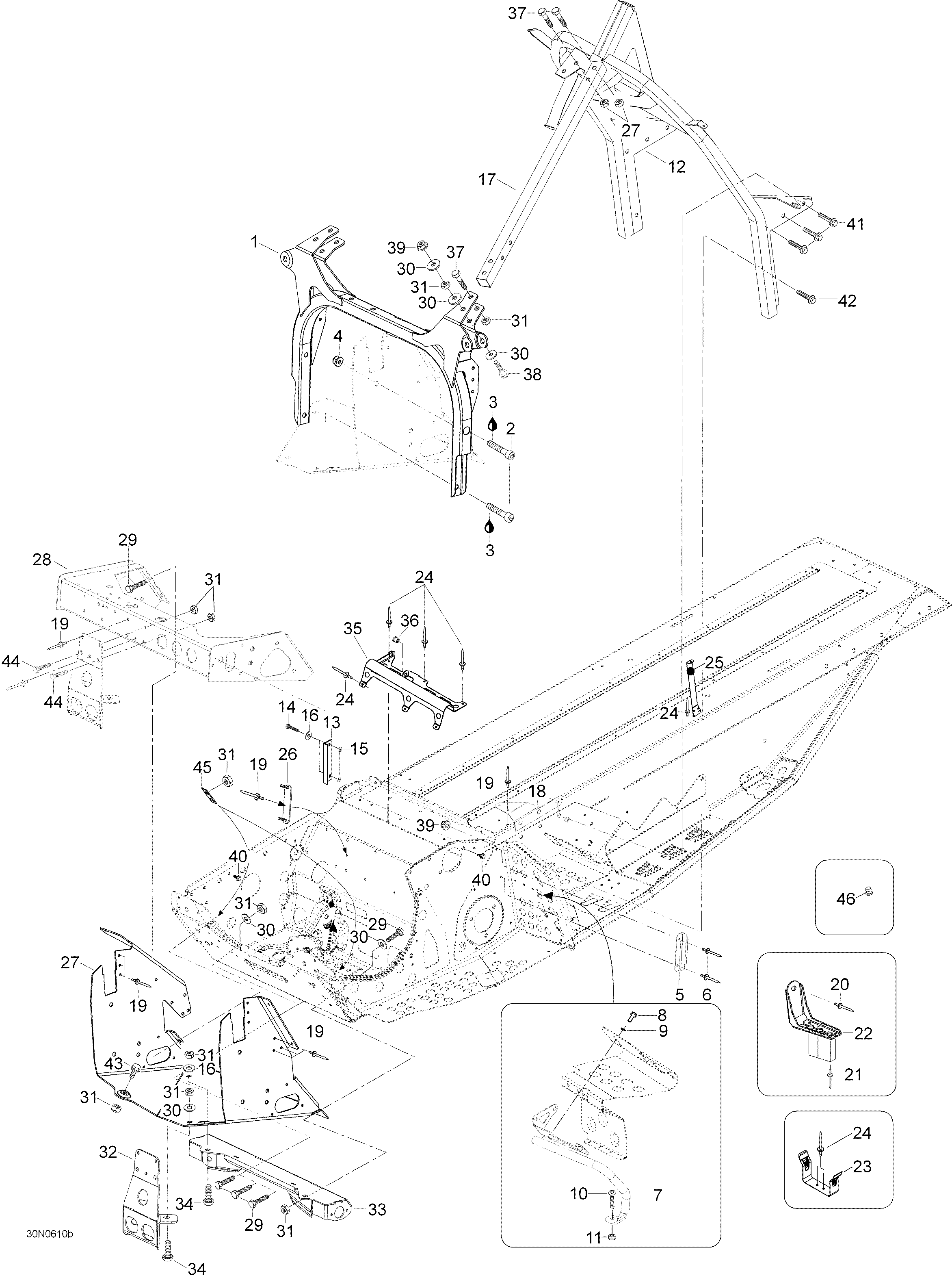

09- Frame And Components для BRP Lynx Rave N-duro 550 F - 2006
-
№АртикулНазвание
-
1605253709 SupportSupport
-
240810 Socket head screw M8 x 20Socket head screw M8 x 20
-
3293800060 Liima Loctite 243 50mlLiima Loctite 243 50ml
-
433201 Elastic flanged nut M8Elastic flanged nut M8
-
5518317504 Cable protectorCable protector
-
6
-
7605351595 R.H. Toe hold supportR.H. Toe hold support
-
7605351594 L.H. Toe hold supportL.H. Toe hold support
-
840381 Socket head screw M6 x 20Socket head screw M6 x 20
-
920117 WasherWasher
-
1040399 Socket head screw M8 x 16Socket head screw M8 x 16
-
1133011 Elastic stop nut M8Elastic stop nut M8
-
12605250887 Handle supportHandle support
-
13605453552 BracketBracket
-
1440030 Screw M6 x 20Screw M6 x 20
-
1533200 Elastic flanged nut M6, NylockElastic flanged nut M6, Nylock
-
16
-
17605353547 Side barSide bar
-
18605353555 L.H. BracketL.H. Bracket
-
18605353556 R.H. BracketR.H. Bracket
-
1936108 RivetRivet
-
2036489 RivetRivet
-
21605636005 RivetRivet
-
22605353939 R.H. Side bracketR.H. Side bracket
-
22605353938 L.H. Side bracketL.H. Side bracket
-
23518322726 PlatePlate
-
2436083 RivetRivet
-
25605351613 R.H. Steel stripR.H. Steel strip
-
25605351612 L.H. Steel stripL.H. Steel strip
-
26518324312 Bracket, fuel pumpBracket, fuel pump
-
27605253545 Front cross memberFront cross member
-
28605353548 Front supportFront support
-
2940037 Screw M8 x 25Screw M8 x 25
-
3020010 Washer A8,4Washer A8,4
-
3133011 Elastic stop nut M8Elastic stop nut M8
-
32605253612 Subframe supportSubframe support
-
33605253670 SubframeSubframe
-
3440058 Locking screw M8 x 20Locking screw M8 x 20
-
35518323532 Air intake supportAir intake support
-
3636086 Rivet nut M6Rivet nut M6
-
3740008 Screw M8 x 45Screw M8 x 45
-
3840011 Screw M8 x 60Screw M8 x 60
-
3933201 Elastic flanged nut M8Elastic flanged nut M8
-
4040327 Screw M6 x 12Screw M6 x 12
-
41605640008 Screw M8 x 20Screw M8 x 20
-
4240336 Screw M8 x 20Screw M8 x 20
-
4340386 Screw M8 x 30Screw M8 x 30
-
4440030 Screw M6 x 20Screw M6 x 20
-
45605452373 WasherWasher
-
46518321954 PlugPlug
