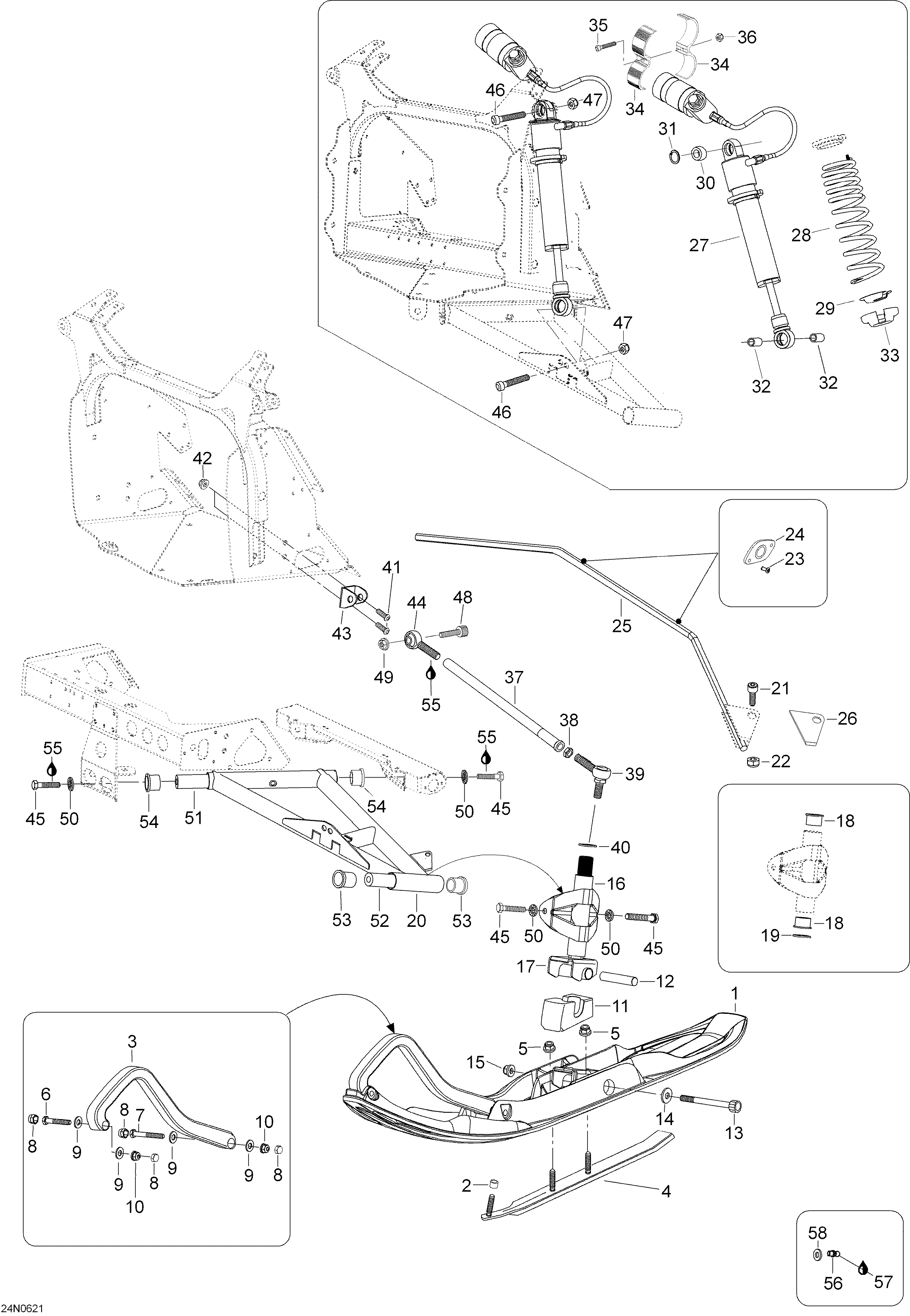

07- Front Suspension And Ski для BRP Lynx Rave RC 800 PT - 2006
-
№АртикулНазвание
-
1605153720 CTRL-SkiCTRL-Ski
-
2605454185 SleeveSleeve
-
3505070917 Plastic handle, yellowPlastic handle, yellow
-
4619400005 Runner ass'y. Includes 4 to 5Runner ass'y. Includes 4 to 5
-
533074 Elastic flanged nut M10Elastic flanged nut M10
-
640009 Hex. screw M8 x 50Hex. screw M8 x 50
-
740264 Hex. screw M8 x 90Hex. screw M8 x 90
-
828056 CapCap
-
920004 Washer 8mmWasher 8mm
-
1033011 Elastic stop nut M8Elastic stop nut M8
-
11570070400 Stopper-skiStopper-ski
-
12506133300 SpacerSpacer
-
1340391 Socket head screw M10 x 130Socket head screw M10 x 130
-
1420105 Washer 10mmWasher 10mm
-
1533074 Elastic flanged nut M10Elastic flanged nut M10
-
16605354276 Skilegtube, Full MoonSkilegtube, Full Moon
-
175245502 Ski legSki leg
-
18505070003 CushionCushion
-
19505070004 WasherWasher
-
20605252085 L.H. Lower armL.H. Lower arm
-
20605252086 R.H. Lower armR.H. Lower arm
-
21605640001 Socket head screw M8 x 35Socket head screw M8 x 35
-
2233010 Elastic stop nut M6Elastic stop nut M6
-
2336103 RivetRivet
-
24605452484 BushingBushing
-
25605252074 StabilisatorStabilisator
-
26605354025 SliderSlider
-
-605352716 R.H. Shock ass'y, ski. Includes 27 to 33R.H. Shock ass'y, ski. Includes 27 to 33
-
-605352715 L.H. Shock ass'y, ski. Includes 27 to 33L.H. Shock ass'y, ski. Includes 27 to 33
-
2723219 R.H.ShockR.H.Shock
-
2723220 L.H.ShockL.H.Shock
-
2825069 SpringSpring
-
29505071199 Spring guideSpring guide
-
30414562900 Ball jointBall joint
-
31371910600 CirclipCirclip
-
32506120200 SleeveSleeve
-
33505071195 Spring StopperSpring Stopper
-
34605352258 Reservoir bracketReservoir bracket
-
3540044 Socket head screw M6 x 30Socket head screw M6 x 30
-
3633010 Elastic stop nut M6Elastic stop nut M6
-
37605352656 Upper armUpper arm
-
3833036 Nut M12Nut M12
-
3931092 Ball jointBall joint
-
4020074 Lock washer M12Lock washer M12
-
4140344 Socket head screw M8 x 25Socket head screw M8 x 25
-
4233201 Elastic flanged nut M8Elastic flanged nut M8
-
43605452346 BracketBracket
-
4431095 Ball jointBall joint
-
45605640002 Hex. screw M10 x 40Hex. screw M10 x 40
-
4640852 Socket head screw M10 x 55Socket head screw M10 x 55
-
4733012 Elastic stop nut M10Elastic stop nut M10
-
4840138 Socket head screw M12 x 40Socket head screw M12 x 40
-
4933013 Elastic stop nut M12Elastic stop nut M12
-
5020068 Lock bricka 10mmLock bricka 10mm
-
51605353783 Shaft, lower armShaft, lower arm
-
52605349897 Shaft, lower armShaft, lower arm
-
5331027 CushionCushion
-
54605631001 CushionCushion
-
55293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
5634011 Grease fittingGrease fitting
-
57413711500 Synthetic greaseSynthetic grease
-
5820003 Washer A6,4Washer A6,4
