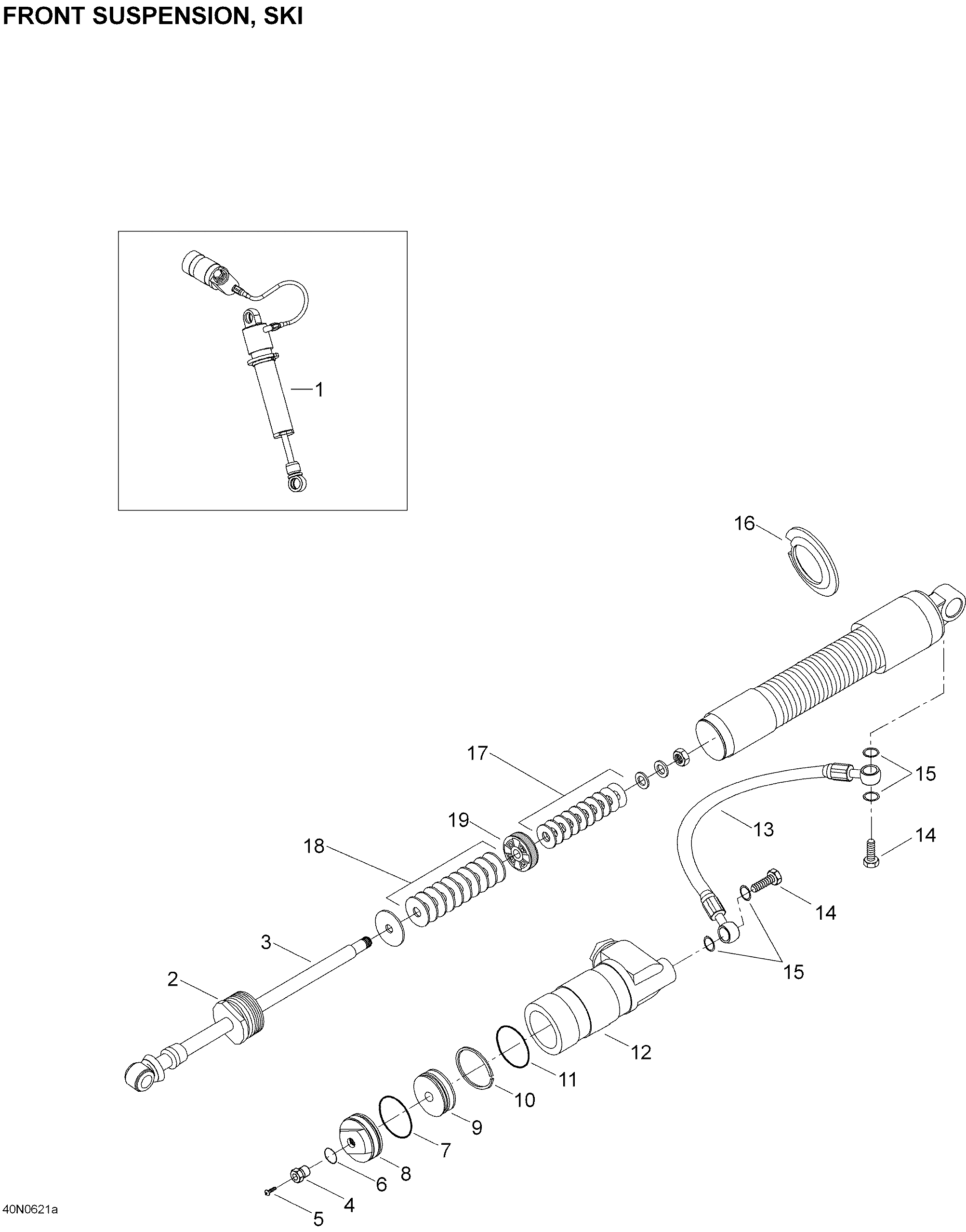

07- Take Apart Shock, Ski для BRP Lynx Rave RC 800 PT - 2006
-
№АртикулНазвание
-
123219 R.H.Shock. Includes 1 to 19R.H.Shock. Includes 1 to 19
-
123220 L.H.Shock. Includes 1 to 19L.H.Shock. Includes 1 to 19
-
2619300004 Seal carrier ass'ySeal carrier ass'y
-
3619300005 Rod assyRod assy
-
4505070398 Air valve ass'y. Includes 4 to 6Air valve ass'y. Includes 4 to 6
-
5505070399 ScrewScrew
-
6505070400 O-ringO-ring
-
7619300006 Ring stopRing stop
-
8619300009 GuideGuide
-
9619300007 Floating pistonFloating piston
-
10415093806 Piston ringPiston ring
-
11415093807 O-ringO-ring
-
12415128596 ReservoirReservoir
-
13619300008 HoseHose
-
14415093810 Banjo-boltBanjo-bolt
-
15415038700 WasherWasher
-
16415128598 Spring collarSpring collar
-
17415038800 Leaf valve 12x0.114Leaf valve 12x0.114
-
17414888339 Leaf valve 12x0.152Leaf valve 12x0.152
-
17414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
17414888337 Leaf valve 15x0.114Leaf valve 15x0.114
-
17414888336 Leaf valve 15x0.152Leaf valve 15x0.152
-
17414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
17414888334 Leaf valve 15x0.254Leaf valve 15x0.254
-
17415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
17414888333 Leaf valve 16x0.152Leaf valve 16x0.152
-
17414888332 Leaf valve 16x0.203Leaf valve 16x0.203
-
17414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
17230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
17414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
17414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
17230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
17414888328 Leaf valve 20x0.114Leaf valve 20x0.114
-
17414888327 Leaf valve 20x0.152Leaf valve 20x0.152
-
17414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
17230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
17230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
17414888325 Leaf valve 22x0.152Leaf valve 22x0.152
-
17414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
17230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
17230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
17230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
17230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
17230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
17414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
17414888322 Leaf valve 26x0.203Leaf valve 26x0.203
-
17415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
17230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
17414888321 Leaf valve 28x0.152Leaf valve 28x0.152
-
17230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
17414888320 Leaf valve 28x0.203Leaf valve 28x0.203
-
17414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
17414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
17415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
18415038800 Leaf valve 12x0.114Leaf valve 12x0.114
-
18414888339 Leaf valve 12x0.152Leaf valve 12x0.152
-
18414888338 Leaf valve 12x0.203Leaf valve 12x0.203
-
18414888337 Leaf valve 15x0.114Leaf valve 15x0.114
-
18414888336 Leaf valve 15x0.152Leaf valve 15x0.152
-
18414888335 Leaf valve 15x0.203Leaf valve 15x0.203
-
18414888334 Leaf valve 15x0.254Leaf valve 15x0.254
-
18415038900 Leaf valve 16x0.114Leaf valve 16x0.114
-
18414888333 Leaf valve 16x0.152Leaf valve 16x0.152
-
18414888332 Leaf valve 16x0.203Leaf valve 16x0.203
-
18414888331 Leaf valve 16x0.254Leaf valve 16x0.254
-
18230121 Leaf valve 17x0.203Leaf valve 17x0.203
-
18230015 Leaf valve 18x0.114Leaf valve 18x0.114
-
18414888330 Leaf valve 18x0.152Leaf valve 18x0.152
-
18414888329 Leaf valve 18x0.203Leaf valve 18x0.203
-
18230016 Leaf valve 18x0.254Leaf valve 18x0.254
-
18414888328 Leaf valve 20x0.114Leaf valve 20x0.114
-
18414888327 Leaf valve 20x0.152Leaf valve 20x0.152
-
18414888326 Leaf valve 20x0.203Leaf valve 20x0.203
-
18230017 Leaf valve 20x0.254Leaf valve 20x0.254
-
18230018 Leaf valve 22x0.114Leaf valve 22x0.114
-
18414888325 Leaf valve 22x0.152Leaf valve 22x0.152
-
18414888324 Leaf valve 22x0.203Leaf valve 22x0.203
-
18230019 Leaf valve 22x0.254Leaf valve 22x0.254
-
18230021 Leaf valve 24x0.114Leaf valve 24x0.114
-
18230022 Leaf valve 24x0.152Leaf valve 24x0.152
-
18230023 Leaf valve 24x0.203Leaf valve 24x0.203
-
18230024 Leaf valve 26x0.114Leaf valve 26x0.114
-
18414888323 Leaf valve 26x0.152Leaf valve 26x0.152
-
18414888322 Leaf valve 26x0.203Leaf valve 26x0.203
-
18415039000 Leaf valve 26x0.254Leaf valve 26x0.254
-
18230025 Leaf valve 28x0.114Leaf valve 28x0.114
-
18414888321 Leaf valve 28x0.152Leaf valve 28x0.152
-
18230026 Leaf valve 28x0.254Leaf valve 28x0.254
-
18414888320 Leaf valve 28x0.203Leaf valve 28x0.203
-
18414888319 Leaf valve 30x0.152Leaf valve 30x0.152
-
18414888318 Leaf valve 30 x 0.203Leaf valve 30 x 0.203
-
18415039100 Leaf valve 30x0.254Leaf valve 30x0.254
-
19230027 Piston, 1 slitsPiston, 1 slits
-
19414888305 Manta, 2 slitsManta, 2 slits
-
19230028 Piston, 3 slitsPiston, 3 slits
-
19414888306 Piston, 4 slitsPiston, 4 slits
