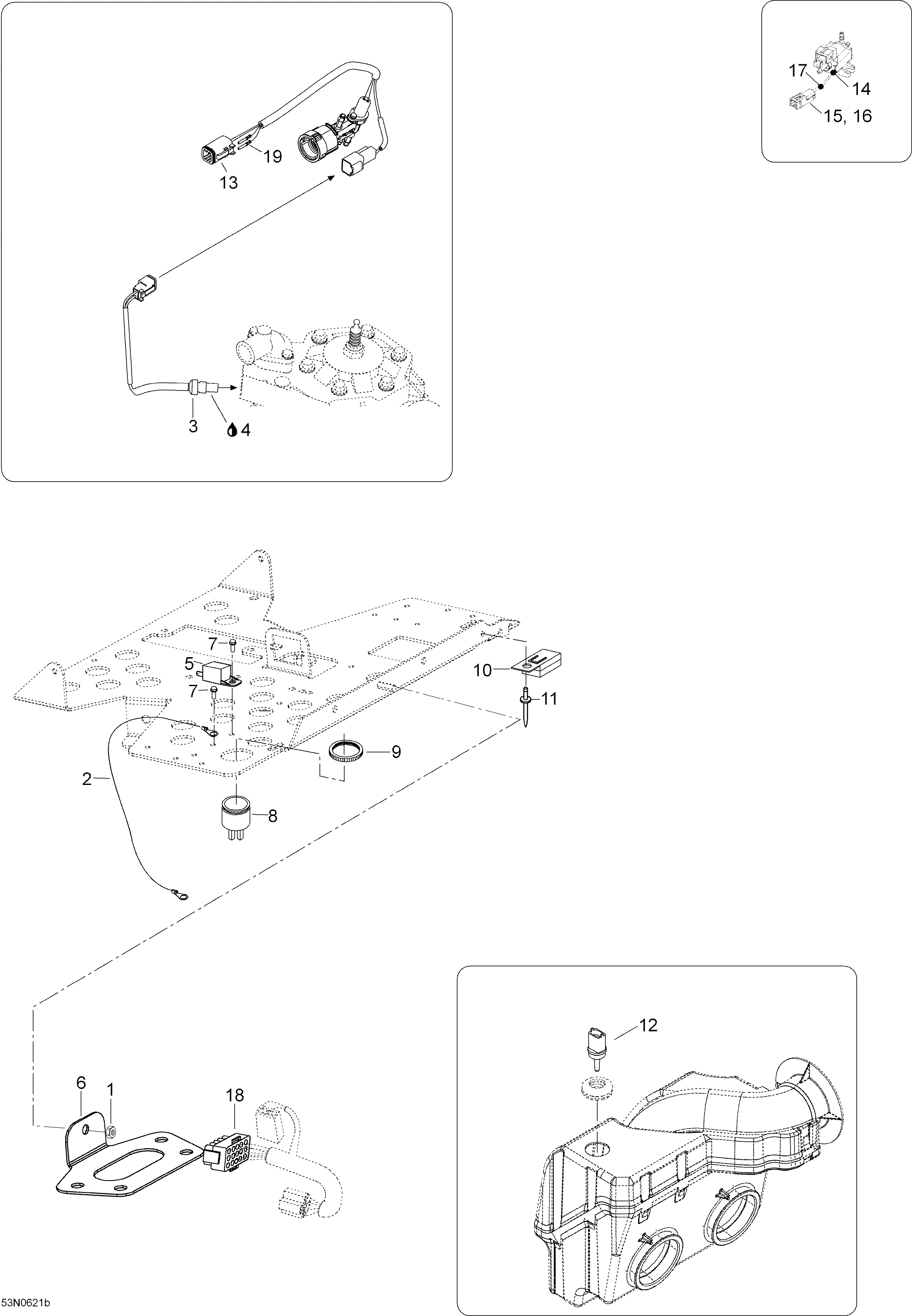

10- Electrical Accessories для BRP Lynx Rave RC 800 PT - 2006
-
№АртикулНазвание
-
133010 Elastic stop nut M6Elastic stop nut M6
-
2605153857 Ground wireGround wire
-
3515176043 Temperature sensorTemperature sensor
-
4293800018 Loctite 592, 50mlLoctite 592, 50ml
-
5410113200 RelayRelay
-
6605454122 SupportSupport
-
7210251680 Screw M5 x 16Screw M5 x 16
-
8515176035 HornHorn
-
9414805101 Ring nutRing nut
-
1042272 Support, fuse housingSupport, fuse housing
-
1136491 RivetRivet
-
12270600000 Air sensorAir sensor
-
13515176234 Connector housingConnector housing
-
14515176256 HeaterHeater
-
15515175654 Connector housingConnector housing
-
16515175232 ConnectorConnector
-
1742066 TubingTubing
-
1842617 Male connector housing (15 circuit)Male connector housing (15 circuit)
-
19278000632 Female connectorFemale connector
