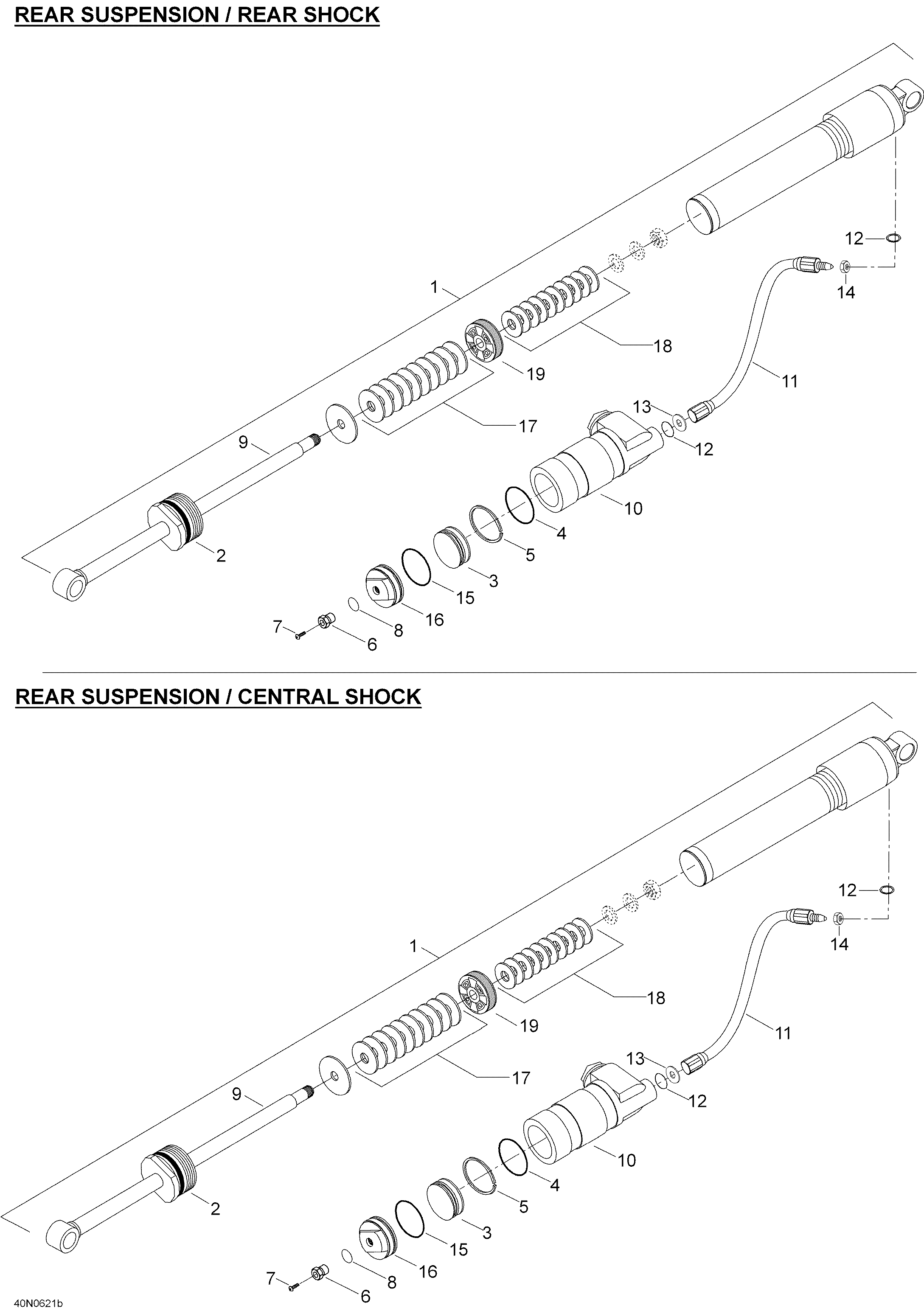

08- Take Apart Shock, Rear для BRP Lynx Rave RC 800 PT - 2006
-
№АртикулНазвание
-
123222 Shock, rear arm. Includes 1 to 19Shock, rear arm. Includes 1 to 19
-
123221 Shock, front arm. Includes 1 to 19Shock, front arm. Includes 1 to 19
-
2230060 Seal carrier assySeal carrier assy
-
3505071016 Floating pistonFloating piston
-
4415093807 O-ringO-ring
-
5415093806 Piston ringPiston ring
-
6505070398 Air valve ass'y. Includes 6 to 8Air valve ass'y. Includes 6 to 8
-
7505070399 ScrewScrew
-
8505070400 O-ringO-ring
-
9619300013 Rod ass'y (rear)Rod ass'y (rear)
-
9230047 Rod ass'y (center)Rod ass'y (center)
-
10619300002 Reservoir ass'yReservoir ass'y
-
11619300014 Hose ass'y (rear)Hose ass'y (rear)
-
11230111 Hose ass'y (center)Hose ass'y (center)
-
12619300003 O-ringO-ring
-
13230112 WasherWasher
-
15415093804 O-ringO-ring
-
16619300009 GuideGuide
-
17230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
17230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
17230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
17230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
17503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
17503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
17503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
17503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
17503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
17503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
17503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
17503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
17503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
17503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
17503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
17503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
17503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
17503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
17503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
17503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
17503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
17503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
17503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
17503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
17230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
17230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
17230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
17230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
17230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
17230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
17503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
17503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
17503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
17230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
17230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
17230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
17503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
17503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
17503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
18230029 Leaf valve 20x0.114Leaf valve 20x0.114
-
18230030 Leaf valve 20x0.152Leaf valve 20x0.152
-
18230031 Leaf valve 20x0.203Leaf valve 20x0.203
-
18230032 Leaf valve 20x0.254Leaf valve 20x0.254
-
18503189011 Leaf valve 22x0.114Leaf valve 22x0.114
-
18503189012 Leaf valve 22x0.152Leaf valve 22x0.152
-
18503189013 Leaf valve 22x0.203Leaf valve 22x0.203
-
18503189014 Leaf valve 22x0.254Leaf valve 22x0.254
-
18503189016 Leaf valve 24x0.114Leaf valve 24x0.114
-
18503189017 Leaf valve 24x0.152Leaf valve 24x0.152
-
18503189018 Leaf valve 24x0.203Leaf valve 24x0.203
-
18503189019 Leaf valve 24x0.254Leaf valve 24x0.254
-
18503189020 Leaf valve 24x0.305Leaf valve 24x0.305
-
18503189021 Leaf valve 26x0.114Leaf valve 26x0.114
-
18503189022 Leaf valve 26x0.152Leaf valve 26x0.152
-
18503189023 Leaf valve 26x0.203Leaf valve 26x0.203
-
18503189024 Leaf valve 26x0.254Leaf valve 26x0.254
-
18503189026 Leaf valve 28x0.114Leaf valve 28x0.114
-
18503189027 Leaf valve 28x0.152Leaf valve 28x0.152
-
18503189028 Leaf valve 28x0.203Leaf valve 28x0.203
-
18503189029 Leaf valve 28x0.254Leaf valve 28x0.254
-
18503189031 Leaf valve 30x0.114Leaf valve 30x0.114
-
18503189032 Leaf valve 30x0.152Leaf valve 30x0.152
-
18503189033 Leaf valve 30x0.203Leaf valve 30x0.203
-
18503189034 Leaf valve 30x0.254Leaf valve 30x0.254
-
18230082 Leaf valve 32x0.114Leaf valve 32x0.114
-
18230033 Leaf valve 34x0.114Leaf valve 34x0.114
-
18230034 Leaf valve 34x0.152Leaf valve 34x0.152
-
18230035 Leaf valve 34x0.203Leaf valve 34x0.203
-
18230036 Leaf valve 34x0.254Leaf valve 34x0.254
-
18230037 Leaf valve 36x0.114Leaf valve 36x0.114
-
18503189036 Leaf valve 36x0.152Leaf valve 36x0.152
-
18503189037 Leaf valve 36x0.203Leaf valve 36x0.203
-
18503189038 Leaf valve 36x0.254Leaf valve 36x0.254
-
18230040 Leaf valve 38x0.152Leaf valve 38x0.152
-
18230041 Leaf valve 38x0.203Leaf valve 38x0.203
-
18230042 Leaf valve 38x0.254Leaf valve 38x0.254
-
18503189039 Leaf valve 40x0.114Leaf valve 40x0.114
-
18503189040 Leaf valve 40x0.203Leaf valve 40x0.203
-
18503189041 Leaf valve 40x0.254Leaf valve 40x0.254
-
19230044 Piston 1.2 mmPiston 1.2 mm
-
19230038 Piston 1.7 mmPiston 1.7 mm
-
19230039 Piston 2.0 mmPiston 2.0 mm
-
19230110 Piston 2.2 mmPiston 2.2 mm
-
19230043 PistonPiston
