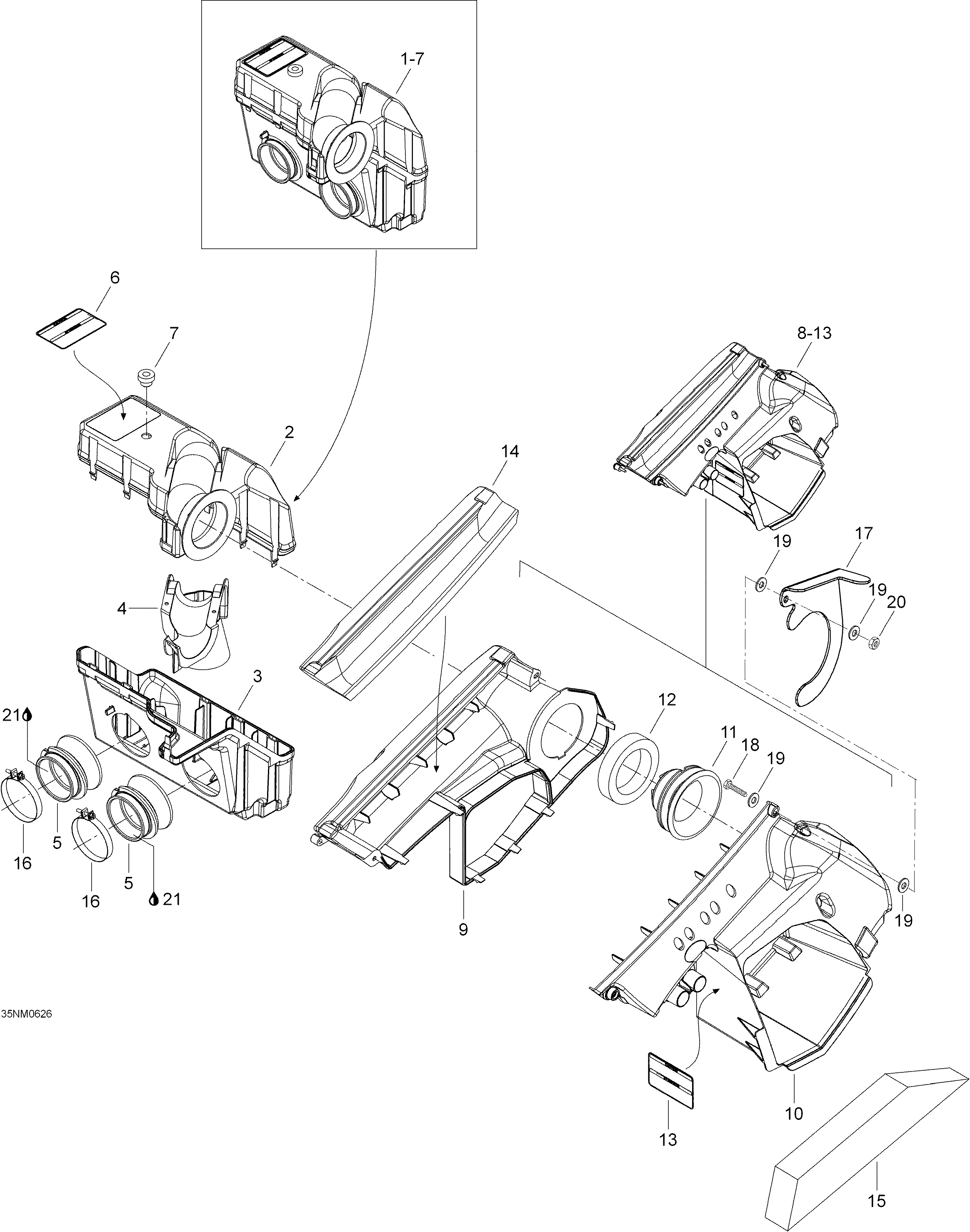

02- Air Silencer для BRP Lynx Rave Xtrim N-Duro 550F - 2006
-
№АртикулНазвание
-
1508000383 Air intake ass'y. Includes 1 to 7Air intake ass'y. Includes 1 to 7
-
6516002715 Warning labelWarning label
-
7513032908 GrommetGrommet
-
8605253727 Air intake ass'y. Includes 8 to 13Air intake ass'y. Includes 8 to 13
-
11508000240 GuideGuide
-
12508000199 Outer foamOuter foam
-
13516002715 Caution labelCaution label
-
14605254301 FilterFilter
-
15605354029 FilterFilter
-
16508000344 ClampClamp
-
17605351817 BracketBracket
-
1840083 Screw M6 x 30Screw M6 x 30
-
1920003 Washer A6,4Washer A6,4
-
2033010 Elastic stop nut M6Elastic stop nut M6
-
21413802900 Injection oil (12 x 1 L)Injection oil (12 x 1 L)
